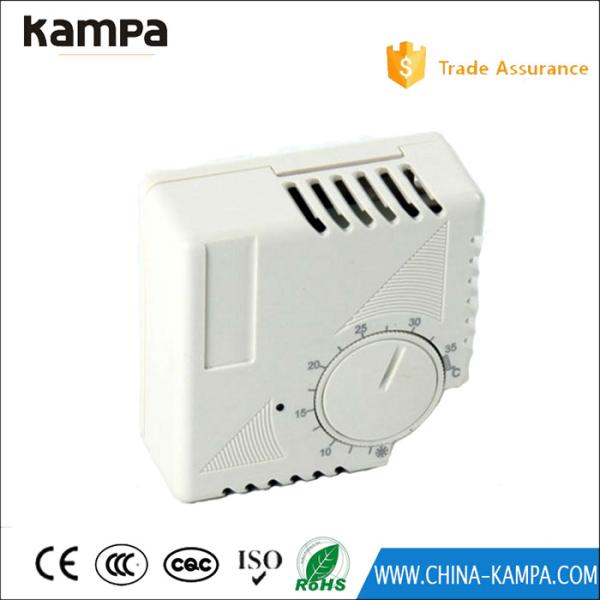

Clip fixing mechanical temperature sensitive thermostat
Clip fixing mechanical temperature sensitive thermostat
Clip fixing mechanical temperature sensitive thermostat
Clip fixing mechanical temperature sensitive thermostat
Clip fixing mechanical temperature sensitive thermostat
Clip fixing mechanical temperature sensitive thermostat
Clip fixing mechanical temperature sensitive thermostat
Clip fixing mechanical temperature sensitive thermostat
Specifications
Place of Origin :
Zhejiang, China
Brand Name :
Kampa
Model Number :
SP 7000
Product name :
Clip fixing mechanical temperature sensitive thermostat
Sensor element :
PTC
Service life :
> 100 000 cycles
Max. switching capacity :
28VDC, 16A
Contact type :
change-over
Mounting :
clip for 35mm DIN rail, EN 60715
Casing :
plastic according to UL94 V-0, light grey
Dimensions :
67 x 50 x 46mm
Protection type :
IP20
Operating / Storage humidity :
max. 90 % RH (non-condensing)
Packaging Details :
standard export cartons OR as customers' needs
Port :
Ningbo/Shanghai
Supply Ability :
100000 Piece/Pieces per Month
Price :
$3.56 - $4.71/Pieces
Description

Clip fixing mechanical temperature sensitive thermostat

1. Features

A. High DC breaking capacity.
B. Adjustable temperature
C. Low hysteresis;
D. Change-over contact;
E. Clip fixing.

2.Technical Data

Switch temperature differenceapprox. 3K
Sensor elementPTC
Contact typechange-over
Service life> 100 000 cycles
Max. switching capacity28VDC, 16A
Connection5-pole terminal, clamping torque 0.5Nm max.: rigid wire 2.5mm², stranded wire (with wire end ferrule) 1.5mm²
Mountingclip for 35mm DIN rail, EN 60715
Casingplastic according to UL94 V-0, light grey
Dimensions67 x 50 x 46mm
Weightapprox. 80g
Fitting positionvertical
Operating/Storage temperature0 to +60°C (+32 to +140°F) / -45 to +80°C (-49 to +176°F)
Operating / Storage humiditymax. 90 % RH (non-condensing)
Protection typeIP20

3.Product display

Clip fixing mechanical temperature sensitive thermostat

Packaging & Shipping

Clip fixing mechanical temperature sensitive thermostat

Company Information

Clip fixing mechanical temperature sensitive thermostat

Yueqing Kampa Electric Co.,Ltd. is Established in 1990.Has variety of goods ,such as Relay,Circuit breaker,Switches,Thermocouple,Thermostat,Temperature controller,Switch power supply,AVS,Heat sink,Heater,Distribution box,Junction box and so on.We are manufacturer and have ten years experience in Electrical industry.

Clip fixing mechanical temperature sensitive thermostat

Clip fixing mechanical temperature sensitive thermostat

Our Exhibitions

Our Exhibitions

Clip fixing mechanical temperature sensitive thermostat

FAQ

FAQ

Q: Are you manufacturer or Trade Company?
A: We are professional factory, founded in 2009.OEM is acceptable

Q: What's the order process?
A: Inquiry---provide us all clear requirements.
Quotation---official quotation form with all clear specifications.
Customization--- We offers ultimate customization and personalized solutions.
Sample ---Standard sample of our factory.
Payment terms--- T/T 30% in advanced, balanced before shipment.
Shipping--- by sea, air or courier. Detailed picture of package will be provided.

Q: What terms of payment you use?
A: T/T, PayPal, Western Union,L/C
