Hot Sale Cabinet Thermostat Temperature Controller KTS 011 NO 0-60C
Hot Sale Cabinet Thermostat Temperature Controller KTS 011 NO 0-60C
Hot Sale Cabinet Thermostat Temperature Controller KTS 011 NO 0-60C
Hot Sale Cabinet Thermostat Temperature Controller KTS 011 NO 0-60C
Hot Sale Cabinet Thermostat Temperature Controller KTS 011 NO 0-60C
Hot Sale Cabinet Thermostat Temperature Controller KTS 011 NO 0-60C
Hot Sale Cabinet Thermostat Temperature Controller KTS 011 NO 0-60C
Hot Sale Cabinet Thermostat Temperature Controller KTS 011 NO 0-60C
Hot Sale Cabinet Thermostat Temperature Controller KTS 011 NO 0-60C
Hot Sale Cabinet Thermostat Temperature Controller KTS 011 NO 0-60C
Hot Sale Cabinet Thermostat Temperature Controller KTS 011 NO 0-60C
Hot Sale Cabinet Thermostat Temperature Controller KTS 011 NO 0-60C
Specifications
Warranty :
1year
Customized support :
OEM
Place of Origin :
Zhejiang, China
Brand Name :
Kampa
Model Number :
KTS011
Product name :
Hot Sale Cabinet Thermostat Temperature Controller KTS011
Max. switching capacity :
250VAC, 10 (2) A
Switch temperature difference :
7K (± 4K tolerance)
Sensor element :
thermostatic bimetal
Contact resistance :
< 10mOhm
Dimensions :
60 *33 *43mm
Weight :
approx. 40g
Operating/Storage temperature :
-20 to +80°C (-4 to +176°F) / -45 to +80°C (-49 to +176°F)
Protection type :
IP20
Certificate :
CE ROHS
Packaging Details :
standard export cartons OR as customers' needs
Port :
Ningbo/Shanghai
Supply Ability :
100000 Piece/Pieces per Month
MOQ :
1000 Pieces
Price :
$1.05 - $2.00/Pieces
Description

Hot Sale Cabinet Thermostat Temperature Controller KT011

Product Description

Specification

The KTS011 is used for 2-position control with on/off output for the control the temperature by means of an NTC sensor placed externally or internally in the thermostat.The thermostat acquires the room temperature with its built-in sensor or floor sensor, and the heating contact will close when the room temperature falls below the selected setpoint.

Technical Date

Switch temperature

difference

7K (± 4K tolerance)

Sensor element

thermostatic bimetal

Contact type

snap-action contact

Contact resistance

< 10mO

Service life

> 100 000 cycles

Max. switching capacity

250VAC, 10 (2) A ,120VAC, 15 (2) A

DC 30W

EMC

acc. to EN 55014-1-2, EN 61000-3-2, EN 61000-3-3

Connection

2-pole terminal, clamping torque 0.5Nm max.: rigid wire 2.5mm², stranded wire (with wire end ferrule) 1.5mm²

Mounting

clip for 35mm DIN rail, EN50022 (or for exit filter EF 118 Series)

Casing

plastic according to UL94-HB, black

Dimensions

60 x 33 x 43mm

Weight

approx. 40g

Fitting position

variable

Operarting/Storage temperature

-45 to +80°C (-49 to +176°F)

Protection type

IP20

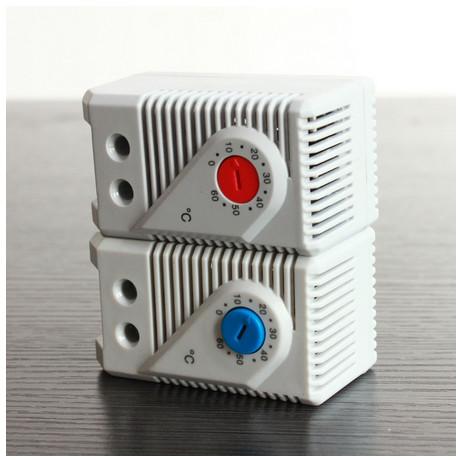

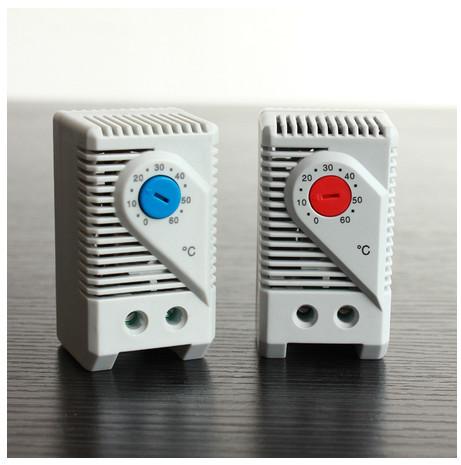

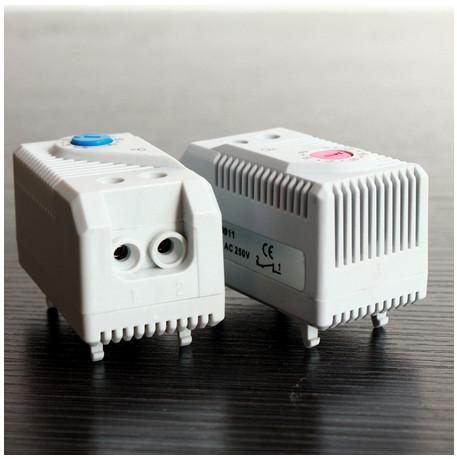

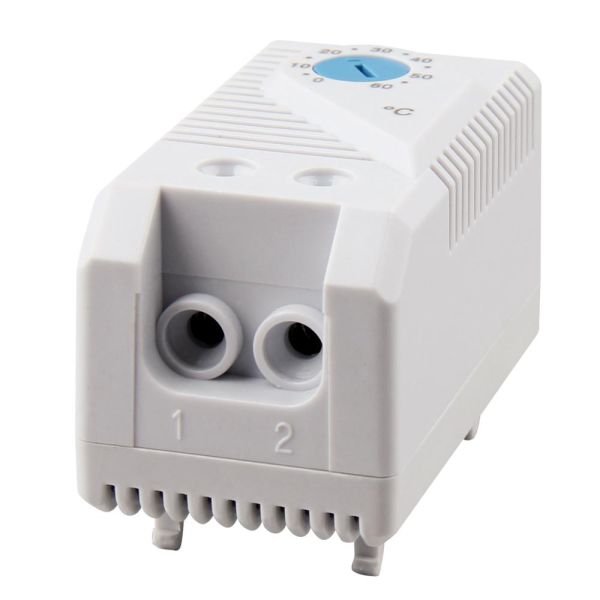

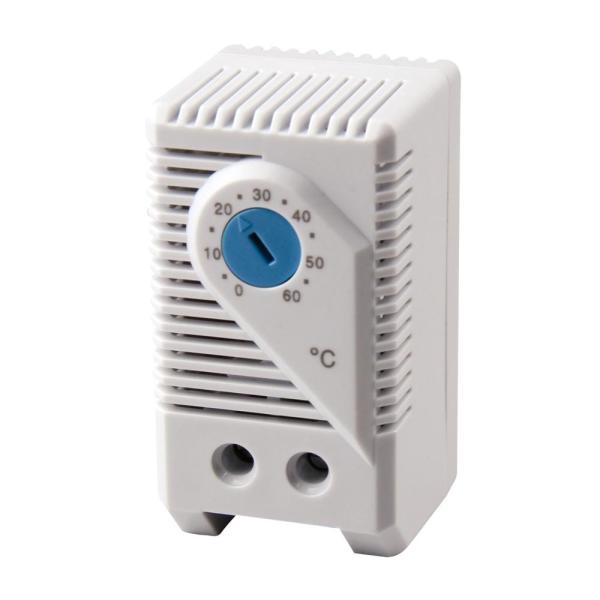

Detailed Pictures

Hot Sale Cabinet Thermostat Temperature Controller KTS 011 NO 0-60CHot Sale Cabinet Thermostat Temperature Controller KTS 011 NO 0-60CHot Sale Cabinet Thermostat Temperature Controller KTS 011 NO 0-60C

More products recommend

Hot Sale Cabinet Thermostat Temperature Controller KTS 011 NO 0-60C

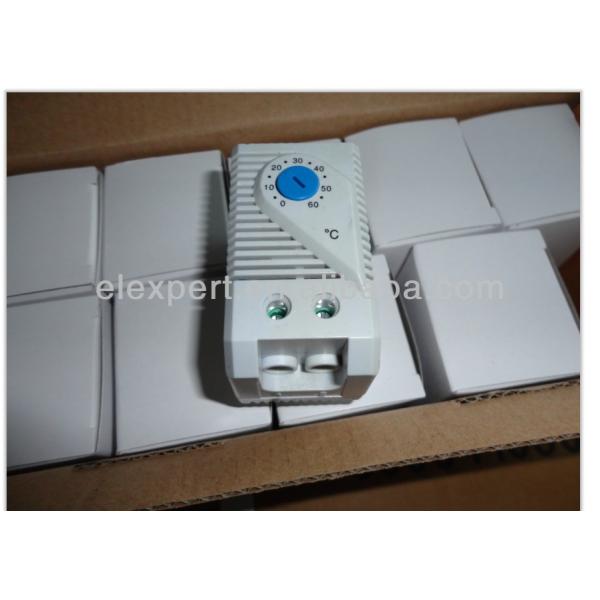

Packaging & Shipping

Hot Sale Cabinet Thermostat Temperature Controller KTS 011 NO 0-60C

Company Information

Hot Sale Cabinet Thermostat Temperature Controller KTS 011 NO 0-60C

Yueqing Kampa Electric Co.,Ltd. is Established in 1990.Has variety of goods ,such as Relay,Circuit breaker,Switches,Thermocouple,Thermostat,Temperature controller,Switch power supply,AVS,Heat sink,Heater,Distribution box,Junction box and so on.We are manufacturer and have ten years experience in Electrical industry.

Hot Sale Cabinet Thermostat Temperature Controller KTS 011 NO 0-60C

Hot Sale Cabinet Thermostat Temperature Controller KTS 011 NO 0-60C

Hot Sale Cabinet Thermostat Temperature Controller KTS 011 NO 0-60C

FAQ

FAQ

Q: Are you manufacturer or Trade Company?
A: We are professional factory, founded in 2009.OEM is acceptable

Q: What's the order process?
A: Inquiry---provide us all clear requirements.
Quotation---official quotation form with all clear specifications.
Customization--- We offers ultimate customization and personalized solutions.
Sample ---Standard sample of our factory.
Payment terms--- T/T 30% in advanced, balanced before shipment.
Shipping--- by sea, air or courier. Detailed picture of package will be provided.

Q: What terms of payment you use?
A: T/T, PayPal, Western Union,L/C
