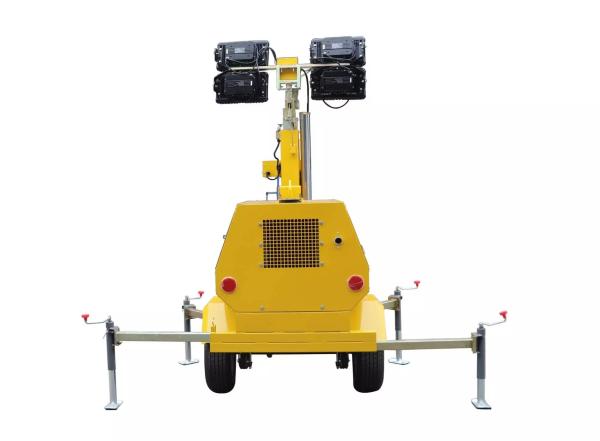

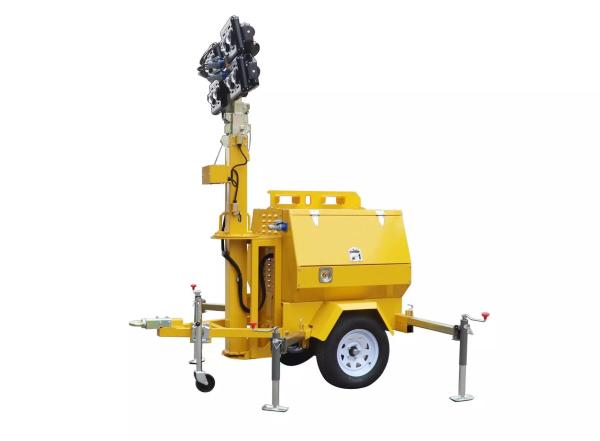

Lighting Tower I9L Series use LED Lights Electric Lifting for 9meters Height
Lighting Tower I9L Series use LED Lights Electric Lifting for 9meters Height
Lighting Tower I9L Series use LED Lights Electric Lifting for 9meters Height
Lighting Tower I9L Series use LED Lights Electric Lifting for 9meters Height
Lighting Tower I9L Series use LED Lights Electric Lifting for 9meters Height
Lighting Tower I9L Series use LED Lights Electric Lifting for 9meters Height
Lighting Tower I9L Series use LED Lights Electric Lifting for 9meters Height
Lighting Tower I9L Series use LED Lights Electric Lifting for 9meters Height
Lighting Tower I9L Series use LED Lights Electric Lifting for 9meters Height
Lighting Tower I9L Series use LED Lights Electric Lifting for 9meters Height
Specifications
Brand Name :
Menual Brand
Model Number :
I9L
Certification :
ISO9001
Place of Origin :
China
MOQ :
1 SET
Feul :
Diesel engine
Lamp type :
Metal Halide
Lamp power :
1200W
Mater Lifting :
Electric Lifting
Description
  • Features:
  • Electric lifting mast, 9m high
  • compact design, Less dismantled part during the shipment
  • Kubota engine from Japan and Mecc alte alternator from Italy
  • high quality superluminescent metal halida lamps

Basic Model i9L1200
Dimensions Length 2300mm
Width 1360mm
Height 2900mm
Loading container Height 2480mm
Full extending Height 9m
Genset power(1500/1800rpm-KW) 3/3.5
Gross weight 810kg
Engine Model Z482
Speed(rpm) 1500/1800
Number of cylinders 2
Engine characters 4 cycles, Water-cooled diesel
Combustion System Direct injection
Engine aspiration Naturally aspirated
Emission level (50Hz) Regular
Alternator Model Mecc alte LT3N-75/4
Frequency (HZ) 50/60
Rating voltage ( 50Hz) 220/110V (50HZ), 240/120 (60HZ) AC
Alternator insulation Class H
Alternator protection grade IP23
Mast & Lights Type of Lights LED Light
Light's fixture Rectagle
Luminous flux 132000(4*33000)
Number & power of lights 4×300W
Number of mast sections 6
Mast extension Electrical(Vertical, 3500 lb winch)
Mast rotation 359° Manual rotation with self locking
Light tilt Manually
Trailer Trailer suspension & axle with brakes Leaf springs axle without brake
Tow bar A style frame with a supporting jack
Stabilizing legs & number 4 pcs drawable bar with manual jacks
Wheel's rim size & tires 14" rim with regular tires
Tow adapter 2" ball coupler or 3" pintle ring
Tail lights Complex tail lights
Max towing speed 100km/h
Additional Features Fuel tank Type Rotational moulding plastic
Fuel tank capacity 76 liters
Operating hours with full load 59 /53 hours
Generator starting type or controler HGM1780(SMARTGEN)
Power outlet sockets 1
Max. against wind when fully extended 17.5 m/s
Acoustic pressure 77dB(A) at 7 meters away
Max. # of units loading in 40' high container (Some components would be detached) 9

Lighting Tower I9L Series use LED Lights Electric Lifting for 9meters HeightLighting Tower I9L Series use LED Lights Electric Lifting for 9meters Height
