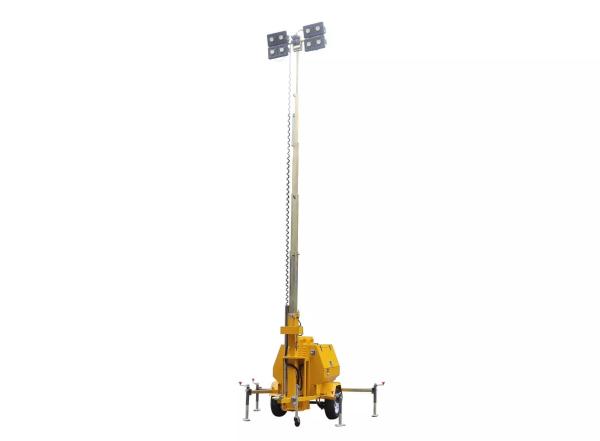

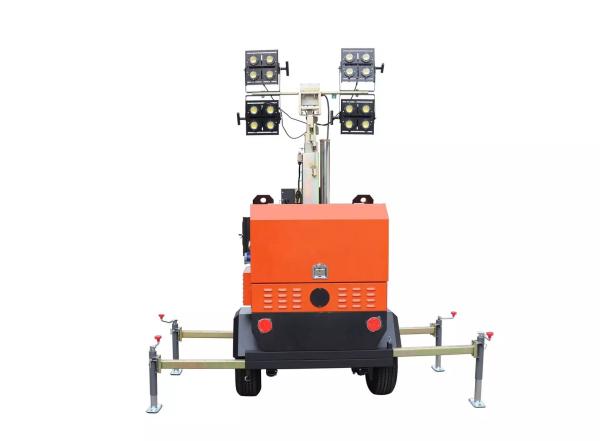

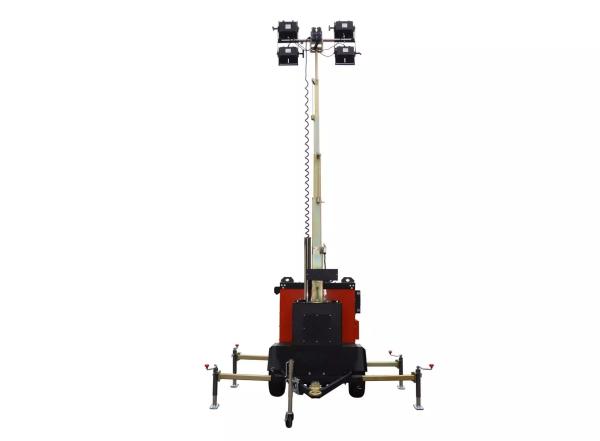

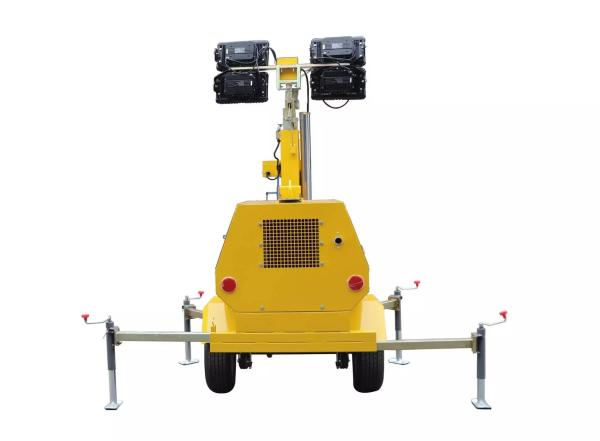

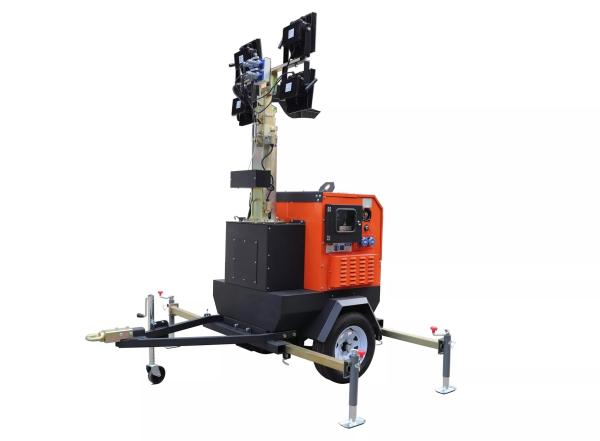

Lighting Tower I9TL Series use LED Lights Electric Lifting for 9meters Height
Lighting Tower I9TL Series use LED Lights Electric Lifting for 9meters Height
Lighting Tower I9TL Series use LED Lights Electric Lifting for 9meters Height
Lighting Tower I9TL Series use LED Lights Electric Lifting for 9meters Height
Lighting Tower I9TL Series use LED Lights Electric Lifting for 9meters Height
Lighting Tower I9TL Series use LED Lights Electric Lifting for 9meters Height
Lighting Tower I9TL Series use LED Lights Electric Lifting for 9meters Height
Lighting Tower I9TL Series use LED Lights Electric Lifting for 9meters Height
Lighting Tower I9TL Series use LED Lights Electric Lifting for 9meters Height
Lighting Tower I9TL Series use LED Lights Electric Lifting for 9meters Height
Lighting Tower I9TL Series use LED Lights Electric Lifting for 9meters Height
Lighting Tower I9TL Series use LED Lights Electric Lifting for 9meters Height
Specifications
Brand Name :
Menual Brand
Model Number :
I9TL
Certification :
ISO9001
Place of Origin :
China
MOQ :
1 SET
Feul :
Diesel engine
Lamp type :
Metal Halide
Lamp power :
4000W
Mater Lifting :
Electric Lifting
Description
  • Electric lifting mast, 9m high
  • compact design, 16 units/40HC, Less dismantled part during the shipment
  • Kubota engine from Japan and Mecc alte alternator from Italy
  • high quality superluminescent metal halida lamps
  • Basic Model I9T4000
    Dimensions Length 2420mm
    Width 1360mm
    Height 3050mm
    Loading container Height 2600
    Full extending Height 9m
    Genset power(1500/1800rpm-KW) 6.5/7.5
    Gross weight 850kg
    Engine Model D1105(Kubota)
    Speed(rpm) 1500/1800
    Number of cylinders 3
    Engine characters 4 cycles, Water-cooled diesel
    Combustion System E-TVS
    Engine aspiration Naturally aspirated
    Emission level (60Hz) Regular
    Alternator Model Mecc alte LT3N-130/4
    Frequency (HZ) 50/60
    Rating voltage ( 50Hz) 220/110V (50HZ), 240/120 (60HZ) AC
    Alternator insulation Class H
    Alternator protection grade IP23
    Mast & Lights Type of Lights Regular metal halide
    Light's fixture Oval
    Luminous flux (LM) 110000 LM/light
    Number & power of lights 4×1000W
    Number of mast sections 6
    Mast extension Electrical(Vertical, 3500 lb winch)
    Mast rotation 359° Manual rotation with self locking
    Light tilt Manually
    Trailer Trailer suspension & axle with brakes Leaf springs axle without brake
    Tow bar A style frame with a supporting jack
    Stabilizing legs & number 4 pcs drawable bar with manual jacks
    Wheel's rim size & tires 14" Sunraysia rim with regular tires
    Tow adapter 2" ball coupler or 3" pintle ring
    Tail lights Complex tail lights
    Max towing speed 80km/h
    Additional Features Fuel tank Type Rotational moulding plastic
    Fuel tank capacity 68 liters
    Operating hours with full load 28/23 hours
    Generator starting type or controler HGM1780(SMARTGEN)
    Power outlet sockets 1 unit of Euro standard 16A/220V single phase power outlet socket
    Max. against wind when fully extended 17.5m/s
    Acoustic pressure 72dB(A) at 7 meters away
    Max. # of units loading in 40' high container (Some components would be detached) 16

Lighting Tower I9TL Series use LED Lights Electric Lifting for 9meters Height
