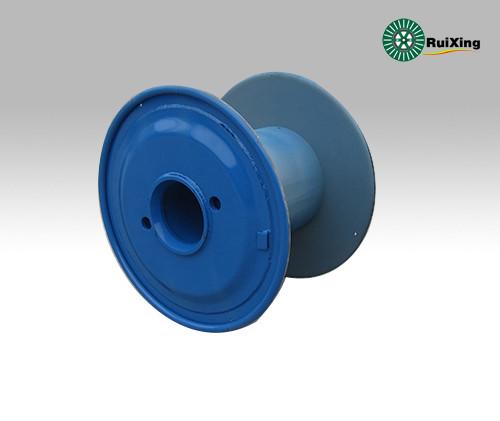

Double layer high speed cable bobbin cable reel drum spool for high speed twisting machine
Double layer high speed cable bobbin cable reel drum spool for high speed twisting machine
Specifications
Place of Origin :
China
Brand Name :
RX
Model Number :
PND400-1250
Color :
Blue, Green, Red
Using :
Packing, Processing, Dispatch, Bunching
MOQ :
10 PCS
Price :
US $10 - 1,000
Packaging Details :
Iron shelf & By bulk according to the request
Delivery Time :
Depend on quantity
Payment Terms :
TT, Western Union
Supply Ability :
1000 Pieces per Month
Description

Specifications

1.Price low, saving your costs
2.on time delivery
3.high speed winding
4.Reliable strength
5.Enhanced durability

Technical parameter for reference
In accordance with GB4004-83, JB/T7600.3-94 and DlN46395 standards, the product is made of common carbon steel Q235 thick plate through assembly and welding, and machine finishing. The product has high rigidity of bobbin and high precision. Through dynamic test, the product has stable operation at high speed, and can be used for high-speed drawing-wire machine and wire stranding machine.
Serial Number Specification Model Lateral Plate Diameter D1 Major Diameter D2 Axle Hole Diameter D4 Carrying Hole Diameter D5 Center Distance E of Axle Hole and Carrying Hole External Width L1 Internal Width L2
1 400 400 224/250
280		 125/127 28 100 265
300		 224
250
2 500 500 280/315
355		 125/127 28 100 300
375		 250
315
3 560 560 315/355
400		 125/127 28 100 355
425		 280
355
4 630 630 355/400
450		 125/127 28 100 375
475		 315
400
5 710 710 400/450
500		 250 40 170 425
530		 355
450
6 800 800 450/500
560		 250 40 170 475
600		 400
500
7 1000 1000 560/630
710		 250 50 250 750 630
8 1250 1250 710/800
900		 250 50 250 950 800

We can produce spools accordance with customer's sample and drawing

More Products:

Double Layer High Speed Bobbin

Flat High Speed Bobbin

Enhanced metal flange process bobbin

Stamped steel plate machine spool

Corrugated bobbin

Reinforced corrugated bobbin

Corrugated bobbin for delivery

Enhanced Type machine bobbin

Other reels and spools

Ruixing Electrical Machinery Co., Ltd.

ADD: Chengdong Industrial Zone, Hejian, Hebei, China

TEL: +86-317-3600828 3866066

Fax: +86-317-3600828

E-mail: jackyreels@hotmail.com Melody@chinabobbin.com

WEBSITE: http://www.chinabobbin.com
