PLS Series Dynamic electronic Fatigue Testing laboratory equipment
PLS Series Dynamic electronic Fatigue Testing laboratory equipment
Specifications
Brand Name :
PTE
Model Number :
PLS Series Dynamic electronic Fatigue Testing laboratory equipment
Certification :
CE
Place of Origin :
China
MOQ :
1
Payment Terms :
L/C, T/T, Western Union
Delivery Time :
wooden case
Packaging Details :
within 10 days after the confirmed order
Usage :
Universal Testing Machine
test :
compression tension bending shearing
standards :
ASTM, DIN, BS, JIS, GB, etc.
test material :
metal,plastic,rubber,spring, all kinds of rope material
fields :
metallurgy, machinery, building engineering,industry,lab,factory
Load accuracy :
≤±1%
Description

PLS Series Dynamic electronic Fatigue Testing laboratory equipment
PLS Series Dynamic electronic Fatigue Testing laboratory equipment

Applications

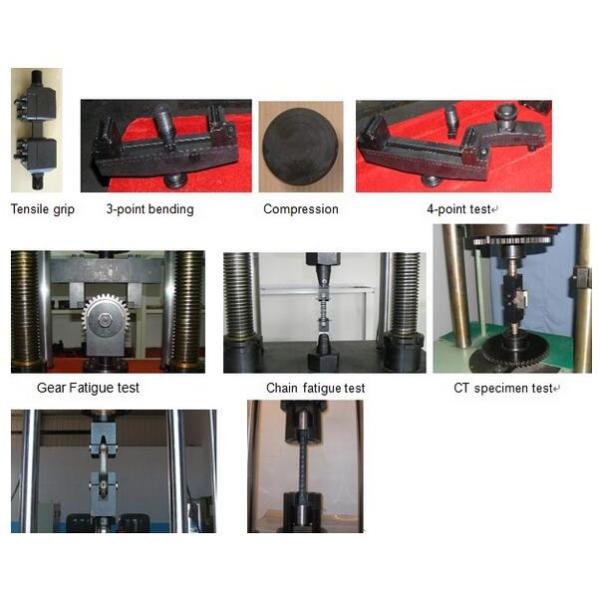

PLS Electro-hydraulic servo testing machine is produced according to the dynamic servo test technology, and utilizes the design methods of unitization, standardization and modularization, which enhance the stability and reliability of the system. The machine is mainly used for the dynamic and static mechanics performance tests to material and parts, equipped with corresponding accessories, it can do tensile, compression, low cycle and high cycle, crack growth test

Specifications

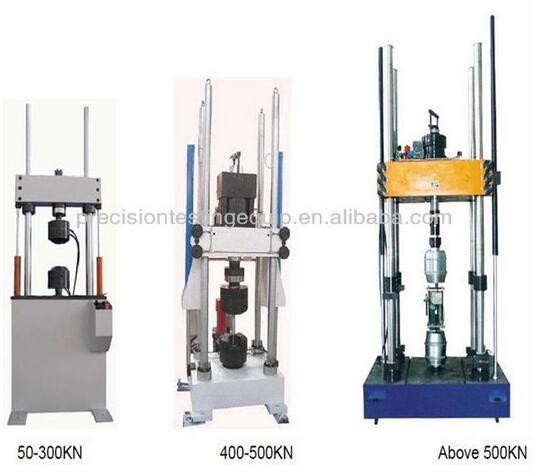

Model PLS-50 PLS--100 PLS--200 PLS--500 PLS--750 PLS-1000

Load capacity

(kN)

 Static ±50 ±100 ±200 ±500 ±750 ±1000
Dynamic 50 80 160 400 600 800
Measurement accuracy Load ±1.0% of reading
Displacement ±1.0%FS of each file
Deformation ±1.0% of reading

Function generator

Range of frequency(Hz)

 0.01~20HZ
Stroke of piston(mm) ±75
Distance between columns (mm) 500 565 700 820 820 1000
Distance between grips 50~600

PLS Series Dynamic electronic Fatigue Testing laboratory equipment

PLS Series Dynamic electronic Fatigue Testing laboratory equipment

PLS Series Dynamic electronic Fatigue Testing laboratory equipment
PLS Series Dynamic electronic Fatigue Testing laboratory equipment
PLS Series Dynamic electronic Fatigue Testing laboratory equipment
PLS Series Dynamic electronic Fatigue Testing laboratory equipment
Three Star Service :
*First Star---Pre-service
24 Hours online service for your consult
Help choose right model,and a series of service,person,advise.
*Second Star---Middle Service
--Give you best offer
--Provide discount for many sets order
--Do customer's request
--Choose payment term you convienent.
--Promptly production and delivery,inform you in time.
--Can provide invoice value as you like to decrease your tax.
. *Third Star---After serivce
--1 year warranty service and all life maintenance.
--Technical Egineer are avalible for oversea trainning.
--Free change for some parts
--Provide newest software vision when update
--Remote control technical consult
--Free installation DVD
--Maintenance plan
PLS Series Dynamic electronic Fatigue Testing laboratory equipment
