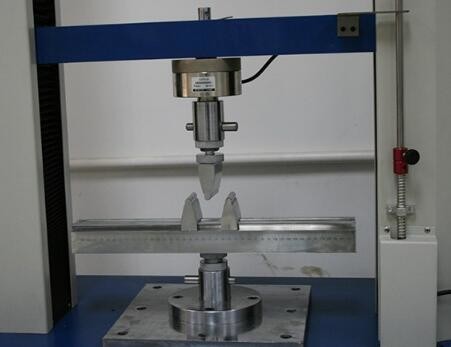

Electronic Universal Material Bending Test Equipment

Electronic Universal Material Bending Test Equipment is a new material testing machine that combinspeed, range of force measurement, Has high accuracy and sensitivity fr the load, displacement measurement and control, This machine is simple to operate, simple structure, it can be directly placed on the testing table for test, especially suitable for controlling quality in production line This series of machine is ed with the electronic technology and mechanical transmission, it has accurate load mainly applied to test the non-metallic and metallic materials which the load is less than 2ton.

Corresponding standard:

GB/T16491-1996 electronic universal testing machine

Applicable industry:

Electronic Universal Material Bending Test Equipment is widely used in wire and cable, hardware, electronic and electrical equipment, packaging, printing, medical equipment, auto parts, textiles and leather, clothing, shoes, rubber and plastic products, colleges and universities; research laboratories; inspection arbitration, technical supervision departments and many other industries, it is the basic equipment for quality management and physical tested

Technical parameters:

A. Maximum Load: 2ton.

B. load cell: 5KN,1ton,2ton, option.(from U.S.A.)

C,accuracy of load measurement : the load cell + HZ-2000 screen ± 0.5% (full range of 5% -100%)

D. Units:Kg,Lb,N

E. Resolution: 1 / 50000

F,displacement resolution:0.001mm

G.power system:AC motor,deceleration device(from Italy)

H. control system:testing speed 50~300 mm/min with stepless speed and 5 fixed-speed

(50,100,200,250,300)or the needs of customer

I,Data sampling frequency:200times/sec

J..displacement:400,500,600mm

K. Safety devices: overload, emergency stop devices, limited devices of displacement,leak current protection device

L. Machine has function of printing. Can store 10 testing results and auto-calculate its average, auto-grab maximum force and the force at break.

N. Display: HZ-2000 dark blue LCD display, membrane touch keys, with the following functions.

single test, 10-point statistics manually and automatically calculate its average and break values;
Multi-unit automatically exchange such as kgf, Lbf, N;
function of free to take point;
With multi-calibration function;
Auto printing function;
Using 24-bit AD acquisition, resolution 1 / 200000;
Decimal digits 0 to 4 arbitrary choice;
Starting up using password protection feature, which can effectively prevent the non-operators to use
ratio of Breakpoint from 0 ~ 99%, which the user can set according to different materials to stop the machine
Overload protection function can be set, effectively preventing machine from overload;

O,power supply: AC 220V single-phase

P,power:400W

Q,machine size:1200*530*1800mm(length * width * height)

R,weight:70kg

Main functions:

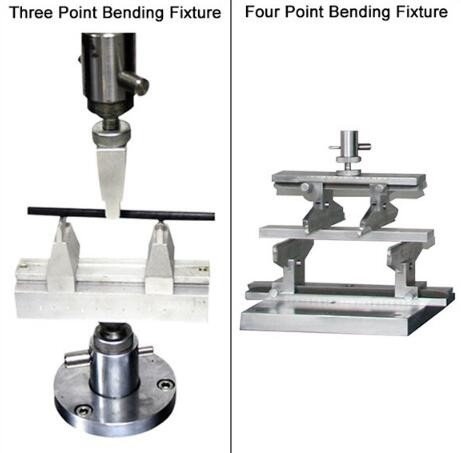

Electronic Universal Material Bending Test Equipment can be test all the material in tensile, compression, bending, shear, peel, tear, two-point extended (need add extensometer) and others for control products quality. Such as textile, rubber, plastics, synthetic leather, tape, adhesive, plastic film, composite materials, electronics, metals and other materials.

1. the surface of appearance using electrostatic spray, simple and generous, multi-functions and economy

2. digital force displayed by LCD , discernible tension or pressure, LCD display clearly

3. Three kinds of units: N-Kgf-Lbf option or automatically exchange;

4. LCD with backlight can be used in low-light environments

5. Single measurement, it can record the max force of tension and compression in both directions, automatic or manual cleared to zero.

6.The system would shut down if overload or over-trip

7. Structure of single-column is beautiful, sophisticated and economy.

Original configuration

A group of tensile fixture

Extension

Company can design and provide the fixtures according to the needs of customers, but the cost needs to add
