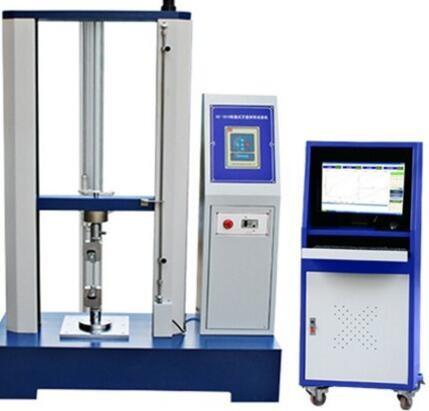

Electronic Type Rubber Strength Test Equipment
Electronic Type Rubber Strength Test Equipment
Specifications
Brand Name :
PTE
Model Number :
Electronic Type Rubber Strength Test Equipment
Certification :
CE
Place of Origin :
China
MOQ :
1
Payment Terms :
L/C, T/T, Western Union
Delivery Time :
wooden case
Packaging Details :
within 10 days after the confirmed order
Usage :
Universal Testing Machine
standards :
ASTM, DIN, BS, JIS, GB, etc.
test material :
metal,plastic,rubber,spring, all kinds of rope material
fields :
metallurgy, machinery, building engineering,industry,lab,factory
Load accuracy :
≤±1%
Description

Electronic Type Rubber Strength Test Equipment widely used in wire and cable, hardware, electronics, packaging, printing, medical equipment, auto parts, textiles and leather, clothing footwear, rubber products, institutions of higher learning; research laboratories; inspection of arbitration, and technical supervision departments and other industries, is quality management, basic equipment character test.

Technical parameter: Electronic Type Rubber Strength Test Equipment
Max load
500N, 1KN, 2KN (optional)
Accurate grade
1 grade /0.5 grade
Effective measuring range
Force from 0.2% to 100% (1grade) / from 0.4% to 100% (0.5 grade)
Measuring accuracy
Tolerance ±1% / tolerance ±0.5%
Tester resolution
Max load 1/200000, and constant resolution
Load sensor
Basic configuration sensor max load:from four sensors to choose one
Effective tensile stroke
800mm;1000mm;1200mm(can be widened according to customers requirement )
Effective testing width
300mm(can be widened according to customers requirement )
Testing speed
From 0.001 to 500mm/min
Accuracy of displacement measurement
Tolerance: ±0.5% / tolerance: ±0.2%
safety
Electronic-limit protection
Testing platform moving device
Fast /slow ( two speeds to control), can jog
Return Back
Manual or automatic operation, After the test, the moving iron return to initial position with the highest speed by manual or automatic operation
Overload protection
Overload 10%,automatic protection
fixture
A set of tensile fixture
Machine size
65x36x210cm(L*W*H)
Power system
Panasonic AC Servo Motor + Driver + high-precision ball screw
Temperature range
From normal temperature to 200 degree
Temperature display
Digital display
Inside space
200*300*500mm (W*L*H )
Cooling system
Compression from France
Power supply
220V50HZ or according to the requirement
Power
0.4KW ( depending on different demand of force, using different motor)
weight
160 KG
Units
KG,N,LB, TON can be exchanged

Electronic Type Rubber Strength Test Equipment

Electronic Type Rubber Strength Test Equipment
Electronic Type Rubber Strength Test Equipment
Electronic Type Rubber Strength Test Equipment
Electronic Type Rubber Strength Test Equipment
Electronic Type Rubber Strength Test Equipment
Three Star Service :
*First Star---Pre-service
24 Hours online service for your consult
Help choose right model,and a series of service,person,advise.
*Second Star---Middle Service
--Give you best offer
--Provide discount for many sets order
--Do customer's request
--Choose payment term you convienent.
--Promptly production and delivery,inform you in time.
--Can provide invoice value as you like to decrease your tax.
. *Third Star---After serivce
--1 year warranty service and all life maintenance.
--Technical Egineer are avalible for oversea trainning.
--Free change for some parts
--Provide newest software vision when update
--Remote control technical consult
--Free installation DVD
--Maintenance plan
Electronic Type Rubber Strength Test Equipment

More detail information ,please kindly contact with me .
