DHB-3000 Electronic Digital Brinell Hardness Testing Equipments
DHB-3000 Electronic Digital Brinell Hardness Testing Equipments
Specifications
Brand Name :
PTE
Model Number :
DHB-3000 Electronic Digital Brinell Hardness Testing Equipments
Certification :
CE
Place of Origin :
China
MOQ :
1
Payment Terms :
L/C, T/T, Western Union
Delivery Time :
wooden case
Packaging Details :
within 10 days after the confirmed order
Usage :
Universal Testing Machine
standards :
ASTM, DIN, BS, JIS, GB, etc.
test material :
metal,plastic,rubber,spring, all kinds of rope material
fields :
metallurgy, machinery, building engineering,industry,lab,factory
Load accuracy :
≤±1%
Description

DHB-3000 Electronic Digital Brinell Hardness Testing Equipments
DHB-3000 Electronic Digital Brinell Hardness Testing Equipments

Applicant:

The Brinell Hardness Testing Equipments that shows the largest indentation among all the hardness tests is able to reflect the comprehensive features of the material ,and the test is unaffected by the organization micro-dioptre and the compositional unevenness of the specimen ;and hence it is a hardness testing with high precision. The Brinell hardness test is widely used in such industrial fields as metallurgy, forging, casting, unhardened steel and nonferrous metals industries, as well as in the laboratories, universities, colleges and s-scientific research institutes.

Features

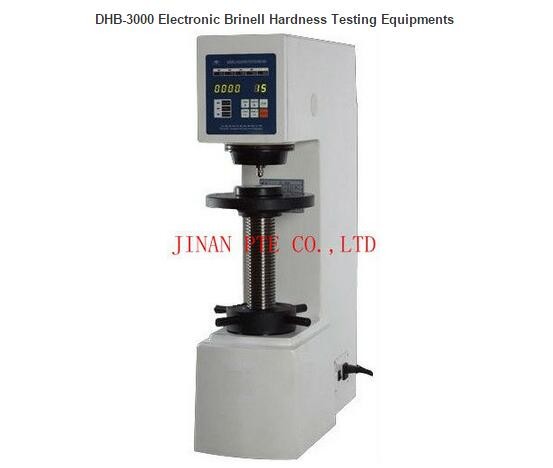

DHB-3000 electronic Brinell Hardness Equipments is a unified product combining the precise mechanical structure with the computer control by means of the mechanical and electrical circuit system, and so it is the more advanced brinell hardness tester in today’s world. The instrument adopts the motorized test force application without weight blocks, and uses 0.5‰ accuracy compression sensor to feedback the information and the CPU control system to automatically compensate the test force lost during the testing. The test force and the load dwell time can be directly set pressing the selected keys on the touch-keyboard, with reliable repetition, precise reading and easy operation.

Specifications:

Testing range:( 8~650)HBW
Test Force:612.9N(62.5Kgf),980N(100Kgf),1226N(125Kgf),1839N(187.5Kgf),2452N(250Kgf),4900N(500Kgf),7355N(750Kgf),9800N(1000Kgf),14700N(1500Kgf),29400N(3000kgf)
Accuracy of Displayed Hardness Value
Hardness Range(HBW) Max tolerance% Repetition%
≤ 125 ± 3 ≤ 3.5
125<HBW≤225 ± 2.5 ≤ 3.0
> 225 ± 2.0 ≤ 2.5
Max, Height of the specimen: 225mm
Max Distance from the indenter center to the instrument panel: 135mm
Magnification of the microscope: 20X
Min Reading Grade of the Drum wheel of the microscope: 0.005mm
Power supply and Voltage: AC220V/50-60Hz

Main Accessories

Tables:Large,Small and V-shaped each
Hard Alloyed Steel Ball Indenters: 2.5mm, 5mm, and 10mm each.
One Microscope: 20X
Two Standard Hardness Blocks



DHB-3000 Electronic Digital Brinell Hardness Testing Equipments
DHB-3000 Electronic Digital Brinell Hardness Testing Equipments
DHB-3000 Electronic Digital Brinell Hardness Testing Equipments
DHB-3000 Electronic Digital Brinell Hardness Testing Equipments
DHB-3000 Electronic Digital Brinell Hardness Testing Equipments
Three Star Service :
*First Star---Pre-service
24 Hours online service for your consult
Help choose right model,and a series of service,person,advise.
*Second Star---Middle Service
--Give you best offer
--Provide discount for many sets order
--Do customer's request
--Choose payment term you convienent.
--Promptly production and delivery,inform you in time.
--Can provide invoice value as you like to decrease your tax.
. *Third Star---After serivce
--1 year warranty service and all life maintenance.
--Technical Egineer are avalible for oversea trainning.
--Free change for some parts
--Provide newest software vision when update
--Remote control technical consult
--Free installation DVD
--Maintenance plan
