Electronic Power and Universal Testing Machine Usage Low Frequency Withstand Voltage Testing Equipment WDW-100D
Electronic Power and Universal Testing Machine Usage Low Frequency Withstand Voltage Testing Equipment WDW-100D
Specifications
Brand Name :
PTE
Model Number :
Electronic Power and Universal Testing Machine Usage Low Frequency Withstand Voltage Testing Equipment WDW-100D
Certification :
CE
Place of Origin :
China
MOQ :
1
Payment Terms :
L/C, T/T, Western Union
Delivery Time :
wooden case
Packaging Details :
within 10 days after the confirmed order
Usage :
Universal Testing Machine
standards :
ASTM, DIN, BS, JIS, GB, etc.
test material :
metal,plastic,rubber,spring, all kinds of rope material
fields :
metallurgy, machinery, building engineering,industry,lab,factory
Load accuracy :
≤±1%
Description

Electronic Power and Universal Testing Machine Usage Low Frequency Withstand Voltage Testing Equipment WDW-100D
Electronic Power and Universal Testing Machine Usage Low Frequency Withstand Voltage Testing Equipment WDW-100D

Applications:

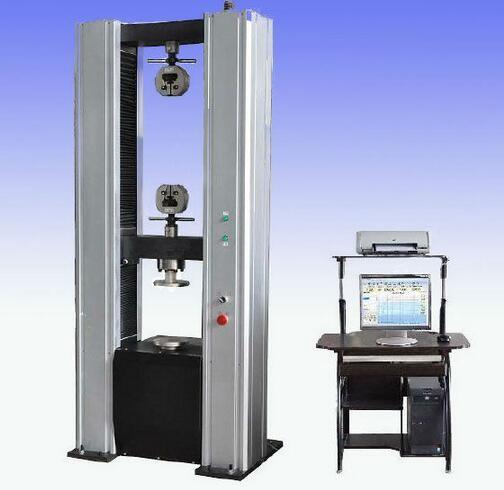

WDW-100D Computer Control Electromechanical Lab Universal Test Equipment are designed and manufactured according to ASTM, ISO, DIN, GB etc standards.

It is suitable for wide range of material for tension, compression, bending, shearing and low cycle test. With special grips, it can also do very special test as customer’s request.

It is for metal, rubber, plastic, spring, textile, and components testing.

This machine is servo control mode and the computer with strong function software does data processing and issues the test reports. The software based on Windows system is able to make automatic calculating of test results, i.e. tensile strength; upper / lower yield strength, Non proportional stress point etc. Report creation function makes it is very simple to make testing report in needed format.

It is necessary inspect device in the filed of steel and iron factory, the laboratories of scientific research institutes, infrastructure construction organs, machinery plants and education for research and teaching , etc.

WDW-D Main Specifications :

Model WDW-300D WDW-200D WDW-100D WDW-50D WDW-20D WDW-10D
Max. Load 300KN 200KN 100KN 50KN 20KN 10KN
Load accuracy ≤±1% (≤±0.5% for special order)
Load range 2%-100% of full scale (0.4%-100% for special order)
Load resolution 1/200000 of full scale
Test speed 0.005-500mm/min
Speed accuracy ≤±1%
Displacement resolution 0.001mm
Deformation resolution 0.0001mm
Effective test width

570mm

 450mm
Effective tensile space 600mm 600mm
Dimension 1110×750×2560mm 980×720×2150mm 800×550×1750mm
Power supply 380V, 3ph, 3KW 220V, 1ph, 1.5KW 220V, 1ph, 0.5KW
Weight 2100KG 1200KG 500KG
Grips Wedge type, plate type and other grips as consumer’s demand

Features:

  1. High accuracy servo motor to control test speed.
  2. Ball screw no backlash to guarantee the low noise and high driving efficiency
  3. High accuracy load cell to measure the test load
  4. High accuracy photoelectric encoder to measure the displacement.
  5. Maxtest software has strong function, it can show test load, displacement, test speed, test status, and also has the function of peak load holding, peak displacement holding and self return original position.
  6. Thousands of test fixture can be used according to different test request;
  7. Compact structure with easy operation.
  8. Limit switch and setting in the software to guarantee the safety

Electronic Power and Universal Testing Machine Usage Low Frequency Withstand Voltage Testing Equipment WDW-100D

Electronic Power and Universal Testing Machine Usage Low Frequency Withstand Voltage Testing Equipment WDW-100D

Electronic Power and Universal Testing Machine Usage Low Frequency Withstand Voltage Testing Equipment WDW-100D
Electronic Power and Universal Testing Machine Usage Low Frequency Withstand Voltage Testing Equipment WDW-100D
Electronic Power and Universal Testing Machine Usage Low Frequency Withstand Voltage Testing Equipment WDW-100D
Electronic Power and Universal Testing Machine Usage Low Frequency Withstand Voltage Testing Equipment WDW-100D
Three Star Service :
*First Star---Pre-service
24 Hours online service for your consult
Help choose right model,and a series of service,person,advise.
*Second Star---Middle Service
--Give you best offer
--Provide discount for many sets order
--Do customer's request
--Choose payment term you convienent.
--Promptly production and delivery,inform you in time.
--Can provide invoice value as you like to decrease your tax.
. *Third Star---After serivce
--1 year warranty service and all life maintenance.
--Technical Egineer are avalible for oversea trainning.
--Free change for some parts
--Provide newest software vision when update
--Remote control technical consult
--Free installation DVD
--Maintenance plan
Electronic Power and Universal Testing Machine Usage Low Frequency Withstand Voltage Testing Equipment WDW-100D
