Impact drop testing machine
Impact drop testing machine
Specifications
Brand Name :
PTE
Model Number :
Impact drop testing machine
Certification :
CE
Place of Origin :
China
MOQ :
1
Payment Terms :
L/C, T/T, Western Union
Delivery Time :
wooden case
Packaging Details :
within 10 days after the confirmed order
Usage :
Impact drop testing machine
standards :
ASTM, DIN, BS, JIS, GB, etc.
Impact energy (J) :
150, 300
Impact velocity (m/s) :
5.2
Raised angle :
150Celsius degree
Packaging :
Standard Export Wooden Case
Description

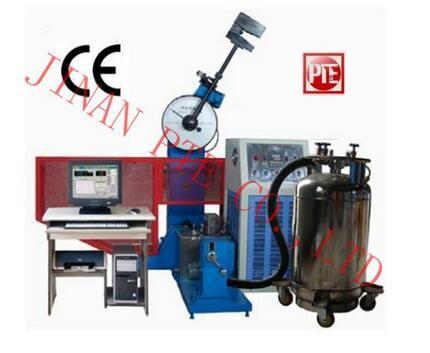

JB type impact testing machine is used for measuring the metal material resistance performance under dynamic load, in order to determine the material properties under dynamic load.

The principle machine of the testing machine has single supporting column structure, cantilever type pendulum hanging mode; the pendulum body is U-shaped. The impact cutter is installed and fixed by screws and is convenient and easy to be replaced. Safety guard pin is arranged on the principle machine which is also provided with safety guard net.


It is designed and developed according to standard of ISO148, ASTM E23.

(Charpy test machine / charpy impact test machine /impact tester price )

***1, Pendulum rising, impact, free releasing etc. action can be controlled easily by PC mouse simple click, as well as the remote control box;

***2, Safety pin guaranties the impact action, standard protection shell to avoid any accident.

***3, Pendulum will automatically rising and ready for next impact action after specimen breakout.

***4, With two pendulums (big and small), PC software to display the energy loss, impact tenacity, rising angle, test average value etc. test data and result, also the curve display available; with calculation and report printing function. The dial scale can show test results too.

Specification in forms:

Model JB-300B JB-500B
Display mode Dial scale display
Impact energy 300J/150J 500J/250J
Distance between pendulum center to impact point 750mm 800mm
Impact velocity 5.2m/s 5.4m/s
Pendulum preparing angle 150º
Span of specimen seat 40+0.2mm
Round angle radius of Grips R1-1.5mm
Round angle radius of striking edge R2-2.5mm, R8±0.08mm
Angle of impact knife 30°
Specimen size 10 (7.5, 5, 2.5)mm*10mm*55mm
Power supply 3 phases 4 lines, 50Hz, 380V
Weight 550Kg 750Kg


Email: ptestmachine@gmail.com

Impact drop testing machine


Impact drop testing machine
Three Star Service :
*First Star---Pre-service
24 Hours online service for your consult
Help choose right model,and a series of service,person,advise.
*Second Star---Middle Service
--Give you best offer
--Provide discount for many sets order
--Do customer's request
--Choose payment term you convienent.
--Promptly production and delivery,inform you in time.
--Can provide invoice value as you like to decrease your tax.
. *Third Star---After serivce
--1 year warranty service and all life maintenance.
--Technical Egineer are avalible for oversea trainning.
--Free change for some parts
--Provide newest software vision when update
--Remote control technical consult
--Free installation DVD
--Maintenance plan
