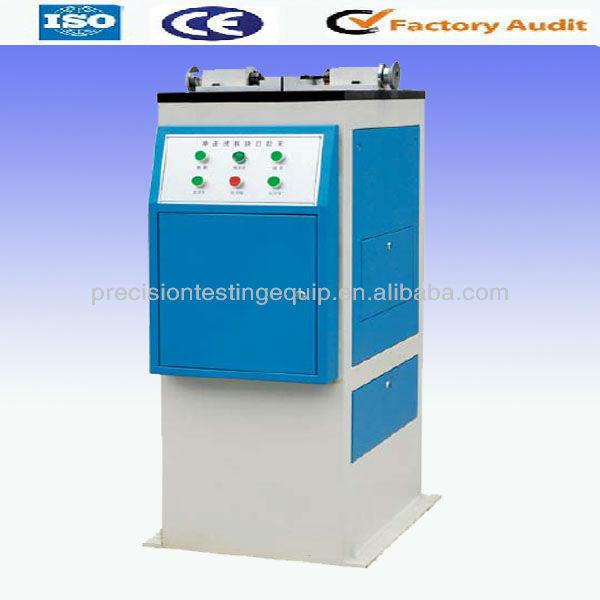

Impact sample U V type notch broaching machine/Impact specimen notch milling machine
Impact sample U V type notch broaching machine/Impact specimen notch milling machine
Specifications
Brand Name :
PTE
Model Number :
Impact sample U V type notch broaching machine/Impact specimen notch milling machine
Certification :
CE
Place of Origin :
China
MOQ :
1
Payment Terms :
L/C, T/T, Western Union
Delivery Time :
wooden case
Packaging Details :
within 10 days after the confirmed order
Usage :
Impact sample U V type notch broaching machine/Impact specimen notch milling machine
standards :
ASTM, DIN, BS, JIS, GB, etc.
Shape of sample notch :
V2 mm,U2mm,(U3mm, U5mm a
Broaching Speed :
2.5m/min
Broach material :
W18Cr4V
Application :
Specimen vu notch broaching
Description

1. Application

Impact sample U V type notch broaching machine/Impact specimen notch milling machine is necessary and special equipment of metallurgy, pressure vessel, vehicles and vessels, construction machine manufacturer industries Impact sample U V type notch broaching machine/Impact specimen notch milling machineand departments of science &research

2. Standards:

ASTM E23-02a,EN10045,ISO148,ISO083,DIN 50115,GB229-2007

3.Features

3.1 The broach is made of special material and made in special technology, and it has high hardness, good abrasion resistance ability and long serving life;

3.2 This equipment has hydraulic drive double knives and can cut two specimen notches at one time.

3. Main Technical Specifications:

Shape of sample notch V2 mm,U2mm,(U3mm, U5mm alternative)
Sample size (10, 7.5, 5)x10x55mm
Cutting mode Hydraulic
Journey of broach V2, U2, U3 350mm; U5 380mm
Broaching Speed 2.5m/min
Broach material W18Cr4V
Power supply 380V 50Hz 0.4Kw
Max. Dimension 660x500x1240mm
Weight 200kg

Impact sample U V type notch broaching machine/Impact specimen notch milling machine
Email: ptestmachine@gmail.com

Impact sample U V type notch broaching machine/Impact specimen notch milling machine


Impact sample U V type notch broaching machine/Impact specimen notch milling machine
Three Star Service :
*First Star---Pre-service
24 Hours online service for your consult
Help choose right model,and a series of service,person,advise.
*Second Star---Middle Service
--Give you best offer
--Provide discount for many sets order
--Do customer's request
--Choose payment term you convienent.
--Promptly production and delivery,inform you in time.
--Can provide invoice value as you like to decrease your tax.
. *Third Star---After serivce
--1 year warranty service and all life maintenance.
--Technical Egineer are avalible for oversea trainning.
--Free change for some parts
--Provide newest software vision when update
--Remote control technical consult
--Free installation DVD
--Maintenance plan
