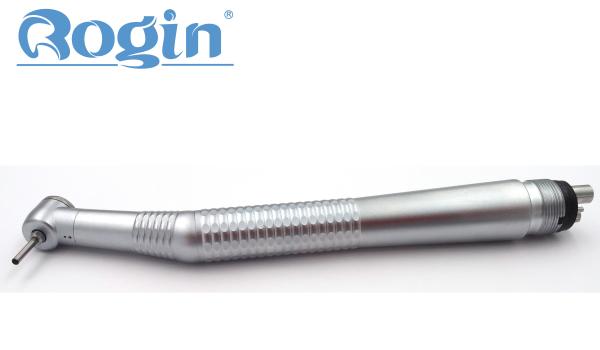

High Speed Wrench Type Handpieces Air Turbine Dental Handpieces with Mini Head

(Same as Pana Air)

Quick Detail :

1. Mini ,Standard or Torque Head

2. Cartridge for Handpiece

3. Key Type ( 4 or 2 holes )

4. Turn Smooth, Low Noise

5. Use Best Bearing, Long Durability

6. Air pressure: 0.2 - 0.24 Mpa

7. Rotation Speed : >=360krpm ( Standard )

>=300krpm ( Torque Head )

8. Chuck Type : Push Button or Wrench

9. Bur applicable : φ 1.59 mm ~ φ 1.6 mm * 21 mm ~ 23 mm (diameter * length)

10. Noise : <=60db

Specifications :

Description :

1. The need to use a clean , dry , oil-free air compressors for medical use

2. The air pressure between 2.3-2.8kgf / cm2

3. Place the adapter with quick connector at the bottom of a combination of dental handpieces , and confirm that the card lock fixed

4. Press the pedal , handpiece operation and examine whether the normal operation of the spray head . If everything is normal, you can start using the handpiece .

After each patient use , maintenance should be done as follows:

1. First remove the diamond burs , and clean up all the teeth on dental handpieces precipitate

2. Use a metal needle to clean the spray holes and fumaroles

Note: The spray holes and diamond burs into 40 -degree angle , fumaroles and diamond burs to a 30 degree angle

3. Place the clean lubricating oil is sprayed into the axial hole 1-2 seconds ( diamond burs is plugged holes )

4. In the bottom of the handpiece were ( with / without quick connector ) two kinds of styling , make the right amount of lubricant is injected into the bottom

5. The handpiece with quick connector combination ( first determine the water switch is turned off )

6. Replace the diamond burs , surrounded by white silk cloth handpiece head ( make sure the needle does not touch the diamond burs and white gauze , so as not to tie )

7. pedal depressed for about 20 seconds , look at whether there is in white gauze on any stain. If there are stains on the white gauze , again, add oil , starting from item 4 continued routine maintenance , know that white gauze until no stain

8. Finally, no more than 135 degrees Celsius temperature and high pressure sterilization
