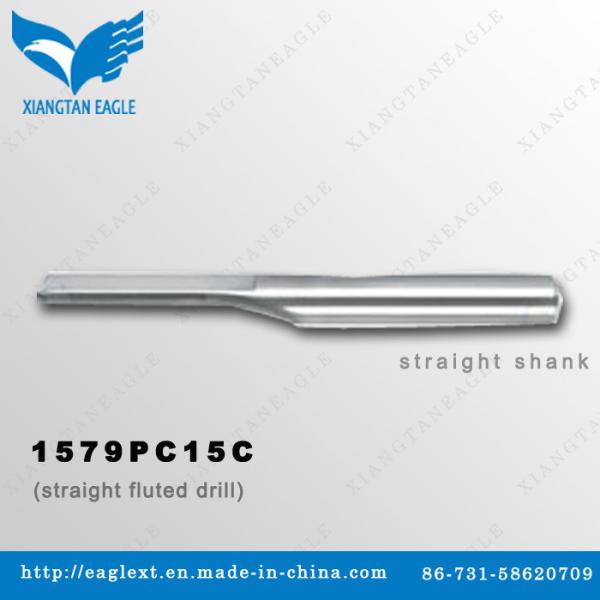

Solid Carbide Straight Flute Drill for Aluminium Alloy and Cast Iron
Solid Carbide Straight Flute Drill for Aluminium Alloy and Cast Iron
Specifications
Place of Origin :
Hunan, China
Model Number :
Straight Slot Drill
MOQ :
1 pieces
Packaging Details :
Plastic Box
Delivery Time :
5-10 Days from payment date
Payment Terms :
T/T 100% in advance
Supply Ability :
10000PC/Month
Description

CNC drilling tools --straight fluted drill for aluminum and cast iron

Product Features:

1. Applicable to cast iron, silicon, aluminum and other short-cut materials.

2. Having an excellent self-centering capability, can processing H7 workpiece efficiently.

3. Processed holes can achieve high position and have a good straightness and surface finish.

Drill Diameter Drilling Depth Cooling Mode Shank Form Shank Diameter Overall Length Drill Length Suitable Drill Depth Shank Length
4 5 External Straight 6 74 36 29 36
4.2 5 External Straight 6 74 36 29 36
5 5 External Straight 6 82 44 35 36
5 15 Internal Straight 6 145 105 96 36
6 5 External Straight 6 82 44 35 36
6 15 Internal Straight 6 145 105 96 36
6.75 5 External Straight 8 91 53 43 36
7 5 External Straight 8 91 53 43 36
8 5 External Straight 8 91 53 43 36
8 15 Internal Straight 8 180 137 127 36
8.5 5 External Straight 10 103 61 49 40
9 5 External Straight 10 103 61 49 40
9 15 Internal Straight 10 217 170 158 40
10 5 External Straight 10 118 61 49 40
10 15 Internal Straight 10 118 170 158 40
10.25 5 External Straight 12 258 71 56 45
11 5 External Straight 12 118 71 56 45
11 15 Internal Straight 12 258 205 190 45
12 5 External Straight 12 118 71 56 45
12 15 Internal Straight 12 258 205 190 45
13 5 External Straight 14 124 77 60 45
14 5 External Straight 14 124 77 60 45
14 15 Internal Straight 14 290 236 219 45
15 5 External Straight 16 133 83 63 48
15.5 5 External Straight 16 133 83 63 48
16 5 External Straight 16 133 83 63 48
17 5 External Straight 18 143 93 71 48
17.5 5 External Straight 18 143 93 71 48
18 5 External Straight 18 143 93 71 48
19.5 5 External Straight 20 153 101 77 50
20 5 External Straight 20 153 101 77 50
