Specifications
Brand Name :
HAIZHILI
Model Number :
DDG1000
Certification :
CE
Place of Origin :
Hubei Province, China
MOQ :
1 set
Price :
USD 1150-1250 per set
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
500 sets per month
Delivery Time :
10 - 15 working days after receipt of down payment
Packaging Details :
Each to be packed in a pallet.
Product name :
Electric Lift Table
Scissor :
Single scissor
Loading capacity :
1000kg
Min height :
85mm
Max height :
860mm
Table dimension :
1450*1140mm
Voltage :
380/220V
Color :
Yellow / orange or customized
Net weight :
280kg
Warranty :
1 year
Lift drive / actuation :
Electric Motor
After-sales service provided :
Online support
Material :
Steel
Keywords :
Electric scissor lift table
Description

Heavy duty design low-type 1000kg mini electric scissor lift table

Heavy duty design low-type 1000kg mini electric scissor lift table

Heavy duty design low-type 1000kg mini electric scissor lift table

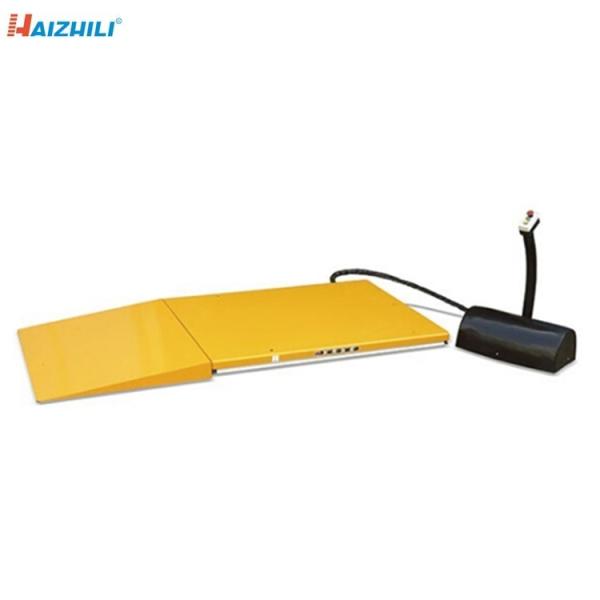

Photo of Electric Scissor Lift Table:

Heavy duty design low-type 1000kg mini electric scissor lift tableHeavy duty design low-type 1000kg mini electric scissor lift tableHeavy duty design low-type 1000kg mini electric scissor lift table

Specification of Electric Scissor Lift Table:

Model DDG1000 DDG1500 DDG2000
Load Capacity (kg) 1000 1500 2000
Min. Height (mm) 85 105 105
Max. Height (mm) 860 860 850
Table Dimension (mm) 1450*1140 1600*1160 1600*1160
Input Voltage 380/220V 380/220V 380/220V
Net Weight (kg) 280 380 380

If this is not the model you are looking for, please let us know the followings:

1) Load capacity

2) Lifting height

3) Table size

Feature of Electric Scissor Lift Table:

1. Heavy duty design with larger platform.

2. These tables achieve a low closed height, eliminating the need for a pit installation.

3. Conform to all European safety standards including EN1570.

4. Remote power pack with pedestal and controls protected to IP54.

5. Upper platform filled with safety perimeter to prevent descent on contact with obstructions.

6. 24V control box with UP and DOWN button, EMERGENCY STOP.

7. External power pack equipped with a relief valve against overloading and compensated flow valve for control lowering speed. Power supply are AC 380V/50HZ/3 phase.

8. Hose burst safety valve to stop the lift table lowering in case of hose breakage.

9. Removable lifting eyes to facilitate handing and installation of the lift table.

10. Oiless bushing on pivot point.

11. Loading ramp is a standard equipment.
