Specifications

Brand Name :

Haizhili

Model Number :

DCQH6-0.8

Certification :

Place of Origin :

Hubei Province, China

MOQ :

1 set Loading Dock Ramp

Price :

USD 3400 - 3900 PER SET

Payment Terms :

L/C, T/T, Western Union, MoneyGram

Supply Ability :

500 sets per month

Delivery Time :

In 10 - 15 working days

Packaging Details :

Naked package

Product name :

Loading Dock Ramp

Color :

Grey

Material :

High-duty Steel Structure

Working condition :

Indoor and outdoor

Overall length :

10 meter

Overall width :

2.1 meter

Wheels :

Pneumatic rubber tires

Min lifting height :

1200mm

Max lifting height :

1600mm

Warranty :

One year

Description

6 ton hydraulic adjustable container loading dock ramp for sale

Description of Loading Dock Ramp

This mechanical used mobile dock ramp are widely used in terminals, stations, warehouses and other places. According to the different needs of users, as the special design in terms of dimensions, load

bearing and so on. Ramps mounted on the side of the dock, and the dock floor and sides flush.

Speicification of Loading Dock Ramp

6 ton hydraulic adjustable container loading dock ramp for sale

Model	Loading capacity (kg)	Table size (mm)							Adjust height (mm)
Model	Loading capacity (kg)	A	B	C	D	E	F	G	H	I	J
DCQH6-0.8	6000	6000	2000	1000	300	10300	1800	2100	1200	400	1600
DCQH8-0.8	8000	7000	2200	1000	300	10500	1800	2100	1200	400	1600
DCQH10-0.8	10000	7000	2400	1000	300	11200	1800	2100	1200	400	1600

Advantage of loading dock ramp

1) Container load ramp using the hydraulic pump as lifting power, and no need electric power source, can easily adjust the height by hand-cranked.

2) Adopting anti-slip checkered steel plate to guarantee good anti-slip performance of the platform, 3) We use solid tyres instead of the pneumatic tyres which will be more safety and easy to control during operation, it will extend the tyres and the ramps service life.

4) Adopting imported sealing member to guarantee good sealing performance of the hydraulic system.

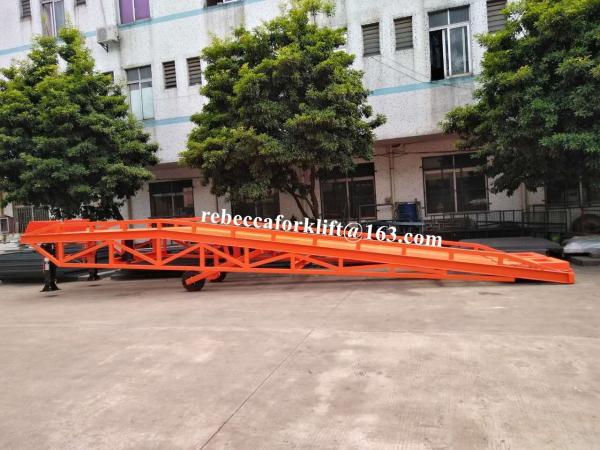

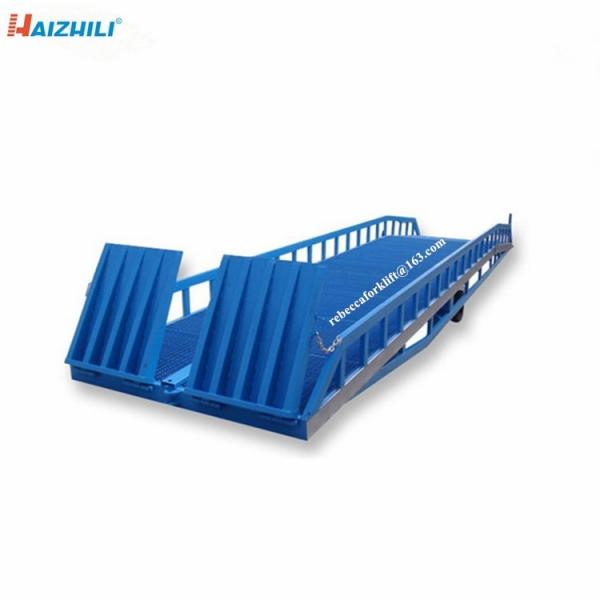

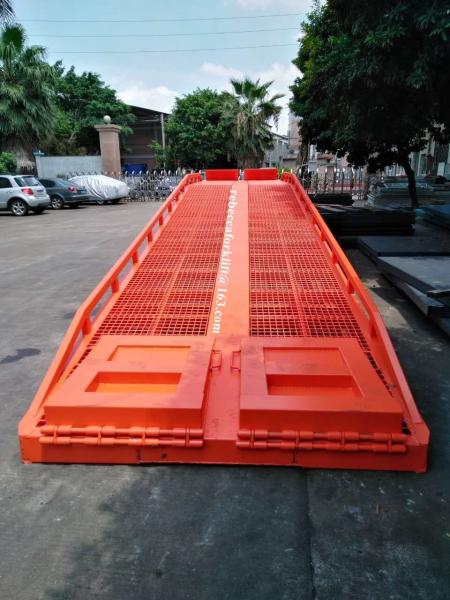

Photo of loading dock ramp

6 ton hydraulic adjustable container loading dock ramp for sale
