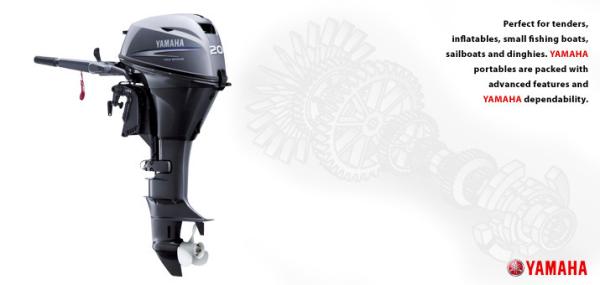

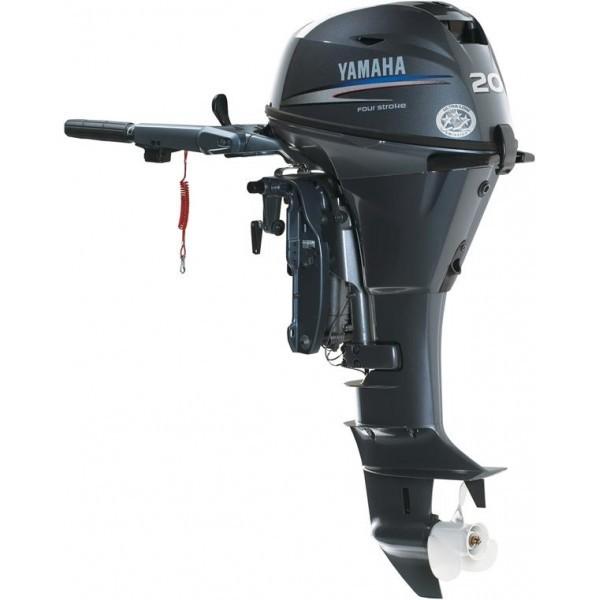

4 Stroke 20HP 14.7KW Short Shaft Yamaha Outboard Motors F20BMHS
4 Stroke 20HP 14.7KW Short Shaft Yamaha Outboard Motors F20BMHS
4 Stroke 20HP 14.7KW Short Shaft Yamaha Outboard Motors F20BMHS
4 Stroke 20HP 14.7KW Short Shaft Yamaha Outboard Motors F20BMHS
Specifications
Brand Name :
YAMAHA
Model Number :
F20BMHS
Certification :
CE
Place of Origin :
JAPAN
MOQ :
5
Price :
Negotiation
Payment Terms :
T/T, Western Union
Supply Ability :
100PCS PER MONTH
Delivery Time :
10 DAYS AFTER GOT THE DEPOSIT
Packaging Details :
CARTON BOX
Product Name :
Yamaha Outboard Motors
Stroke :
4
Shaft type :
short
Horse Power :
20HP
Displacement :
362 cm³
Dry Weight :
51.7kg
Description

4 Stroke 20HP Yamaha Gasoline Motor F20BMHS short shaft 14.7KW

Key Features

Blow-By Gas Reburning System - Clean
Prime Start - sure start
Large steering angle (45º each) - convenience
Offset cylinder & water-cooled fuel pump - reliability & durability
Front Shift - convenience
Start-In-Gear Prevention - convenience
Labyrinth Exhaust System - Low noise
Shallow Water Drive - convenience
Over-Rev Limiter, Overheat Warning & Low Oil Pressure Warning - reliability
Special Aluminium Alloy (YDC-30), special treatment exhaust & self-sacrificing anodes - anti-corrosion

Compact, light weight and powerful
The Yamaha four-strokes boast muscular performance despite being light in weight for their classes. Whether fishing a favourite point or taking a leisurely weekend cruise, these engines are a delight to use. They feature greater flexibility and durability. What sets our portable four-strokes apart from the competition is not just their light weight and compactness but the fact that they have the same renowned Yamaha quality, technology and reliability as our large displacement outboards.

Specifications

Model Code 2 :

F20BMHS

Engine :

4 stroke, SOHC, In-line 2

Displacement :

362 cm³

Compression Ratio :

9.3

Max. Prop Shaft Output :

14.7 kW (20 ps) @ 5500 r/m

Full throttle rpm range :

5000 ~ 6000 r/m

Fuel Induction System :

1-Carb with acceleration pump

Starter System :

Prime Start

Lubrication :

Wet sump

Engine oil capacity :

1.8 l / 1.6 l * with/ without oil filter exchange

Bore x Stroke (mm) :

63.0 mm x 58.1 mm

Fuel consumption :

6.8 l/h @ 5500 r/m * reference data

Trim & Tilt :

Manual (4-step)

Shallow Water Drive Positions :

2 steps

Gear ratio :

2.08 (27/13)

Engine transom height :

S: 438 mm (17.2

Dry Weight :

51.7 kg
