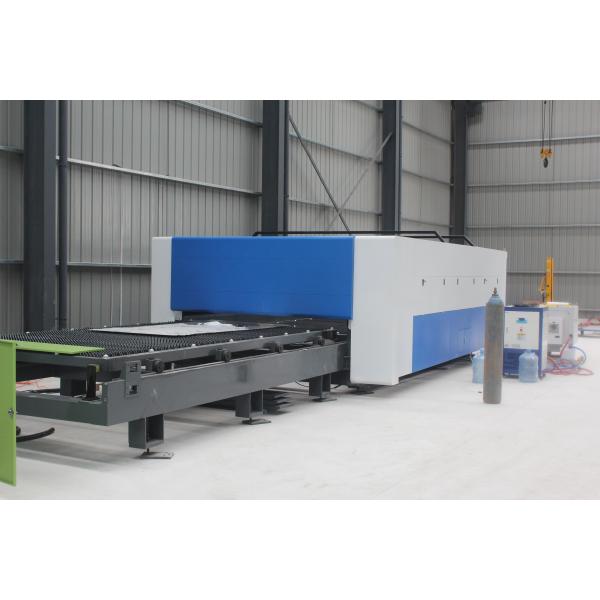

Raycus Laser Cutting Machine 1KW - 4KW Fiber Laser Cutter For Steel Sheet
Raycus Laser Cutting Machine 1KW - 4KW Fiber Laser Cutter For Steel Sheet
Specifications
Brand Name :
Sintec Optronics
Model Number :
STC025
Payment Terms :
T/T via bank
Delivery Time :
Stock
Cooling Mode :
Water Cooling
Cutting Area :
6000mm*2000mm
Drive System :
Servo
Laser Power :
1-4KW
Laser Type :
Fiber laser
Weight :
1000kg
Working Environment :
Indoor
Working Voltage :
380V/50HZ
Application :
Cutting For Steel Aluminum Sheet
Description

1KW-4KW CNC Fiber Laser Cutter For Steel Aluminum Sheet/Raycus Fiber Laser Cutting Machine

STC025 Super Quality Sheet Metal Laser Cutting Machine has equipped with a double exchange working table, size 2000x6000mm, which can protect the workers during cutting the very big metal sheet to get big size workpieces. The laser power is very high, reaching 10KW, so it can cut very thick metal sheets up to 30mm. Because of the big working area, the laser cutter can work for the military and aerospace industry, cutting very big size metal sheets to make special unit parts for machinery. The key advantage of a fiber laser is its short beam wavelength (1,064nm). The wavelength, which is ten times lower than that of the C02 laser, generates high absorption into metals. This makes the fiber laser become a perfect tool for cutting metal sheets of stainless steel, carbon steel, mild steel, aluminum, brass, etc. Fiber laser source is the most advanced laser source for metal cutting, there are a lot of unique advantages, such as free maintenance, lowest power consumption, and longest working lifespan, and the most important is the highest accuracy and efficiency during processing the metal materials.

10KW
Fiber laser cutting machines
Model STC025
Laser source Fiber laser
Laser Power 4KW
Laser Wavelength 1070nm
Max working area 6000x2000mm
Working table Single (double exchange tables optional)
Z axis movement 100mm
Positioning accuracy ±0.01mm
Repeating accuracy ±0.02mm
Max cutting speed 18m/min
Max cutting thickness 1-20mm according to materials
Cooling Water cooling
Laser Cutting Head Autofocus Raytools from Switzerland
Servo Motor & Driver YASKAWA From Japan
Reducer with Gear Shimpo from Japan
Rack Pinion Hiwin from Tanwan(World Brand)
Linear Guiderail Hiwin From Tanwan(world Brand)
Control System CyperCut8000 from Bochu China
Oil Lubricated Automatic lubricated
Gantry System Steel gantry
Pneumatic Control SMC from Japan
Gas controller Double
Machine Dimension 5620*2970*1850 mm/14400*3350*1890 mm
Weight 3500Kg/4200KG
Power Protection Level IP54
Voltage Three Phases 380V, 50HZ

The laser cutting machine using cutting sheet metal processing, aviation, aerospace, electronics, electrical appliances, subway parts, automobiles, grain machinery, textile machinery, engineering machinery, precision parts, ships, metallurgical equipment, elevators, household appliances, craft gifts, tool processing, decoration, advertising, metal processing, kitchen processing, and other manufacturing and processing industries.
