Quick Cutting High Precision Fiber Cleaver / Large Diameter Fiber Cleaver
Quick Cutting High Precision Fiber Cleaver / Large Diameter Fiber Cleaver
Quick Cutting High Precision Fiber Cleaver / Large Diameter Fiber Cleaver
Quick Cutting High Precision Fiber Cleaver / Large Diameter Fiber Cleaver
Quick Cutting High Precision Fiber Cleaver / Large Diameter Fiber Cleaver
Quick Cutting High Precision Fiber Cleaver / Large Diameter Fiber Cleaver
Quick Cutting High Precision Fiber Cleaver / Large Diameter Fiber Cleaver
Quick Cutting High Precision Fiber Cleaver / Large Diameter Fiber Cleaver
Quick Cutting High Precision Fiber Cleaver / Large Diameter Fiber Cleaver
Quick Cutting High Precision Fiber Cleaver / Large Diameter Fiber Cleaver
Specifications
Brand Name :
Sintec Optronics
Delivery Time :
Stock
Payment Terms :
T/T via bank
Features :
High precision, easy operation, portable
Applications :
Fiber cutting, cleaving
Description

High Precision Quick Cutting Fiber Cleaver / Large Diameter Cleaver

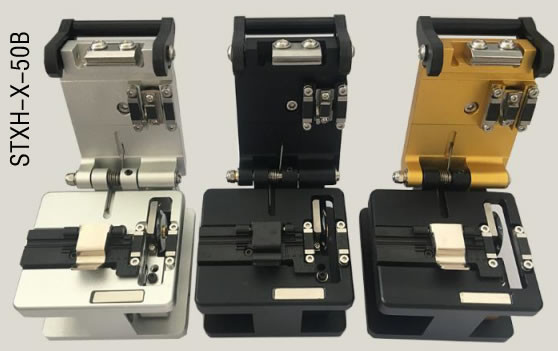

STXH-X-50B Fiber Cleaver

Quick Cutting High Precision Fiber Cleaver / Large Diameter Fiber Cleaver

Specificaitons

Bare fiber diameter 125μm
Coating diameter 0.25mm~0.9mm
Fiber type Single tube fiber and Ribbon fiber(exchangeable)
Cleaved length 5~20mm
Cleaved angle 0.7°
blade life 45000
Mode Semiautomatic
Dimension 65mm(W)×78mm(D)×66mm(H)
Weight 395g
Color White, Golden, Black
Package Fiber Cleaver , User Manual, Carrying Case

Quick Cutting High Precision Fiber Cleaver / Large Diameter Fiber Cleaver

STXH-LFC100 Large Diameter Cleaver

Applicable to cladding diameter 80μm~600μm

FEATURES

  • Applicable to cladding diameter 80μm~600μm fibers

  • Fiber coating diameter could reach 1mm

  • Sharp and durable blade, lifetime more than 20000 times

  • Fiber holder suitable to STXH-S27LDF fusion splice

  • Splicing program 6 modes, data storage 4000 groups

  • User friendly GUI menu, easy to operate

Specifications

Applicable optical fiber Glass optical fibers, capillary
Number of fibers Single
Cladding diameter 80~600μm
Coating diameter 160~3000μm
Fiber clamping Manual clamping
Cleaving length 5~40mm
Blade life 20 cleaving points, 1000 times per point, typical 20000 fibers (Cladding diameter 125 µm) totally
Number of cleaving mode 100
Monitor 5.0 inches color LCD
Dimensions 270*155*165mm
Weight 4.40kg
Power supply AC adapter: ADC-19 Input: AC100 to 240 V(50 to 60 Hz) (max.20 W)
Operation condition 0 to 95% RH and -40 to 80℃
Terminal USB2.0

Quick Cutting High Precision Fiber Cleaver / Large Diameter Fiber Cleaver

Standard Package

Item Quantity Remark
LFC-100 fiber cleaver 1unit
AC adapter 1pc
Power cord 1pc
User manual 1pc
Carrying box 1pc
Upper clamp 3pcs 250/400/600
Lower clamp 3pcs 250/400/600
Tools 1set
