1000W Fiber Laser Cutting Machine For Metal Steel Aluminum
1000W Fiber Laser Cutting Machine For Metal Steel Aluminum
Specifications
Brand Name :
Sintec Optronics
Model Number :
STC022
Payment Terms :
T/T via bank
Delivery Time :
Stock
Cooling Mode :
Water Cooling
Drive Mode :
Stepper Motor
Laser Power :
1000W
Power Supply :
220V/50Hz
Weight :
1000KG
Working Environment :
Indoor
Application :
Cutting For Metal Sheet, Stainless Steel
Description

1000w 1500w 2000w Fiber Laser Cutting Machine For Metal Steel Aluminum

STC022 Precise fiber laser cutting machine Adopt a 1000W fiber laser source and a mini cabinet to save shipping costs.

The control system is CNC. The laser cutter has equipped with a sealed working table to protect the workers when operating the machine.

The laser cutter machine can reach European safety standards. Best choice for high safety request customers.

Laser fiber laser cutting machine is widely used in hardware, precise machinery, automobile components,

glasses clocks and watches, precise cutting, medical equipment, instrument, and other metal-related industry.

The fiber laser cutting machine is suitable for stainless steel, carbon steel, Copper, and Aluminum, to cut and punch,

the cutting speed and incision are both high levels, CN program can process any graphics and text.

Parameter datas

Laser output power 1000W
Laser wavelength 1080 nm
Laser medium Glass fiber with the rate-earth element
Repeat accuracy ±0.01mm
Max cutting speed 18m/min
Max cutting thickness 3-6mm according to material
Output energy regulating 10%~100%
Input electric power for laser ≤2KW
Type of cooling Water cooling
Drive mode Imported servo motor
Transmission mode Imported high precision Rack and Pinion
X Y axis movement 600mm×600 mm (Optional: 200x200mm,300x300mm,400x400mm,500x500mm)
Z axis movement 100mm
Power supply Single phase 220V/50HZ
Contour dimension 1900mm×1550 mm×1800 mm
Weight 800kg

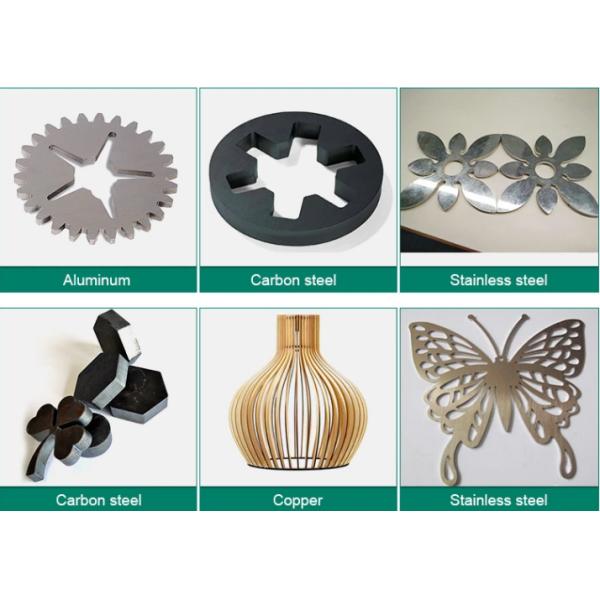

Samples

1000W Fiber Laser Cutting Machine For Metal Steel Aluminum

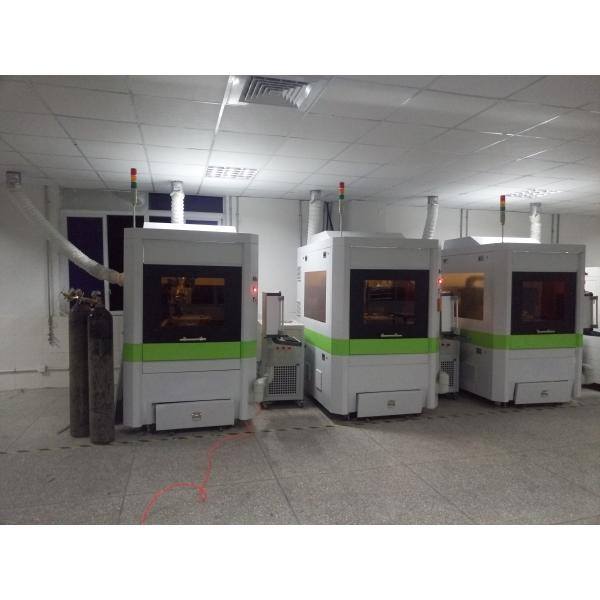

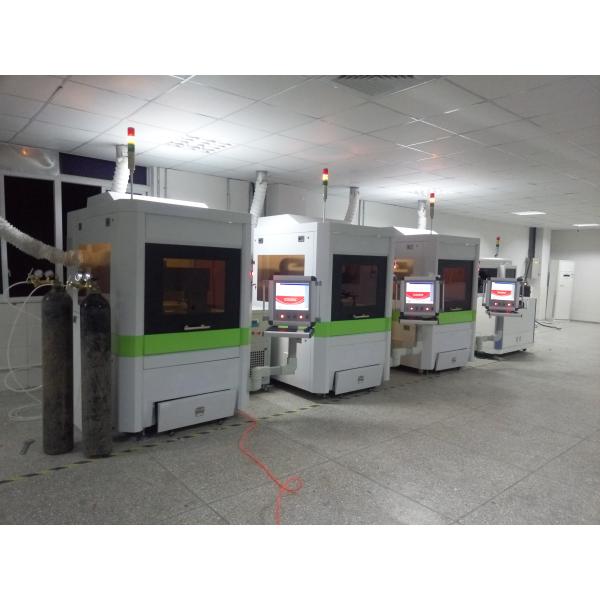

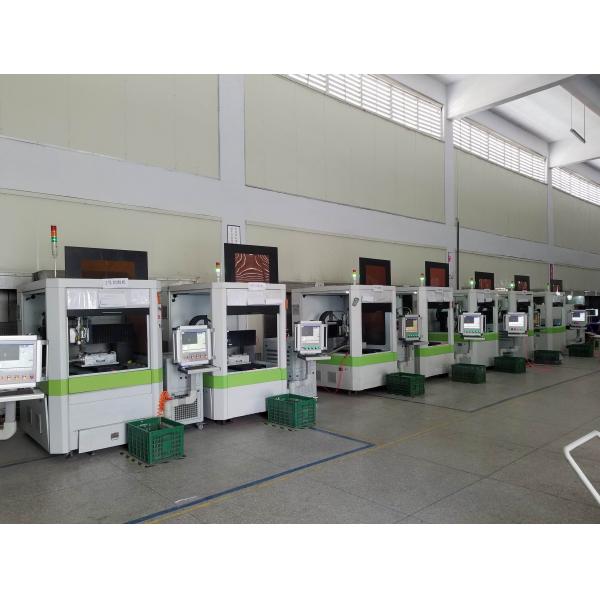

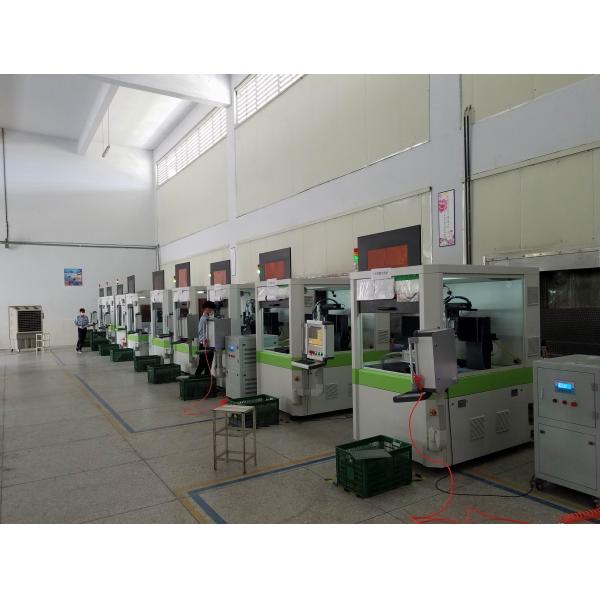

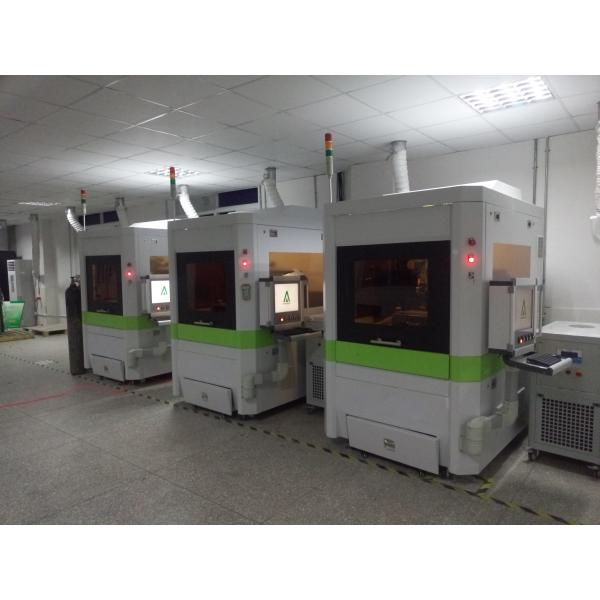

Machine outlook

1000W Fiber Laser Cutting Machine For Metal Steel Aluminum

1000W Fiber Laser Cutting Machine For Metal Steel Aluminum

1000W Fiber Laser Cutting Machine For Metal Steel Aluminum

1000W Fiber Laser Cutting Machine For Metal Steel Aluminum

1000W Fiber Laser Cutting Machine For Metal Steel Aluminum
