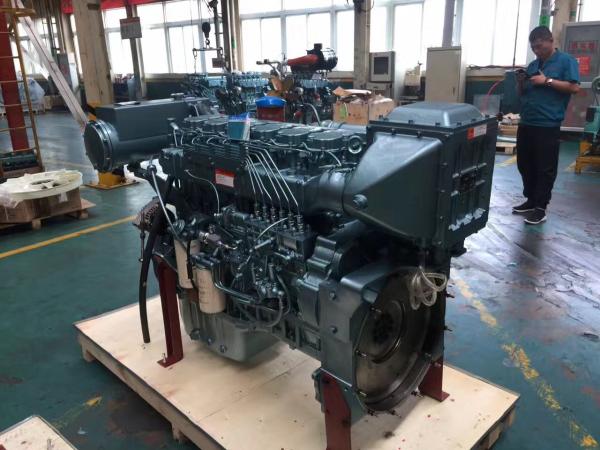

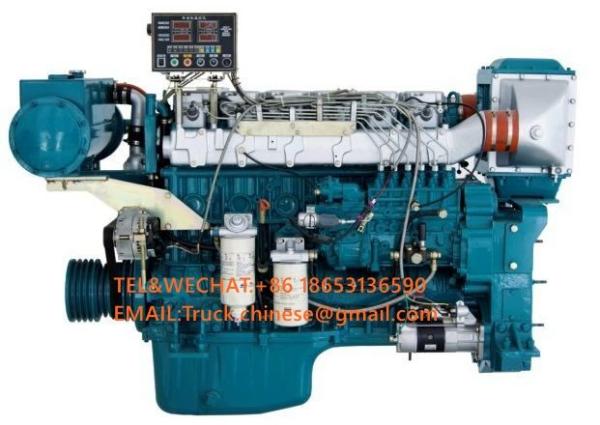

Sinotruk ship motor Steyr engine WD12.42C 301KW 2000rpm each cylinder with one head
Sinotruk ship motor Steyr engine WD12.42C 301KW 2000rpm each cylinder with one head
Sinotruk ship motor Steyr engine WD12.42C 301KW 2000rpm each cylinder with one head
Sinotruk ship motor Steyr engine WD12.42C 301KW 2000rpm each cylinder with one head
Specifications
Brand Name :
SINOTRUK
Model Number :
D12.42
Certification :
ISO9001 CCS
Place of Origin :
CHINA
MOQ :
1
Price :
11000USD
TYPE :
WD12.42
POWER :
301KW
BRAND :
SINOTRUK
Description

Each cylinder has a cylinder head, four valve inlet and exhaust system, reliable work, convenient disassembly.

According to different occasions and requirements of the use ,can choose electric pump or common rail pump.

The built-in type oil cooler, safe and reliable.

Using the rear end of the gear system (flywheel end) to reduce the noise and improve the reliability.

The water outlet pipe and the engine block are integral body, using double type thermostat.

Frame main bearing structure, the whole body rigidity is high, it is advantageous to improve the reliability and service life of the whole machine.

Double circulating cooling system, in which the cooler is arranged on the top of the flywheel housing, the structure is more compact.

Crankshaft belt pulley, water pump and generator by the multi wedge belt drive, the structure is simple.

The output end of the diesel engine is the same as the WD615, which has better generality.

Sinotruk ship motor Steyr engine WD12.42C 301KW 2000rpm each cylinder with one head

Model D1242C

D1242DC
Type Vertical, in-line, water-cooled, four-stroke, direct injection
Air inlet Turbocharged and intercooled
NO. of cylinder 6

Bore×stroke

(mm×mm)

 126×155

NO. of valve/

cylinder

 4
Crankshaft rotation direction(look from the free end) clockwise
Ignition sequence 1-5-3-6-2-4
Displacement (L) 11.596L
Rated fuel consumption rate (g/kW▪ h) 215
Maximum combustion pressure (MPa)

16

14.5
Compression ratio 17:1
Oil fuel consumption ratio(%) 0.4
Starting mode Electric starting
Charge ratio 1.85
Idle speed(r/min) 600±50 700±20
Crankshaft type Integral type
Net weight(kg) 1200

Dimensions

L×W×H (mm)

 1751×947×1277
