Specifications
Brand Name :
Shunda
Model Number :
SMD-90
Certification :
CE
Place of Origin :
China
MOQ :
1 SET
Payment Terms :
L/C, T/T
Supply Ability :
10 SETS /MONTH
Delivery Time :
40 DAYS
Packaging Details :
wood case
production :
paper cup making machine
material :
single and double PE coated paper
output :
220/380v 60HZ 12KW
cup size :
<16oz
speed :
100 pcs/min
cup thickness :
135-450 gram
machine size :
2.5*1.8*1.7m
air compressor :
0.5MPA
Description

Automatic Paper Cup Making Machine For Hot And Cold Drink Cups Paper Cup Forming Machine With Hot air

Advantage:

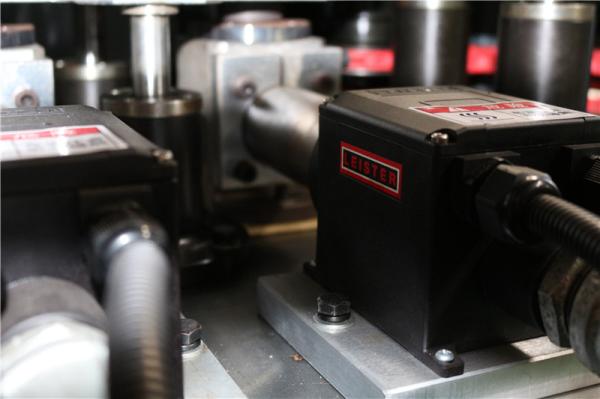

1. Two sets of Leister hot air system original imported from Swiss guarantee the stability of heating.
2.Ultrasonic seal the paper cup body,can produce both single and double PE coated paper.
3.Panasonic photoelectricity track system can checking the every part and report.
4.Open cylindrical divide locating,heigh precision.Gear working make the high speed and stablity.

5.Automatically Oil lubrication system,labor can add oil every 8 month.

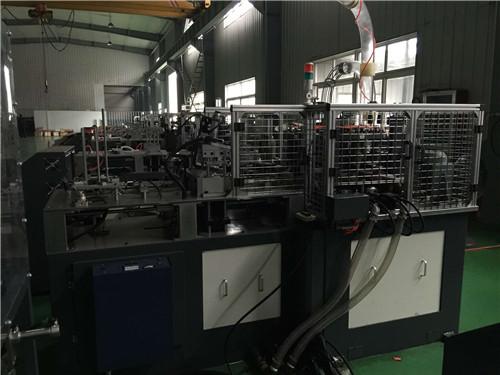

Product Pictures of automatic paper cup machine

Automatic Paper Cup Making Machine For Hot And Cold Drink Cups Paper Cup Forming Machine With Hot Air

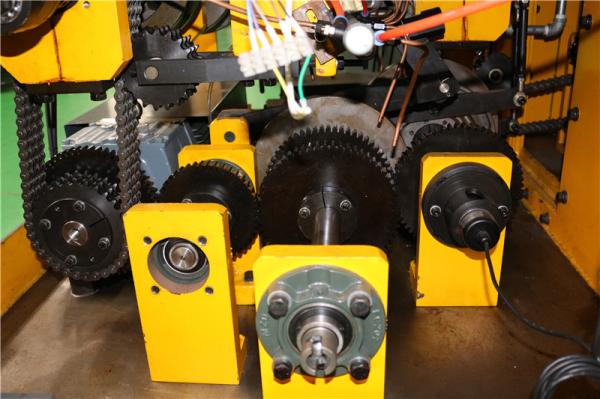

Details:

Automatic Paper Cup Making Machine For Hot And Cold Drink Cups Paper Cup Forming Machine With Hot Air

Automatic Paper Cup Making Machine For Hot And Cold Drink Cups Paper Cup Forming Machine With Hot Air

MODEL

Paper Cup sleeve machine SHUNDA-80A

SPEED

100PCS/MIN

CUP SIZE

< 16OZ

MATERIAL

135-450GRAM

CONFIGURATION

ULTRASONIC&HOT AIR

OUTPUT

380V/220V,60HZ,11kw

AIR COMPRESSOR

0.5 M³/Min

NET WEIGHT

4 TONS

MACHINE SIZE

2500 ×1800 ×1700 MM

COUNTER SIZE

900 ×900 ×1760 MM

FOB SHANGHAI

42000 USD/SET

Paper Cup Making Process:

1. Paper Making Machine make paper roll.

2. Flexo Printing Machine or Paper cup Printing machine to Paper roll

3. Paper die-cutting machine to make paper fan which is paper body

4. We use electrical heater or Evergreen Ultrasonic to send paper fan to the mould and sealing

5. At the same time, the paper bottom automatic cut to round type and sent to the mould

Together with paper fan.

6. Preheat the bottom, heat again the bottom, and curling the top edge of the cup

7. Sealing the bottom and body strongly, Knurling the bottom.

8. Discharging finished paper cup automatically from moulds. Sending to the collector and be

collected and piled and count automatically. Each 50pcs or 100pcs, we can set alarm, so

easy to collect.

After-sale

We will send the guide book and CD with machine together,direct you how to install,adjust and maintain the machine.You may contact us any time for any question,it will be our pleasure to serve you.We support

3 years warranty on machinery,one year on electronic,standard warranty on EVERGREEN ultrasonic.

Test run of the machine&training

We will adjust the machine well until perfect before the delivery, ensure the machine has the perfect performance!

You can come to our factory to study how to run the machine,or we can dispatch technologists to your factory, guiding installation, adjustment for a period.The training for free ,but the other fee must be paid by customer.
