Specifications
Brand Name :
Shunda
Model Number :
SMD-90
Certification :
CE
Place of Origin :
China
MOQ :
1 Set
Payment Terms :
L/C, T/T
Delivery Time :
25-35 Working Days
Packaging Details :
Wooden Pallet for paper cup making machine
Maz Rate :
160 Pcs/Min
Material :
Single/Double PE Coated Paper
Paper Weight :
135-450 gsm
Cup Range :
Hot and Cold Drink Cup
Cup Size :
2-46 oz (One Size)
Weight :
3400Kg
Description

Fully Automatic Paper Cup Machine Hot Drink Cup Paper Cup Making Machine

Specifications:

Model SMD-90 　 　 　
Capacity pcs/min 100-120 90-110 80-100
Size Range mm(max) Top diameter:90
Bottom Diameter:80
Height:140		 Top diameter:110
Bottom Diameter:80
Height:170		 Top diameter:125
Bottom Diameter:100
Height:170
Suitable Paper Thickness gsm 135-450 　 　
Sealing Method 　 Ultrasonic and hot air system 　 　
Running Power KW 10 11 12
Air compressor 　 0.4m²/Min. 0.5MPa 0.5m²/Min. 0.5MPa 0.6m²/Min. 0.5MPa
Net weight Kgs 3400 3500 3600
Machine dimension mm 2500*1800*1700 2600*1800*1800 2700*1800*1800
Collector Dimension mm 900*900*1760 1000*900*1860 1100*900*1860

Description:

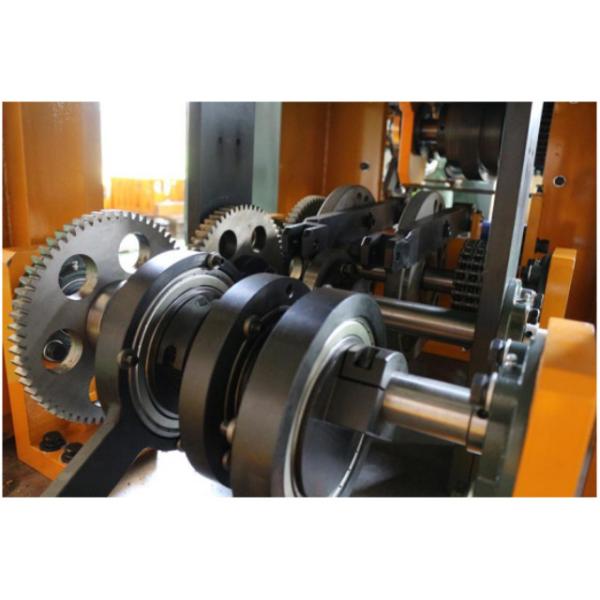

SMD-90 paper cup making machine is an improved and upgraded machine of the low speed types. In order to realize optimal functions and performance, it utilizes open cam design, interrupted division, gear drive and longigudinal axis structure.

It could produce 3-46 oz cold and hot drink paper cup, such as coffee cup ,tea cup , water cups etc .especially it is popular for making small coffee cup 3oz for Algeria market.

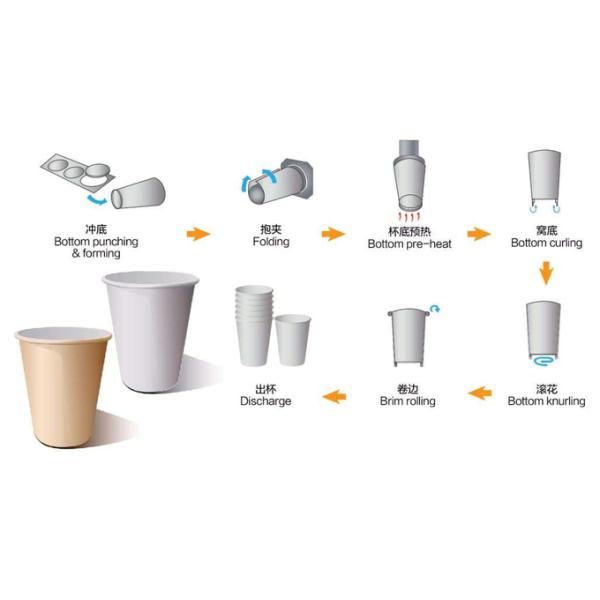

The processs of paper cup making:

Fully Automatic Paper Cup Machine Hot Drink Cup Paper Cup Making Machine

Shinning points for this model SMD-90 Paper cup making machine

a.Advanced double barrel cam indexing

b.PLC colsed-loop control system

c.Automatic oil lubrication system

d.Cup inspection and intelligent control

e. Servo control for bottom feeding

f. Flameless hot air sealing

After Service:

1. The CD and service&support guide booklet will be sent with machine to guide the installation process

works,adjust the whole machine,production,avoid or solve the problem which the buyer will face.
2.Test run of the machine&training:
We will adjust the machine well for one week before the deliverying,ensure the machine has the perfect

performace!
3.We can dispatch technologists to buyer’s factory,guiding installation,adjustment for a period,the buyer

incharge of the salary, traffice fee,boarding and lodging, communication.
4.Training of buyer in China:
We supply the free training of buyer,the training won’t stop until the buyer control the whole lesson!The

cost of air ticket,boarding and lodging should provided by buyer
5.We supply the consumable spare parts for free for two years use

Our QC team:

A QC team with more than 20 professional and technical personnel. To ensure 100% products checking.
Material: Strictly control of material using, meet international requested standards.
Semi-finished products inspection: Product inspection before 100% finished.
Production line test: With work team or data engineer who will inspect machines and lines at fixed period.
Finished Product Inspection: Quality and property test before products are packed and loaded.
