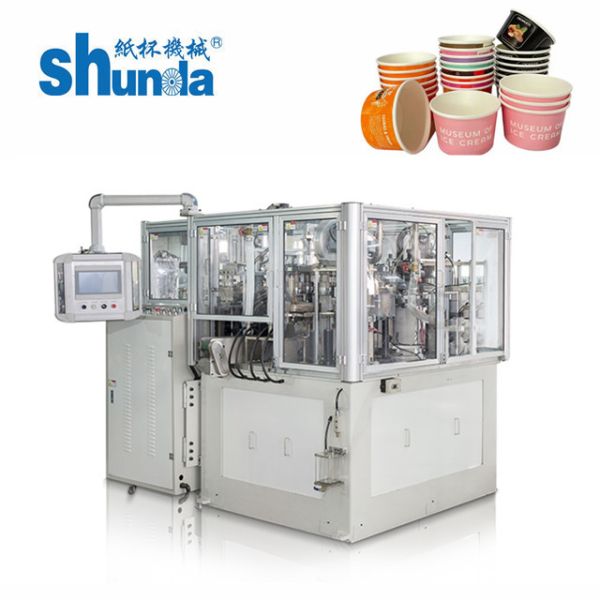

Shunda High Speed Paper Cup Machine For Single / Double PE Paper
Shunda High Speed Paper Cup Machine For Single / Double PE Paper
Shunda High Speed Paper Cup Machine For Single / Double PE Paper
Shunda High Speed Paper Cup Machine For Single / Double PE Paper
Specifications
Brand Name :
Shunda
Model Number :
SMD-90
Place of Origin :
CHINA
MOQ :
1 set paper cup machine
Price :
Negotiable price for different size
Packaging Details :
wooden plate for paper cup machine
Delivery Time :
25-30 days
Payment Terms :
T/T L/C
Max Speed :
160 Cups/min
Model :
SMD-90
Brand :
Shunda
Inspection system :
Keyence
Output :
14Kw
Machine Weight :
3400Kg
Heating System :
Hot Air System
Color :
Custom
Air Consumption :
0.5m3/min
Name :
Paper cup machine
Description

Product Description:

Shunda High Speed Paper Cup Machine For Single / Double PE Paper

SMD-90 double turnplate high speed paper cup machine is fit for making hot and cold drinks cup.This model can fit for making 2oz to 16oz cup sizes, new driving system and with cup detection system as option by customers.

Overall, the SMD-90 paper cup machine is a reliable and efficient machine that can help streamline your paper cup production process. Its high-speed production rate, low air consumption, and compact design make it an excellent investment for any business in need of a high-quality paper cup machine.

Technical Parameters:

Model SMD-90
Capacity pcs/min 100-120 90-110 80-100
Size Range mm(max) Top diameter:90
Bottom Diameter:80
Height:140		 Top diameter:110
Bottom Diameter:80
Height:170		 Top diameter:125
Bottom Diameter:100
Height:170
Suitable Paper Thickness gsm 135-450　　
Sealing Method 　Ultrasonic and hot air system　　
Running Power KW 10 11 12
Air compressor 　 0.4m²/Min. 0.5MPa 0.5m²/Min. 0.5MPa 0.6m²/Min. 0.5MPa
Net weight Kgs 3400 3500 3600
Machine dimension mm 2500*1800*1700 2600*1800*1800 2700*1800*1800
Collector Dimension mm 900*900*1760 1000*900*1860 1100*900*1860

Cup size range:

Shunda High Speed Paper Cup Machine For Single / Double PE Paper

Advantages Technology

Advanced double barrel cam indexing

PLC closed-loop control system

Automatic oil lubrication system

Cup inspection and intelligent control

Servo control for bottom feeding

Flameless hot air sealing

Support and Services:

1 The CD and service&support guide booklet will be sent with machine to guide the installation process works,adjust the whole machine,production,avoid or solve the problem which the buyer will face.
2. Test run of the machine&training:
We will adjust the machine well for one week before the deliverying,ensure the machine has the perfect performace!
3. We can dispatch technologists to buyer’s factory,guiding installation,adjustment for a period,the buyer incharge of the salary, traffice fee,boarding and lodging, communication.
4.Training of buyer in China:
We supply the free training of buyer,the training won’t stop until the buyer control the whole lesson!The cost of air ticket,boarding and lodging should provided by buyer
5. We supply the consumable spare parts for free for two years use

Packing and Shipping:

Product Packaging:

The High Speed Paper Cup Machine is carefully packaged in a wooden box to ensure safe delivery. The machine is secured with foam and other protective materials to prevent any damage during shipping.

Shipping:

Shipping is available worldwide and will be calculated based on the destination and weight of the package. We use reliable and reputable carriers to ensure that your order is delivered on time and in good condition.

FAQ:

Q: What is the brand name of the paper cup machine?

A: Shunda is our brand since 1998.

Q: What is the minimum order quantity for the paper cup machine?

A: The minimum order quantity for the paper cup machine is 1 set.

Q: What is the packaging detail for the paper cup machine?

A: The packaging detail for the paper cup machine is a wooden plate.

Q: What is the delivery time for the paper cup machine?

A: The delivery time for the paper cup machine is 25-30 days.
