30x52mm Mesh Flexible X Tend Rope Wire Mesh Stainless Steel Material For Aviary And Balcony
30x52mm Mesh Flexible X Tend Rope Wire Mesh Stainless Steel Material For Aviary And Balcony
Specifications
Brand Name :
boss metal
Model Number :
stainless steel wire rope mesh
Certification :
iso
Place of Origin :
china
MOQ :
10sqm
Price :
stainlelss steel cable mesh
Payment Terms :
Western Union,T/T
Supply Ability :
10000sqm per day
Delivery Time :
5 days
Description

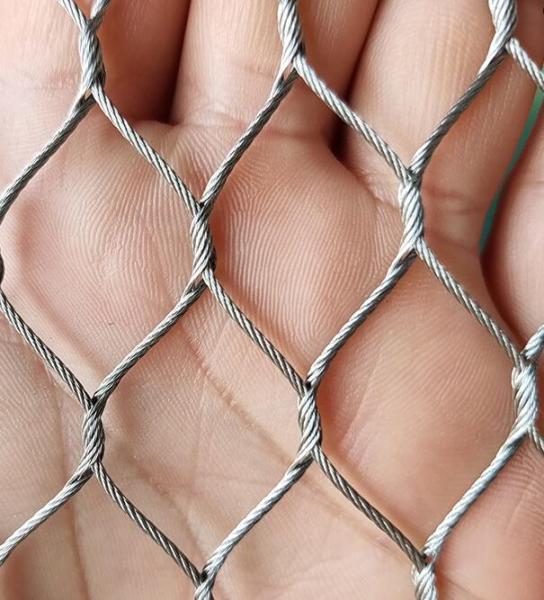

30x52mm mesh flexible X tend rope wire mesh stainless steel material for aviary and balcony

From the perspective of safety, the stainless steel wire mesh railing is strong and firm, which can effectively prevent people from falling. It can be designed like a railing in a traditional way, or it can also be designed as a protective wall extending from the ceiling to the ground. The excellent visibility of stainless steel rope mesh can not only create a magnificent and transparent space effect, but also make designer’s diverse inspiration translated into reality.

Item

Stainless Steel Ferrule Rope Mesh

30 40 60 80 120mm 316 316L ss rope mesh for zoo

Material

Rope, Stainless Steel 304 316

Ferrules, Nickel, stainless steel, Tinned Copper

Specification

Mesh,25mmx43mm to 200mm x 346mm

Cable Strand, 7 X 7 ( 1.5mm, 2mm.2.5mm ) ,7 x 19( 3mm,4mm)

Feature

High tensile strength, Bear strong airflow

Competitive cost, easy installation.

Application

Used for Zoo

Customized

Available

Sample

Available


The stainless steel rope net is hand-made with high quality stainless steel rope.

The main materials for processing stainless steel rope are 304, 304L, 316, 316L and so on. Common specifications for stainless steel rope: wirediameter:

1.2 mm, 1.5 mm, 2 mm, 3 mm, 4 m sides: 25 mm, 30 mm, 40 mm, 50 mm,

60 mm, 70 mm, 80 mm, 90 mm, 100 mm, 120 mm, 150 mm, etc.

Special specifications can be customized.

The specification of stainless steel ferrule rope mesh

CodeRope ConstructionRope DiameterApertureBreak Force
JY017*19INCHMMMMKN
JY027*191/83.2120*2087.38
JY037*191/83.2100*1737.38
JY047*71/83.290*1567.38
JY057*73/322.4100*1734.18
JY067*73/322.490*1564.18
JY077*73/322.480*1394.18
JY087*73/322.470*1214.18
JY097*75/642.0100*1733.17
JY0107*75/642.090*1563.17
JY0117*75/642.0801*393.17
JY0117*75/642.070*1213.17
JY0127*71/161.680*1392.17
JY0137*71/161.670*1212.17
JY0147*71/161.660*1042.17
JY0157*71/161.6518*72.17
JY0167*73/641.280*1391.22
JY0177*73/641.260*1041.22
JY0187*73/641.250*871.22
JY0197*73/641.240*691.22
