Ss304 Grade Stainless Steel Farm Fence Wire Mesh 7×19 Type Prevent Suicide
Ss304 Grade Stainless Steel Farm Fence Wire Mesh 7×19 Type Prevent Suicide
Specifications
Brand Name :
boss metal
Model Number :
stainless steel wire mesh
Certification :
iso
Place of Origin :
china
MOQ :
10sqm
Price :
stainless steel wire mesh
Payment Terms :
Western Union,T/T
Supply Ability :
10000sqm per day
Delivery Time :
5 days
Description

SS304 grade stainless steel wire rope mesh wire mesh 7 × 19 type Prevent Suicide

Stainless steel wire rope mesh:

Our stainless steel wire rope mesh products are supplied in two main series: Inter-woven and Ferrule Type. Inter-woven

mesh are hand-woven which was also called hand-woven mesh is made from fine s.s.wire rope .

The stainless steel wire rope mesh construction is 7 x 7 or 7 x 19 and made from AISI 304 or AISI 316 material group.

This mesh has strong tensile strength , high flexibility,high transparence and wide span.

The stainless steel wire rope mesh has unreplacable advantages compared with other mesh products in many aspects

like practicability, security, aesthetic property and durability etc. Its more and more appreciated by garden designers and

architect all over the world.

Stainless steel wire rope meshgoodfeatures show to you:

1. high strength,

2. strong toughness,

3. free-angles curving and fold,

4. easy for transportation and installment.

5. anti-corrosive,resist the rust, can be repeated use.

Stainless steel wire rope mesh widelyapplication:

1. Green Facade - Cable System for Most Climbing Plants

2. Aviary Netting - Lightweight, Durable and Long Lasting

3. Cable Zoo Mesh - Solution to Enclosing Most Animals

4. Helipad Safety Net - Modular Heliport Webbing

5. Safety Net - Structural Measure to Prevent Suicide

6. Cable Mesh - Excellent Solution to Safety

7. Steel Mesh Balustrade - bridge, stair, balcony, path

Stainless steel wire rope mesh specification:

CodeRope ConstructionRope DiameterOpening SizeBreaking Force
InchmmInchmmKN
BR-017 × 191/83.24.7" × 4.7"120 × 1207.38
BR-027 × 191/83.24" × 4"102 × 1027.38
BR-037 × 191/83.23.6" × 3.6"90 × 907.38
BR-047 × 191/83.23" × 3"76 × 767.38
BR-057 × 191/83.22" × 2"51 × 517.38
BR-067 × 73/322.44" × 4"102 × 1024.18
BR-077 × 73/322.43.6" × 3.6"90 × 904.18
BR-087 × 73/322.43" × 3"76 × 764.18
BR-097 × 73/322.42.4" × 2.4"60 × 604.18
BR-107 × 73/322.42" × 2"51 × 514.18
BR-117 × 75/6423" × 3"76 × 763.17
BR-127 × 75/6422.4" × 2.4"60 × 603.17
BR-137 × 75/6422" × 2"51 × 513.17
BR-147 × 75/6421.5" × 1.5"38 × 383.17
BR-157 × 71/161.63" × 3"76 × 762.17
BR-167 × 71/161.62" × 2"51 × 512.17
BR-177 × 71/161.61.5" × 1.5"38 × 382.17
BR-187 × 71/161.61.2" × 1.2"30 × 302.17
BR-197 × 71/161.61" × 1"25 × 252.17
BR-207 × 73/641.22" × 2"51 × 511.22
BR-217 × 73/641.21.5" × 1.5"38 × 381.22
BR-227 × 73/641.21.2" × 1.2"30 × 301.22
BR-237 × 73/641.21" × 1"25 × 251.22
BR-247 × 73/641.20.8" × 0.8"20 × 201.22


























Stainless steel wire rope mesh:

Stainless steel wire rope mesh also called knotted rope mesh ( or woven rope mesh ) and ferrule rope mesh

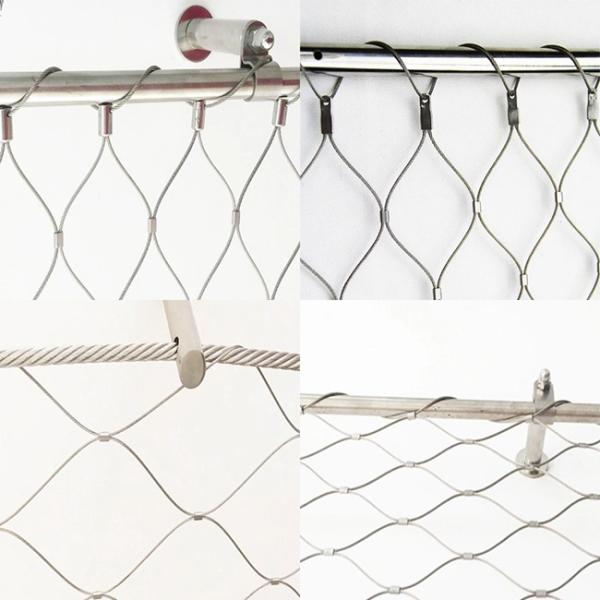

Show ourStainless steel wire rope meshfor reference:
