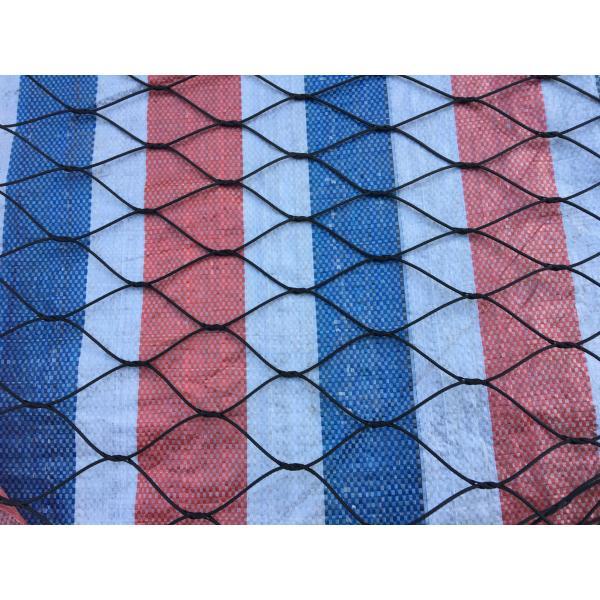

Black Oxide Flexible Wire Rope Zoo Wire Mesh Grade 316 Stainless Steel Cable Netting​
Black Oxide Flexible Wire Rope Zoo Wire Mesh Grade 316 Stainless Steel Cable Netting​
Black Oxide Flexible Wire Rope Zoo Wire Mesh Grade 316 Stainless Steel Cable Netting​
Black Oxide Flexible Wire Rope Zoo Wire Mesh Grade 316 Stainless Steel Cable Netting​
Specifications
Brand Name :
boss metal
Model Number :
stainless steel wire mesh
Certification :
iso
Place of Origin :
china
MOQ :
10sqm
Price :
stainless steel wire mesh
Payment Terms :
Western Union,D/P,T/T
Supply Ability :
10000sqm per day
Delivery Time :
5 days
Description

Black Oxide Flexible Wire Rope Mesh Grade 316 Stainless Steel Cable Netting​

Black Oxide Mesh Specification :

Black Oxide Mesh
ModelWire DiameterMesh OpeningNormal Break
inchmminchmm1bs.
YT-12203/641.24/5 x 4/520 x 20270
YT-12253/641.21x125.4 x 25.4270
YT-12303/641.21.2 x 1.230 x 30270
YT-12383/641.23/2 x 3/238 x 38270
YT-16251/161.61 x 125.4 x 25.4480
YT-16301/161.61.2 x 1.230 x 30480
YT-16381/161.63/2 x 3/238 x 38480
YT-16501/161.62 x 251 x 51480
YT-16761/161.63 x 376 x 76480
YT-20385/642.03/2 x 3/238 x 38676
YT-20505/642.02 x 251 x 51676
YT-20605/642.02.4 x 2.460 x 60676
YT-20765/642.03 x 376 x 76676
YT-24503/322.42 x 251 x 51920
YT-24603/322.42.4 x 2.460 x 60920
YT-24763/322.43 x 376 x 76920
YT-24903/322.43.55 x 3.5590 x 90920
YT-24103/322.44 x 4102 x 102920
YT-32501/83.22 x 251 x 511600
YT-32761/83.23 x 376 x 761600
YT-32901/83.23.55 x 3.5590 x 901600
YT-32101/83.24 x 4102 x 1021600
YT-32121/83.24.75 x 4.75120 x 1201600

Black Oxide Wire Rope Mesh Details

Mesh TypeFerruled or Knotted
Mesh Angle60 degree in rhombus shape
Mesh OrientationHorizontal or Vertical
Panle MeasurementCustom-made in width and lenght
FinishedBlack Oxide
ApplicationBalustrade , Facade Cladding , Animal Enclosure , Aviary Netting

Wire rope black oxide mesh is manufactured from high-grade stainless steel cables of material class 1.4401, AISI316 / AISI316L ;


Stainless steel wire rope mesh is custom manufactured to suit your balustrade, railing or architecture application ;


Finished diamond mesh style when it is stretched at 60 degree angle ;


Mesh can be applied in either a vertical or horizontal direction, again dependent on the design ;


Mesh sizes range from 20mm to 120mm or bigger with stainless cable diameters from 1.2mm to 4.0 mm.

Stainless Steel Cable Mesh specification
Various cable diameters:1.2 to 4.0 mm
Various mesh size:25 x 43mm to 200 x 346 mm
Various cable structures:7 x7, 7 x19, 1X19
Stainless Steel Cable Mesh type
Inter-woven type
Ferrule TypeAluminum ferrule
Ferrule TypeStainless steel ferrule
Ferrule TypeNickel Plated copper ferrule type

Applications

Stainless steel black oxide wire rope mesh is usually used in animal or bird cages, which is also called zoo mesh.The mesh has strong tensile strength and high flexibility,high transparence and wide span. The flexible s.s. cable mesh has unreplacable advantages compared with other mesh products in many aspects like practicability, security, aesthetic property and durability etc.
