High Precision T04E10 Diesel Turbocharger 466742-0006 for Earth Moving 4400 Loader TD71G Engine
High Precision T04E10 Diesel Turbocharger 466742-0006 for Earth Moving 4400 Loader TD71G Engine
High Precision T04E10 Diesel Turbocharger 466742-0006 for Earth Moving 4400 Loader TD71G Engine
High Precision T04E10 Diesel Turbocharger 466742-0006 for Earth Moving 4400 Loader TD71G Engine
High Precision T04E10 Diesel Turbocharger 466742-0006 for Earth Moving 4400 Loader TD71G Engine
High Precision T04E10 Diesel Turbocharger 466742-0006 for Earth Moving 4400 Loader TD71G Engine
High Precision T04E10 Diesel Turbocharger 466742-0006 for Earth Moving 4400 Loader TD71G Engine
High Precision T04E10 Diesel Turbocharger 466742-0006 for Earth Moving 4400 Loader TD71G Engine
High Precision T04E10 Diesel Turbocharger 466742-0006 for Earth Moving 4400 Loader TD71G Engine
High Precision T04E10 Diesel Turbocharger 466742-0006 for Earth Moving 4400 Loader TD71G Engine
High Precision T04E10 Diesel Turbocharger 466742-0006 for Earth Moving 4400 Loader TD71G Engine
High Precision T04E10 Diesel Turbocharger 466742-0006 for Earth Moving 4400 Loader TD71G Engine
High Precision T04E10 Diesel Turbocharger 466742-0006 for Earth Moving 4400 Loader TD71G Engine
High Precision T04E10 Diesel Turbocharger 466742-0006 for Earth Moving 4400 Loader TD71G Engine
Specifications
Brand Name :
TONGLINT
Model Number :
TO4E10
Certification :
TS16949
Place of Origin :
Jiangsu, China
MOQ :
1 SET
Payment Terms :
T/T, Western Union, PayPal
Supply Ability :
5000 sets/ Month
Delivery Time :
5-10 working days
Packaging Details :
Carton
Product :
Turbo Turbocharger
Model :
TO4E10
Part Number :
466742-5006S
OEM Number :
4881601
Material :
K418 Turbine Wheel; C355 Compressor Wheel
Engine :
TD71G
Description

Earth Moving 4400 Loader T04E10 Turbocharger Turbo 466742-0006 for TD71G Engine

Specifications:

Part Number 466742-5006S
Previous Version 466742-0006, 466742-6
OE number 4881601
Description 4400 Loader Earth Moving
CHRA 408105-0259 (408105-5259S)
Turbo Model T04E04
Model 4400 Loader
Engine TD71G
Displacement 67.2L, 6720 ccm, 6 Cylinders
KW 208
Fuel Diesel
Angle α (compressor housing) 338
Angle β (turbine housing) 356
Bearing Housing 430027-0025
Turbine Wheel 446905-0004
Comp. Wheel 442293-0006
Back plate 408045-0031
Heat shield Number 409299-0001
Repair Kit 468265-0000
Turbine Housing 410424-0102
Compressor Cover 443219-0003
Turbine Housing AR 0.58
Gasket (turbine inlet) 409039-0000
Gasket (turbine outlet) 210226
Gasket oil inlet 210023
Gasket (oil outlet) 210021
Replaced By 466742-0003


Applications:

1985- Earth Moving 4400 Loader TD71G

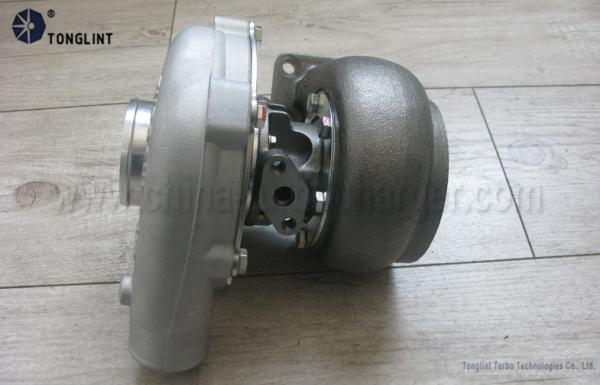

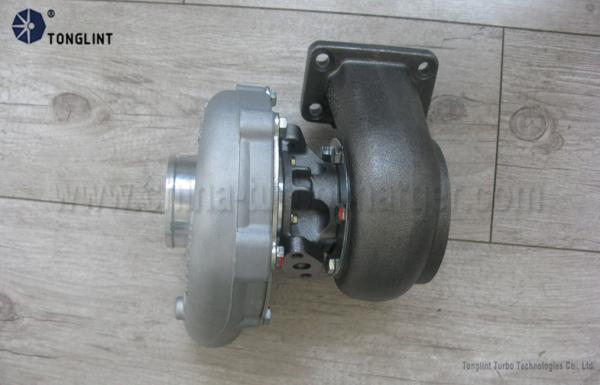

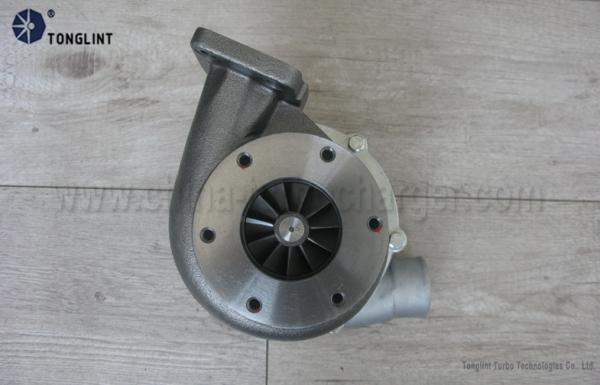

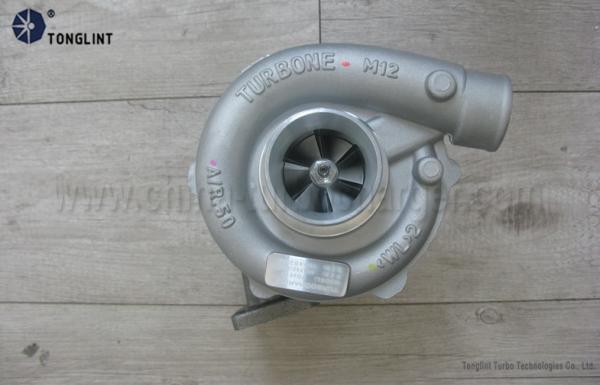

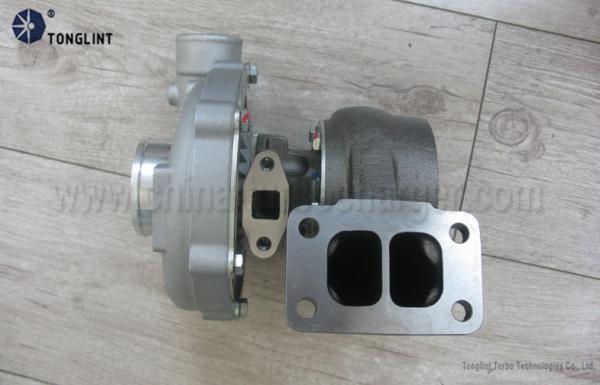

Pictures:
High Precision T04E10 Diesel Turbocharger 466742-0006 for Earth Moving 4400 Loader TD71G EngineHigh Precision T04E10 Diesel Turbocharger 466742-0006 for Earth Moving 4400 Loader TD71G Engine


Shipping, Payment And Packing
1. Deliver Time: Normally about 5-10 working days after receiving your payment when in stock
2. Shipping Ways: DHL, FedEx, UPS, EMS, TNT, etc.
3. Payment Methods: T/T,Western Union,PayPal
4. Packing Details: Neutral Packing

Develop Service
We can design, process and produce complete turbochargers according to the drawings and sample.

Customized Service
For clients in need of turbochargers, it is strongly recommended to provide us the model and assembly no. of products. If you have some special requirements fro a certain one, please specify your requests and technical parameters.

Other Turbocharger:

TO4B

465044-5251

　

KOMATSU

TO4B

465044-5261

　

KOMATSU

TO4B

465570-0002

　

TD70/465570-0002

TO4B

700836-5001

6207-81-8331

KOMATSU

TO4B

700836-5001

6207-81-8331

KOMATSU

TO4B18

409570-0016

313183

Navistar

TO4B27

409300-0010

3520963299

BENZ OM352A 16.8L

TO4B27

409300-0001

3520961599

OM352A

TO4B53

465044-5261

6137-82-8200

KOMATSU

TO4B55

465820-0000

　

SCANIA

TO4B59

465044-5251

6207-81-8210

KOMATSU

TO4B59

465044-5261

　

PC200-3 AR 1.00

TO4B59

465044-0231

6135-81-8201

KOMATSU PC100

TO4B81

465366-0005

3520965399

BENZ OM352A

TO4B91

409410-0006

7N4651

930-950

TO4B91

408077-5102

　

　

TO4E

466780-0001

　

　

TO4E08

466704-0203

　

KOMATSU

TO4E08

466704-5103

6222-81-8210

KOMATSU PC300/300-5

TO4E08

466704-5203

6222-81-8210

KOMATSU PC300/300-5

TO4E15

466670-0013

6222-83-8171

Komatsu PC300-6

TO4E66

466646-0019 (366.096.4199)

　

　

TO4E66

466646-5041

366.096.02.99

BENZ OM366

TO4E66-3

466646-5022

　

BENZ

TO4E66-5

465600-0005

　

MERC.BENZ
