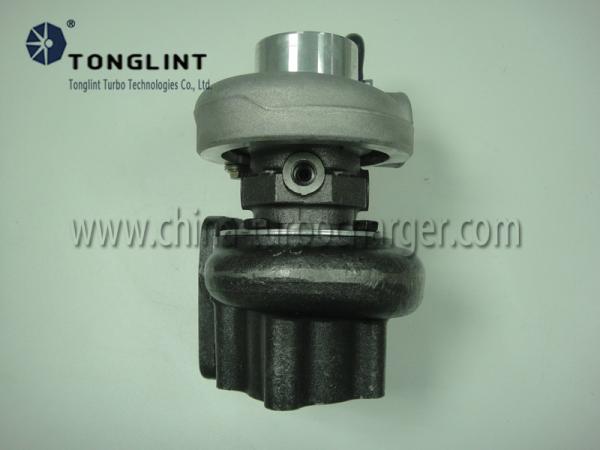

Isuzu NPR/NQR Truck Diesel Turbo TB2568 466409-0002 Turbocharger for 4DB2 4BD2-TC Engine
Isuzu NPR/NQR Truck Diesel Turbo TB2568 466409-0002 Turbocharger for 4DB2 4BD2-TC Engine
Isuzu NPR/NQR Truck Diesel Turbo TB2568 466409-0002 Turbocharger for 4DB2 4BD2-TC Engine
Isuzu NPR/NQR Truck Diesel Turbo TB2568 466409-0002 Turbocharger for 4DB2 4BD2-TC Engine
Isuzu NPR/NQR Truck Diesel Turbo TB2568 466409-0002 Turbocharger for 4DB2 4BD2-TC Engine
Isuzu NPR/NQR Truck Diesel Turbo TB2568 466409-0002 Turbocharger for 4DB2 4BD2-TC Engine
Isuzu NPR/NQR Truck Diesel Turbo TB2568 466409-0002 Turbocharger for 4DB2 4BD2-TC Engine
Isuzu NPR/NQR Truck Diesel Turbo TB2568 466409-0002 Turbocharger for 4DB2 4BD2-TC Engine
Isuzu NPR/NQR Truck Diesel Turbo TB2568 466409-0002 Turbocharger for 4DB2 4BD2-TC Engine
Isuzu NPR/NQR Truck Diesel Turbo TB2568 466409-0002 Turbocharger for 4DB2 4BD2-TC Engine
Isuzu NPR/NQR Truck Diesel Turbo TB2568 466409-0002 Turbocharger for 4DB2 4BD2-TC Engine
Isuzu NPR/NQR Truck Diesel Turbo TB2568 466409-0002 Turbocharger for 4DB2 4BD2-TC Engine
Specifications
Brand Name :
TONGLINT
Model Number :
TB2568
Certification :
TS16949
Place of Origin :
Jiangsu, China
MOQ :
1 SET
Payment Terms :
T/T, Western Union, PayPal
Supply Ability :
5000 sets/ Month
Delivery Time :
5-10 working days
Packaging Details :
Carton
Product :
Turbo Turbocharger
Model :
TB2568
Part Number :
466409-5002S
OEM Number :
2901095100, 8971056180, 8971056181, 2901095100
Material :
K418 Turbine Wheel; C355 Compressor Wheel
Engine :
4DB2 4BD2-TC
Description

Isuzu NPR/NQR Truck Turbo TB2568 466409-0002 Turbocharger for 4DB2 4BD2-TC Engine

Specifications:

Turbo Model TB2568
Part Number 466409-5002S, 466409-0002, 466409-0001, 466409-2, 466409-1
OEM Number 2901095100, 8971056180, 8971056181, 2901095100
Description Truck (NKR, NPR, NQR)
Engine Model 4DB2, 4BD2-TC
CHRA 430425-0059 (430425-5059S)
Bearing Housing 446931-0006
Turbine Wheel 435257-0002
Comp. Wheel 445347-0003
Back plate 430612-0003
Heat shield 431055-0003
Repair Kit 709143-0001
Turbine Housing 430609-0207
Compressor Cover 409589-0394
Actuator 430819-0336

Applications:

1994-98 Isuzu Truck NPR / NQR with 4DB2 Engine

Pictures:

Isuzu NPR/NQR Truck Diesel Turbo TB2568 466409-0002 Turbocharger for 4DB2 4BD2-TC EngineIsuzu NPR/NQR Truck Diesel Turbo TB2568 466409-0002 Turbocharger for 4DB2 4BD2-TC Engine

Shipping, Payment And Packing

deliver time normally about 5-10 working days after receiving your payment
shipping ways

small order:air express(DHL,FEDEX,UPS,EMS, TNT,etc)

big order: by sea
payment methods T/T,western union,paypal
packing details strong carton box, neutral packing

Develop Service

We can design, process and produce complete turbochargers according to clients' drawings and sample.

Customized Service

For clients in need of turbochargers, it is strongly recommended to provide us the model and assembly no. of products. If you have some special requirements fro a certain one, please specify your requests and technical parameters.

TIPS:

A turbocharger, often called a turbo, is a small radial fan pump driven by the energy of the exhaust gases of an engine. A turbocharger consists of a turbine and a compressor on a shared shaft. The turbine section of a turbocharger is a heat engine in itself. It converts the heat energy from the exhaust to power, which then drives the compressor, compressing ambient air and delivering it to the air intake manifold of the engine at higher pressure, resulting in a greater mass of air entering each cylinder. In some instances, compressed air is routed through an intercooler before introduction to the intake manifold. Because a turbocharger is a heat engine, and is converting otherwise wasted exhaust heat to power, it compresses the inlet air to the engine more efficiently than a supercharger.
