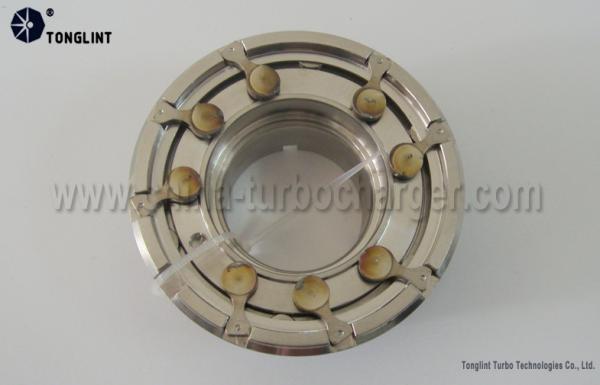

Genuine BV39 5439-970-0022 Steel Turbo Nozzle Ring for Seat Leon Auto Parts
Genuine BV39 5439-970-0022 Steel Turbo Nozzle Ring for Seat Leon Auto Parts
Genuine BV39 5439-970-0022 Steel Turbo Nozzle Ring for Seat Leon Auto Parts
Genuine BV39 5439-970-0022 Steel Turbo Nozzle Ring for Seat Leon Auto Parts
Specifications
Brand Name :
TONGLINT
Model Number :
BV39 5439-970-0022
Certification :
TS16949
Place of Origin :
CHINA
MOQ :
20 sets
Price :
Negotiable
Payment Terms :
T/T, Western Union
Packaging Details :
Individual package / Neutral / Tonglint Brand
Commodity :
Nozzle Ring
Model :
BV39
Tonglint No. :
TLNR1023
Fit for Turbo :
5439-970-0022 / 5439-970-0027 / 5439-970-0030
Application :
Seat Leon
Material :
Steel
Sample :
Available
OE Service :
Available
Description

Genuine BV39 5439-970-0022 Steel Turbo Nozzle Ring for Seat Leon Auto Parts

Specifications:

Turbo Model

BV39

Tonglint Number

TLNR1023

Print Code

TT44.3ZL

Fit for Turbo

5439-970-0022 / 5439-970-0027 / 5439-970-0030 / 5439-988-0022 / 5439-988-0027 / 5439-988-0030

Application

Seat Leon 1.8 T Cupra R

Other related BV39 / KP39 Nozzle Rings

Tonglint Code Print Code Model Turbo Part Number Blade Qty
TLNR1021 TT44.5 BV39

5439-970-0005 / 5439-970-0011 / 5439-988-0005 /

5439-988-0011

 8
TLNR1022 TT44.7 KP39 5439-970-0007 / 5439-988-0007 8
TLNR1023 TT44.3ZL BV39

5439-970-0022 / 5439-970-0027 / 5439-970-0030 /

5439-988-0022 / 5439-988-0027 / 5439-988-0030

 8
TLNR1024 TT44.3L BV39 5439-970-0020 / 5439-988-0020 8

Description:

A variable nozzle turbocharger has a ring of vanes mounted within the annular passageway through which exhaust gases flow from a volute to the turbine rotor. The vanes can pivot on pins mounted in axial bores in a nozzle ring which defines one side of the passageway and is secured to the housing by dowels or bolts. The free ends of the vane pins are secured to respective vane arms which have outer ends which can rock in slots on the radially inner surface of a unison ring . The unison ring is mounted on rollers on dowels located in relation to the housing and the nozzle ring and can be turned around the nozzle ring by an external crank mechanism to pivot all the vanes together to vary the angle at which the exhaust gases are directed at the turbine rotor. The dowel and roller guides maintain the unison ring concentric with the nozzle ring which is itself concentrically located in relation to the housing.

Tonglint can design, process and produce nozzle rings per clients' drawings or samples.

For clients in need of nozzle rings, it is strongly recommended to provide us the model and assembly no. of products. If you have some special requirements for a certain model, please specify your requests and offer the technical parameters.
