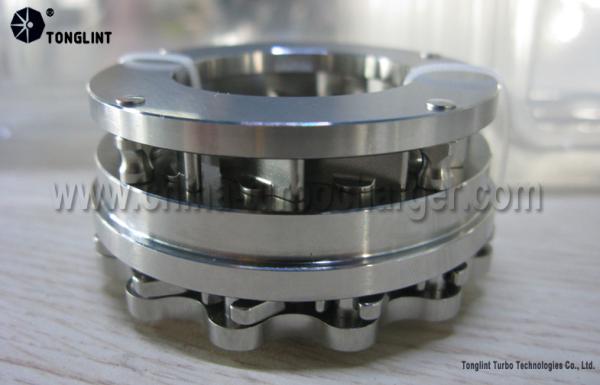

TD03L 49131-06003 Turbo Nozzle Ring for Opel Astra Corsa Meriva 1.7 CDTi
TD03L 49131-06003 Turbo Nozzle Ring for Opel Astra Corsa Meriva 1.7 CDTi
TD03L 49131-06003 Turbo Nozzle Ring for Opel Astra Corsa Meriva 1.7 CDTi
TD03L 49131-06003 Turbo Nozzle Ring for Opel Astra Corsa Meriva 1.7 CDTi
TD03L 49131-06003 Turbo Nozzle Ring for Opel Astra Corsa Meriva 1.7 CDTi
TD03L 49131-06003 Turbo Nozzle Ring for Opel Astra Corsa Meriva 1.7 CDTi
TD03L 49131-06003 Turbo Nozzle Ring for Opel Astra Corsa Meriva 1.7 CDTi
TD03L 49131-06003 Turbo Nozzle Ring for Opel Astra Corsa Meriva 1.7 CDTi
Specifications
Brand Name :
TONGLINT
Model Number :
TD03L 49131-06003
Certification :
TS16949
Place of Origin :
CHINA
MOQ :
20 sets
Price :
Negotiable
Payment Terms :
T/T, Western Union
Packaging Details :
Individual package / Neutral / Tonglint Brand
Commodity :
Nozzle Ring
Model :
TD03L
Tonglint No. :
TLNR1027
Fit for Turbo :
49131-06003 / 49131-06004 / 49131-06006 / 49131-06007 / 49131-06008
Application :
Opel Astra Corsa Meriva 1.7 CDTi
Material :
Steel
Sample :
Available
OE Service :
Available
Description

TD03L 49131-06003 Steel Turbo Nozzle Ring for Opel Astra Corsa Meriva 1.7 CDTi

Specifications:

Turbo Model

TD03L

Tonglint Number

TLNR1027

Fit for Turbo

 49131-06003 / 49131-06004 / 49131-06006 / 49131-06007 / 49131-06008

Application

Opel Astra Corsa Meriva 1.7 CDTi


Other Related TD Nozzle Rings:

Tonglint Code Print Code Model Fit for Turbo OEM No. Blade Qty
TLNR1027 TT36.1 TD03L 49131-06003 / 49131-06004 / 49131-06006 / 49131-06007 / 49131-06008 12
TLNR1028 TT53.2 TD04L 49377-00510 12
TLNR1029 V13 TF035HL 49135-02652 12
TLNR1030 TT47.8 TF035HL 49135-05880

12
TLNR1031 TT90.1 TD08 13
TLNR1032 TT47.9 TF035HL 49135-05670 / 49135-05671 / 49135-05640 / 49135-05660 12


Description:

A variable nozzle turbocharger has a ring of vanes mounted within the annular passageway through which exhaust gases flow from a volute to the turbine rotor. The vanes can pivot on pins mounted in axial bores in a nozzle ring which defines one side of the passageway and is secured to the housing by dowels or bolts. The free ends of the vane pins are secured to respective vane arms which have outer ends which can rock in slots on the radially inner surface of a unison ring . The unison ring is mounted on rollers on dowels located in relation to the housing and the nozzle ring and can be turned around the nozzle ring by an external crank mechanism to pivot all the vanes together to vary the angle at which the exhaust gases are directed at the turbine rotor. The dowel and roller guides maintain the unison ring concentric with the nozzle ring which is itself concentrically located in relation to the housing.

Tonglint can design, process and produce nozzle rings per clients' drawings or samples.

For clients in need of nozzle rings, it is strongly recommended to provide us the model and assembly no. of products. If you have some special requirements for a certain model, please specify your requests and offer the technical parameters.
