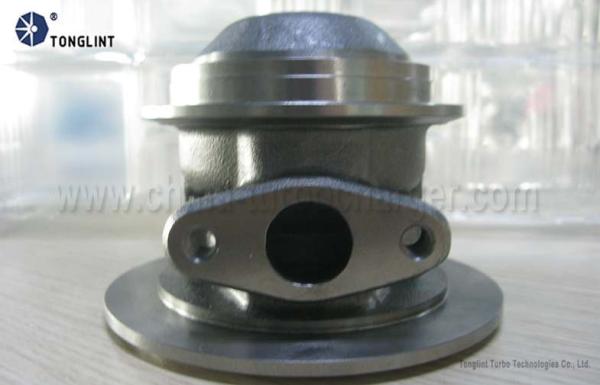

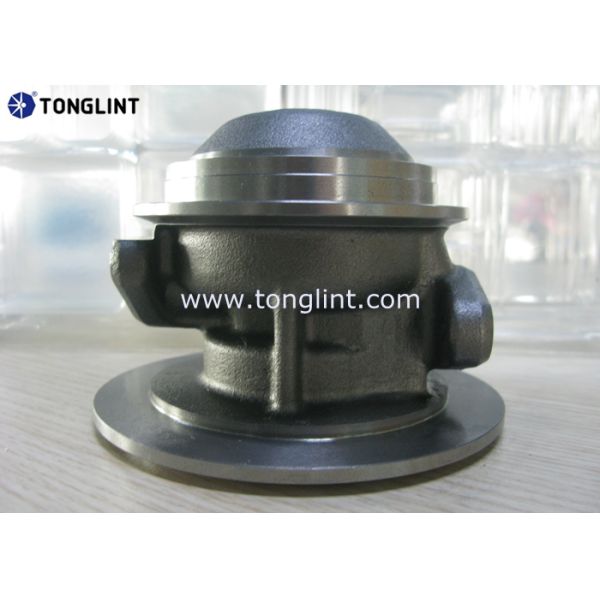

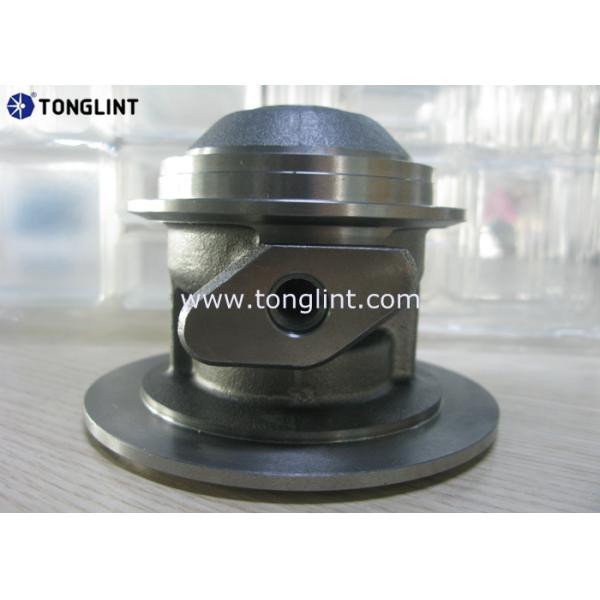

HX30W 3592317 3592318 Turbo Bearing Housing for Cummins 4BTAA Engine Parts
HX30W 3592317 3592318 Turbo Bearing Housing for Cummins 4BTAA Engine Parts
HX30W 3592317 3592318 Turbo Bearing Housing for Cummins 4BTAA Engine Parts
HX30W 3592317 3592318 Turbo Bearing Housing for Cummins 4BTAA Engine Parts
Specifications
Brand Name :
Tonglint
Model Number :
HX30W
Certification :
TS16949
Place of Origin :
China
MOQ :
20 pieces
Price :
Negotiable
Payment Terms :
T/T, Western Union, Paypal
Supply Ability :
10000 pieces / Month
Delivery Time :
3-30 days
Packaging Details :
Neutral Packing
Description
Product Name: Bearing Housing Model: HX30W
OE Part No.: N/A Fit For Turbo: 3592317 / 3598814 / 3592318
Turbo OEM: 4050221 Application: Cummins 4BTAA Engine
Material: HT250 OE Service: Yes

Genuine HX30W 3592317 3592318 Turbo Bearing Housing for Cummins 4BTAA Engine

Specifications:

Turbo Model

HX30W

OE Part No.

N/A

Fit for Turbo

3592317 / 3598814 / 3592318

Turbo OEM No.

 4050221

Application

Cummins 4BTAA Engine

Material

HT250

Cooling / Bearing Type

Oil

Description:

Bearing housing is the support body of rotor components in a turbocharger. It is connected to compressor housing and turbine housing to form the completed turbocharger. Apart from bearing the mechanical load of rotor components, it also endures the heat load from the turbine end.

Tonglint can design, process and produce bearing housings per clients' drawings or samples.

For clients in need of bearing housings, it is strongly recommended to provide us the model and assembly no. of products. If you have some special requirements for a certain model, please specify your requests and offer the technical parameters.

More Details

HX30W 3592317 3592318 Turbo Bearing Housing for Cummins 4BTAA Engine PartsHX30W 3592317 3592318 Turbo Bearing Housing for Cummins 4BTAA Engine Parts

Other Bearing Housings of H Series

Model Specification Tonglint No. Inlet Flange Hole Oil Inlet Outlet Flange Hole Water Inlet Water Outlet
H1C Universal TLBH20001 M8X1.25 2-M12X1.5 M8X1.25
Single Hole TLBH20002 2-M12X1.5 M8X1.25
TLBH20003 M8X1.25 Φ10.8 M8X1.25
HX30 TLBH20004 M8X1.25 Φ10.8 M8X1.25 Φ70.5
TLBH20005 2-M12X1.5 M8X1.25 Φ74.5

HX35

HX40

 Universal TLBH20006 M8X1.25 2-M12X1.5 M8X1.25 Φ84.5
Single Hole TLBH20007 2-M12X1.5 M8X1.25 Φ84.5
TLBH20008 M8X1.25 Φ10.8 M8X1.25

Φ84.5
TLBH20009 2-M12X1.5 M8X1.25 Φ79.5
TLBH20010 2-M12X1.5 M8X1.25 Φ87.5
TLBH20011
water-cooler TLBH20012 M8X1.25 2-M12X1.5 M8X1.25 Φ84.5
HX50 Universal TLBH20013 M8X1.25 M14X1.5 M8X1.25 Φ100.5
Single Hole TLBH20014 M14X1.5 M8X1.25 Φ100.5
TLBH20015 M8X1.25 Φ9.5 M8X1.25 Φ100.5
British System TLBH20016 9/16-18UNC M8X1.25 Φ100.5
TLBH20017 M8X1.25 Φ10.8 M8X1.25 Φ100.5

H2C

H2D

 H2C TLBH20018 M8X1.25 Φ9.5 M8X1.25 Φ87.5
H2D TLBH20019 M8X1.25 Φ9.5 M8X1.25 Φ95.5
H2E TLBH20020 M8X1.25 Φ9.5 M8X1.25 Φ100.5
HT3B Metric System TLBH20021 M14X1.5 M10X1.5 Φ100.8
British System TLBH20022 9/16-18UNF 3/8-16UNC Φ100.8
HX55 3535704 TLBH20023
HX40 water-cooler TLBH20024 M8X1.25 2-M12X1.5 M8X1.25 Φ87.5 M16X1.5
HT12 Nissan TLBH20025
