H40 Drone for Agricultural Spraying 40L Tank
H40 Drone for Agricultural Spraying 40L Tank
Specifications
Brand Name :
TONGLINT
Model Number :
H40
Place of Origin :
China
MOQ :
1 pc
Payment Terms :
T/T
Delivery Time :
30 days
Packaging Details :
Neutral Packing
Fuselage Weight :
44 KG
Fuselage Dimension :
2840*2680*890MM
Folding Dimension :
1290*760*890MM
Medicine Tank Capacity :
40L
Numbers of Nozzles :
6pcs (Automatic pressire relief)
Operating Flight Speed :
1-10m/s (Adjustable)
Spraying Width :
9m
Spraying Flow Rate :
1-8L/min (Adjustable)
Diamteter of Droplet :
120-200μm
Tank Capacity :
50L
Numbers of Discharge Port :
5pcs
Diameter of Seeding Particles :
0.1-10mm
Material Detection Method :
Weighing sensor
Seeding Mesons :
Powders, granules, bran like substances
Description

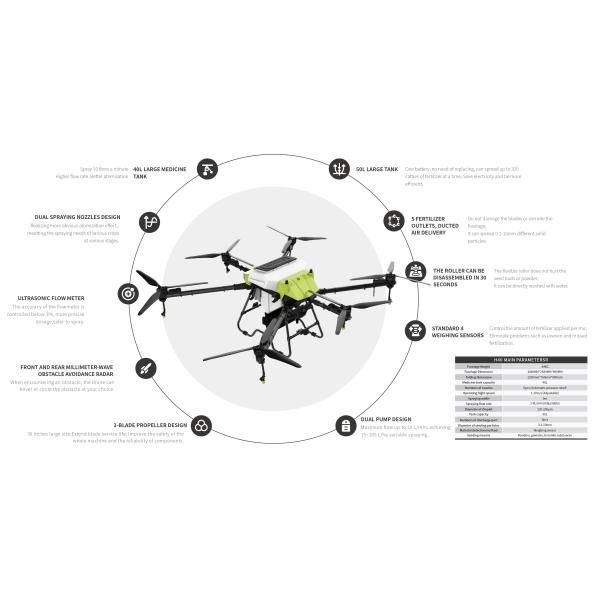

H40 Drone for Agricultural Spraying 40L Tank

40L LARGE MEDICINE TANK

  • Spray 10 liters a minute
  • High flow rate, better Atomization

50L LARGE TANK

  • One battery
  • No need of replacing
  • Spread up to 320 catties of fertilizer at a time
  • Save electricity and be more efficient

DUAL SPRAYING NOZZLES DESIGN

  • Realizing more obvious atomization effect
  • Meeting the spraying needs of various crops at various stages

ULTRASONIC FLOW METER

  • The accuracy of the flowmeter is controlled below 3%
  • More precise dosage, safer to spray

FRONT AND REAR MILLIMETER-WAVE OBSTACLE ACOIDANCE RADAR

  • When encountering an obstacle, the drone can hover or circle the obstacle at your choice

3-BLADE PROPELLER DESIGN

  • 36 inches large size
  • Extend blade service lifee
  • Improve the safety of the whole machine and the reliability of components

5 FERTILIZER OUTLETS & DUCTED AIR DELIVERY

  • Do not damage the blades or corrode the fuselage.
  • It can spread 0.1-10mm different solid particles.

THE ROLLER CAN BE DISASSEMBLED IN 30 SECONDS

  • The flexible roller does not hurt the seed buds or powder.
  • It can be directly washed with water.

STANDARD 4 WEIGHING SENSORS

  • Control the amount of fertilizer applied per mu.
  • Eliminate problems such as uneven and missed fertilization.

DUAL PUMP DESIGN

  • Maximum flow up to 10L/min.
  • Achieve 15-105 L/ha variable spraying.
