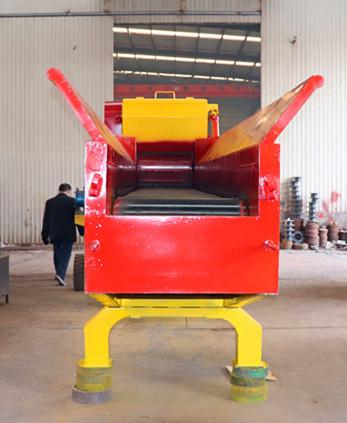

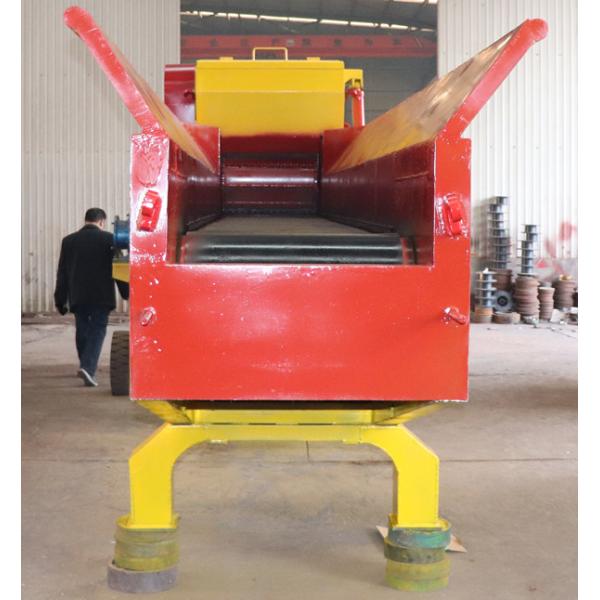

SH800-500 Wood pallets crusher machine,wood log crusher with oil pump motor
SH800-500 Wood pallets crusher machine,wood log crusher with oil pump motor
SH800-500 Wood pallets crusher machine,wood log crusher with oil pump motor
SH800-500 Wood pallets crusher machine,wood log crusher with oil pump motor
SH800-500 Wood pallets crusher machine,wood log crusher with oil pump motor
SH800-500 Wood pallets crusher machine,wood log crusher with oil pump motor
SH800-500 Wood pallets crusher machine,wood log crusher with oil pump motor
SH800-500 Wood pallets crusher machine,wood log crusher with oil pump motor
SH800-500 Wood pallets crusher machine,wood log crusher with oil pump motor
SH800-500 Wood pallets crusher machine,wood log crusher with oil pump motor
SH800-500 Wood pallets crusher machine,wood log crusher with oil pump motor
SH800-500 Wood pallets crusher machine,wood log crusher with oil pump motor
Specifications
Place of Origin :
shandong province, China
Brand Name :
SH
Certification :
ISO9001
Model Number :
SH1600-600, SH1400-600, SH1300-600, SH1300-800
MOQ :
1 SET
Price :
US $18,000-4,9000 / Sets
Packaging Details :
according to customer needs
Delivery Time :
within 20 days
Payment Terms :
T/T or L/C at sight, Western Union
Supply Ability :
300 sets/Year
Name :
Wood Chipper Crusher Machine
Condition :
new
Usage :
Crush logs, pallets all wooden products into chippers
After-sales service :
Video technical support, Online service, spare parts
Feeding inlet size :
800mm x 500mm
Feeding conveyor length :
5 meters
Discharging conveyor length :
10 meters
Main motor power :
110KW
Wood chipper size :
2cm to 4cm
Operation :
Automatic distant control
Description

SH800-500 Series Wood Crusher Machine is mainly used for building film faced plywood, wasted wood pallet, Tree bark, Slabs, off cuts, branches, straw and so on. It can work together with the baler breaker. This machine includes Host, chain plate, feeding & outlet conveyor system, intelligent electrical control. Chain Plate Feeding conveyor feeds raw materials more freely, no need changing the belt all the time. It is with reasonable structure, simple operation, high automatic level, and high safety coefficient and production capacity, less manpower, easy maintenance. It is the ideal equipment for biomass power generation enterprises.

Technical Parameter Of Host System Equipment

Model SH800-500 Electric Type
Feeding Inlet 800*500MM
Blade Roller Diameter 850MM
Blade Roller Speed 850RPM
Capacity 8-10T/Hour
YG8 Hammer Blade Quantity OR Blades 16 pcs hammers or 2sets blades
Max Processing Wood Diameter 300MM
Electric motor Power 110KW
Wood Chipper Size 20-40MM
Working Life Of THE Hammer Blades 4000T-6000T

Technical Parameter Of Feeding System

Model SH800-500
Slot Chain Plate Feeding Conveyor 1 Set
Feeding Motor Power 7.5KW+11KW
Chain Plate Width 800MM
Conveyor Length 5000MM
Feeding Speed 2-18M/Min
Chain Material 16Mn
Position Limited Wheel 5
Gear Box Hard Teeth Faces

Technical Parameter Of Discharging System

Model SH800-500
Outlet Conveyor Belt 1Set
First Outlet Motor 4KW With Gear Box
Second Outlet Motor 5.5KW With Gear Box
Conveyor Material 14-16# Channel/ Square Tube
Conveyor Length*Width 10m*1m
Conveyor Material Nylon 4 Layer
Outlet Height 3800-4500MM

Intelligent Electronic Control System

Model SH800-500
Large Control Cabinet Ground
Host Start Model Soft Start
Feeding Speed Control Model Variable Frequency
Electrical Control Control Cabinet + Remote Control

High Efficiency Hydraulic System

Model SH800-500
Control Model Solenoid Valve
Hydraulic Oil Pump 3KW
Hydraulic Oil Tank 120L
