Forestry equipment horizontal wood portable band saw Hydraulic sawmill
Forestry equipment horizontal wood portable band saw Hydraulic sawmill
Forestry equipment horizontal wood portable band saw Hydraulic sawmill
Forestry equipment horizontal wood portable band saw Hydraulic sawmill
Forestry equipment horizontal wood portable band saw Hydraulic sawmill
Forestry equipment horizontal wood portable band saw Hydraulic sawmill
Forestry equipment horizontal wood portable band saw Hydraulic sawmill
Forestry equipment horizontal wood portable band saw Hydraulic sawmill
Forestry equipment horizontal wood portable band saw Hydraulic sawmill
Forestry equipment horizontal wood portable band saw Hydraulic sawmill
Forestry equipment horizontal wood portable band saw Hydraulic sawmill
Forestry equipment horizontal wood portable band saw Hydraulic sawmill
Specifications
Place of Origin :
Shandong Province, China
Brand Name :
SH
Certification :
ISO9001
Model Number :
MJH1000D, MJH1300P, SW1000P
MOQ :
1 SET
Price :
USD16,000-25,900/SET
Packaging Details :
container loading
Delivery Time :
within 20 days
Payment Terms :
T/T or L/C at sight, Western Union
Supply Ability :
1500sets/year
Name :
Hydraulic Band saw for cutting wood wood saw machine
Type :
Band Saw
Max. sawing log diameter :
1000mm
Max. sawing log length :
4500mm or extend sawmill track
Warranty :
12 month
Engine :
35HP petrol engine
Saw wheel diameter :
700mm
Feeding :
Inverter
Saw Blade width :
50 to 80mm
Hydraulic Chain Rotation :
Yes
Description

Hydraulic Horizontal Band Sawmill (Petrol/Diesel Engine type )
1.The sawmill is with hydraulic log loading arm.
2. The sawmill is with hydraulic rotation clamping .
3. The sawmill is with hydraulic wood clamp.
4. The sawmill is with mobile wheel for mobile usage .

Specifications:

ModelMJH1000DMJH1300P
Max Sawing Wood Diameter1000mm1300mm
Saw Wheel Diameter700mm700mm
Max Sawing Wood Thickness300mm300mm
Standard Sawing Wood Length4000mm4000mm
Motor Power22HP Diesel 2-Cylinder35HP Petrol 2-Cylinder
Saw Blade Width27mm-75mm27mm-75mm
Saw head up/downHydraulicHydraulic
Machine Length5800mm5800mm
Weight2500kg2500kg
Standard Configuration
Forestry equipment horizontal wood portable band saw Hydraulic sawmill

Hydraulic Log Loading
Arm *1

Forestry equipment horizontal wood portable band saw Hydraulic sawmill

Hydraulic Clamp *1
Secure and stabilize the log

Forestry equipment horizontal wood portable band saw Hydraulic sawmill

Hydraulic Wood Clamp*4
Secure and stabilize the log

Forestry equipment horizontal wood portable band saw Hydraulic sawmill

Hydraulic vertical side supports *4
Secure and stabilize the log

Forestry equipment horizontal wood portable band saw Hydraulic sawmill

Mobile Wheels,
8 Adjustable Up/down legs

Forestry equipment horizontal wood portable band saw Hydraulic sawmillBoard automatic return hook
Optional parts:
Forestry equipment horizontal wood portable band saw Hydraulic sawmill

Touch Screen Accuset Setworks
Automatically moves head for each cut and head walking speed is Frequency variable

Forestry equipment horizontal wood portable band saw Hydraulic sawmill

Hydraulic bi-directional Chain log turner*2
For max. log control

Hydraulic wood adjuster x1Forestry equipment horizontal wood portable band saw Hydraulic sawmillExtend The Rail Length






























Hydraulic Horizontal Band Sawmill

型 号ModelSW1000P
锯割木材直径Max Sawing Wood Diameter1000mm
锯轮直径Saw Wheel Diameter700mm
最大锯割木材厚度Max Sawing Wood Thickness350mm
锯割木材长度(标准)Standard Sawing Wood Length4500mm
功率Engine Power35HP petrol engine or 22HP diesel engine
锯头(升/降)Up/DownElectrial
行走方式(前进/倒退)Forward/BackwardInverter
锯条宽度范围Saw Blade width50-80mm
1,木材上料装置Hydraulic Log Loading Arms1
2,液压翻转夹紧顶装置Hydraulic Rotation Clamping2
3,10个支架腿+轮胎4个10pcs legs + tryes 4pcs1
4,设定锯割尺寸Sawn sizes setting touching screen +PLC
5,液压链式翻滚装置Hydraulic Chain Rotation2
6,液压档木立桩Hydraulic lot stop pole4
机床长度Machine Length5800mm
重量Weight2800kg

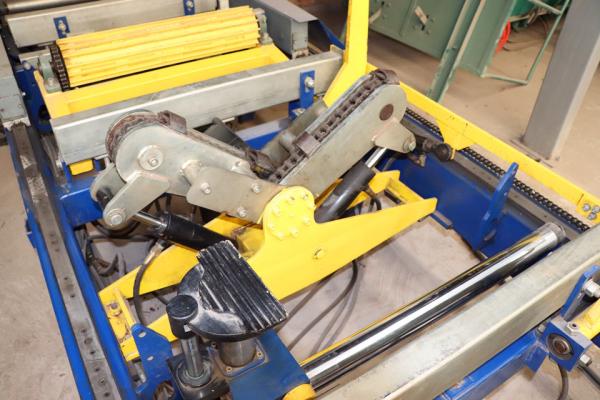

Hydraulic Chain Rotation
Forestry equipment horizontal wood portable band saw Hydraulic sawmill
Hydraulic Rotation Clamping
Forestry equipment horizontal wood portable band saw Hydraulic sawmill
