1500mm Large Sawmill Hydraulic Bandsaw Machine Horizontal Wood Band Saw Mill
1500mm Large Sawmill Hydraulic Bandsaw Machine Horizontal Wood Band Saw Mill
1500mm Large Sawmill Hydraulic Bandsaw Machine Horizontal Wood Band Saw Mill
1500mm Large Sawmill Hydraulic Bandsaw Machine Horizontal Wood Band Saw Mill
1500mm Large Sawmill Hydraulic Bandsaw Machine Horizontal Wood Band Saw Mill
1500mm Large Sawmill Hydraulic Bandsaw Machine Horizontal Wood Band Saw Mill
1500mm Large Sawmill Hydraulic Bandsaw Machine Horizontal Wood Band Saw Mill
1500mm Large Sawmill Hydraulic Bandsaw Machine Horizontal Wood Band Saw Mill
1500mm Large Sawmill Hydraulic Bandsaw Machine Horizontal Wood Band Saw Mill
1500mm Large Sawmill Hydraulic Bandsaw Machine Horizontal Wood Band Saw Mill
1500mm Large Sawmill Hydraulic Bandsaw Machine Horizontal Wood Band Saw Mill
1500mm Large Sawmill Hydraulic Bandsaw Machine Horizontal Wood Band Saw Mill
Specifications
Place of Origin :
Shandong Province, China
Brand Name :
SH
Certification :
ISO9001
Model Number :
MJH1200E,MJH1500E
MOQ :
1 SET
Price :
US $41,000 - 51,000 / Set
Packaging Details :
container loading
Delivery Time :
within 15 days
Payment Terms :
T/T or L/C at sight, Western Union
Supply Ability :
500sets/year
Name :
Heavy duty hydraulic automatic band sawmill
Max. sawing log diameter :
1500mm
Max. sawing log length :
4500mm or extend sawmill track
Saw wheel diameter :
1070mm
Band saw blade width :
125mm, 150mm
Saw head up/down :
Electric 2.2kw
Band saw blade tension :
Electric
Operation :
Touching screen auto setworks
Main motor power :
37kw, 45kw
Cutting speed :
10-15meters/minute
Description

Heavy Duty Hydraulic Horizontal Band Sawing Machine For Large Wood

Heavy Duty Hydraulic Automatic Wood Cutting Horizontal Band Sawmill

Combined with Hydraulic automation technology, the heavy duty hydraulic horizontal band sawmill realizes all digital intelligent control . Chinese and English operating systems, automatic rotation, sawing and cutting of large diameter wood, simple operation of equipment, precise cutting thickness, improves wood usage rate .

Key features:

  • Fast return speed & servo controlled blade positioning,
  • Fast automatic control preventing operator delays,
  • High speed hydraulic log manoeuvring functions,
  • Precision made machine with top quality components.

Technical Data:

Model
MJH1200E
MJH1500E
Max Sawing Wood Diameter
1200mm
1500mm
Saw Wheel Diameter
1000mm
1070mm
Max Sawing Wood Thickness
400mm
400mm
Standard Sawing Wood Length
4500mm
4500mm
Electric Motor Power
37kw
45kw
Up/Down Electric Motor
2.2kw
2.2kw
Forward/Backward Electric Motor
3kw
3kw
Band Saw Blade Width
125-150mm
125-150mm
Band Saw Blade Tension
Electric
Machine Length
7000mm
7000mm
Weight
7000kg
8500kg

1500mm Large Sawmill Hydraulic Bandsaw Machine Horizontal Wood Band Saw Mill

1500mm Large Sawmill Hydraulic Bandsaw Machine Horizontal Wood Band Saw Mill1500mm Large Sawmill Hydraulic Bandsaw Machine Horizontal Wood Band Saw Mill

1500mm Large Sawmill Hydraulic Bandsaw Machine Horizontal Wood Band Saw Mill

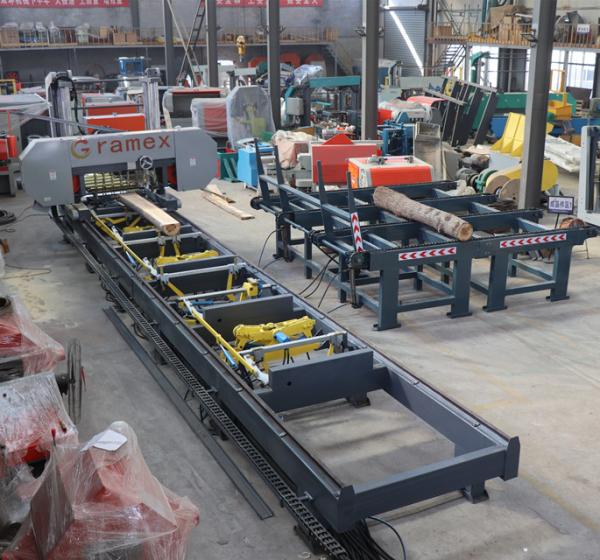

Hydraulic Large Sawmill Automatic Production Line - we design it as customer needs

1500mm Large Sawmill Hydraulic Bandsaw Machine Horizontal Wood Band Saw Mill

Optional - Log Loading Rack

1500mm Large Sawmill Hydraulic Bandsaw Machine Horizontal Wood Band Saw Mill

Optional - Board Roller Conveyor

1500mm Large Sawmill Hydraulic Bandsaw Machine Horizontal Wood Band Saw Mill
