450mm Multi Rip Saw Machine Round Hardwood Logs Gang Rip Saw
450mm Multi Rip Saw Machine Round Hardwood Logs Gang Rip Saw
450mm Multi Rip Saw Machine Round Hardwood Logs Gang Rip Saw
450mm Multi Rip Saw Machine Round Hardwood Logs Gang Rip Saw
450mm Multi Rip Saw Machine Round Hardwood Logs Gang Rip Saw
450mm Multi Rip Saw Machine Round Hardwood Logs Gang Rip Saw
450mm Multi Rip Saw Machine Round Hardwood Logs Gang Rip Saw
450mm Multi Rip Saw Machine Round Hardwood Logs Gang Rip Saw
450mm Multi Rip Saw Machine Round Hardwood Logs Gang Rip Saw
450mm Multi Rip Saw Machine Round Hardwood Logs Gang Rip Saw
450mm Multi Rip Saw Machine Round Hardwood Logs Gang Rip Saw
450mm Multi Rip Saw Machine Round Hardwood Logs Gang Rip Saw
Specifications
Place of Origin :
Shandong Province, China
Brand Name :
SH
Certification :
ISO9001
Model Number :
SHYM200,SHYM300, SHYM350,SHYM400, SHYM450
MOQ :
1 SET
Price :
USD3,000-USD1,5000/set
Packaging Details :
iron frame export pallet
Delivery Time :
within 15 days
Payment Terms :
T/T or L/C at sight, Western Union
Supply Ability :
1000sets/year
Name :
Round log Multi Rip Saw
Type :
Circular Saw
Application :
Sawing round logs into planks or cants
Voltage :
380V,3phase,50HZ or as cusmer needs
Power :
22-55kw x 2sets
Max. sawing log diameter :
450mm
Blade diameter :
600mm
Blade cooling type :
axis center water spraying
Feeding :
Frequency auto feeding
Shaft diameter :
8cm
Packing size :
3500 x 1600 x 1600mm
Warranty :
1 Year
Description

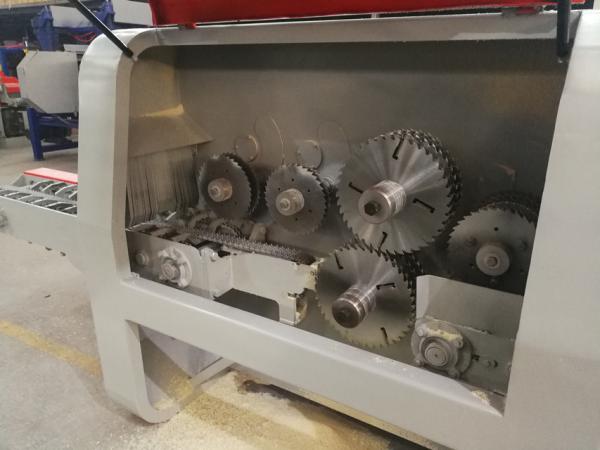

Multi Rip Saw, Log gang rip saw, hardwood logs cutting rip saw machines

Multi blades Ripsaw for Round Log Cutting

1.Cut logs into planks at several pieces per time.

2.With log centering feeding conveyor

3.Automatic controlling

4. Max. sawing log diameter reaches 500mm(20inches)

Specifications:

Model
SHYM150
SHYM200
SHYM240
SHYM260
SHYM285
SHYM330
Sawing Log Diameter
20-150mm
60-200mm
80-240mm
100-260mm
130-285mm
150-330mm
MinSawing Log Length
600mm
600mm
600mm
600mm
600mm
600mm
Main Motor power
18.5KW*2
22KW*2
30KW*2
30/37KW
30/37KW
37KW*2
Spindle Diameter
50mm
50mm
60mm
60mm
60mm
70mm
Saw Blade Diameter
255mm
305mm
355mm
380mm
405mm
450mm
Weight
1570KG
1720KG
2200KG
2300KG
2350KG
2550KG
Model
SHYM340
SHYM360
SHYM400
SHYM430
SHYM480
Sawing Log Diameter
150-340mm
170-360mm
180-400mm
200-430mm
250-480mm
Min Sawing Log Length
600mm
600mm
600mm
600mm
600mm
Main Motor power
45KW/55KW
55KW*2
55KW*2
55KW*2
55KW*2
Spindle Diameter
80mm
80mm
80mm
100mm
100mm
Saw Blade Diameter
480mm
500mm
550mm
600mm
650mm
Weight
2650KG
2680KG
3500KG
3880KG
4100KG

450mm Multi Rip Saw Machine Round Hardwood Logs Gang Rip Saw

450mm Multi Rip Saw Machine Round Hardwood Logs Gang Rip Saw

450mm Multi Rip Saw Machine Round Hardwood Logs Gang Rip Saw

450mm Multi Rip Saw Machine Round Hardwood Logs Gang Rip Saw450mm Multi Rip Saw Machine Round Hardwood Logs Gang Rip Saw

Multi Ripsaw for planks cutting

450mm Multi Rip Saw Machine Round Hardwood Logs Gang Rip Saw450mm Multi Rip Saw Machine Round Hardwood Logs Gang Rip Saw

Automatic Multi Rip Saw Log Production Line

  • The production line will increase wood processing speed and only need 3-5 workers for more economic profit.
  • The max sawing log diameter is 350-450mm.
  • We can design the production line according to the diameter of your logs.

450mm Multi Rip Saw Machine Round Hardwood Logs Gang Rip Saw

450mm Multi Rip Saw Machine Round Hardwood Logs Gang Rip Saw
