Twin Vertical Bandsaw Wood Cutting Saws Band Sawmill/ Log twin bandsaw
Twin Vertical Bandsaw Wood Cutting Saws Band Sawmill/ Log twin bandsaw
Twin Vertical Bandsaw Wood Cutting Saws Band Sawmill/ Log twin bandsaw
Twin Vertical Bandsaw Wood Cutting Saws Band Sawmill/ Log twin bandsaw
Twin Vertical Bandsaw Wood Cutting Saws Band Sawmill/ Log twin bandsaw
Twin Vertical Bandsaw Wood Cutting Saws Band Sawmill/ Log twin bandsaw
Twin Vertical Bandsaw Wood Cutting Saws Band Sawmill/ Log twin bandsaw
Twin Vertical Bandsaw Wood Cutting Saws Band Sawmill/ Log twin bandsaw
Twin Vertical Bandsaw Wood Cutting Saws Band Sawmill/ Log twin bandsaw
Twin Vertical Bandsaw Wood Cutting Saws Band Sawmill/ Log twin bandsaw
Twin Vertical Bandsaw Wood Cutting Saws Band Sawmill/ Log twin bandsaw
Twin Vertical Bandsaw Wood Cutting Saws Band Sawmill/ Log twin bandsaw
Specifications
Place of Origin :
Shandong Province, China
Brand Name :
SH
Certification :
ISO9001
Model Number :
SLSP400, SLS350, SLS500
MOQ :
1 SET
Price :
US $12,000 - 50,000 / Set
Packaging Details :
container loading
Delivery Time :
within 20 days
Payment Terms :
T/T or L/C at sight
Supply Ability :
500sets/year
Name :
Twin Vertical Saw
Condition :
New
Type :
Band Saw
Voltage :
380V, 50HZ, 3PH or as customer needs
Application :
Cut four side of log,produce square timber
Power(W) :
2*18.5KW or 2*22KW
Saw wheel diameter :
700MM, 760mm
Max. Sawing Wood Diameter :
500MM
Operation :
CNC automatic
Feeding Speed :
Variable Frequency Speed Adjustable
Warranty :
12 months
After-sales service :
Video technical support, working test before delivery
Description

Block Bandsaw/ Twin Vertical Band Saw (Flat bottom)
Designed to receive logs with at least one straight bottom, making two vertical cuts, removing a slab from each side of the log.

· Ideal to cut pine, eucalyptus, and teak.

· Block 100% Square

· High-production continuous feed system.

· Production up to 4,000 m³ per month.

· Highly efficient use of wood, with the thinnest kerf on the market.

· Motorization and automatic electric panel included.

· Automatic feeding, inverter speed adjustable .

Technical data :

ModelSLSP400
Maximum log diameter400mm
Minimum log diameter100mm
Wood length1000~3000mm
Feed speed9~25m/min
Conveyor length7000mm
Bandwheel diameter700mm
Blade width50~80mm
Saw motor18.5KW X 2
Feed motor5.5kw
Weight2500kg

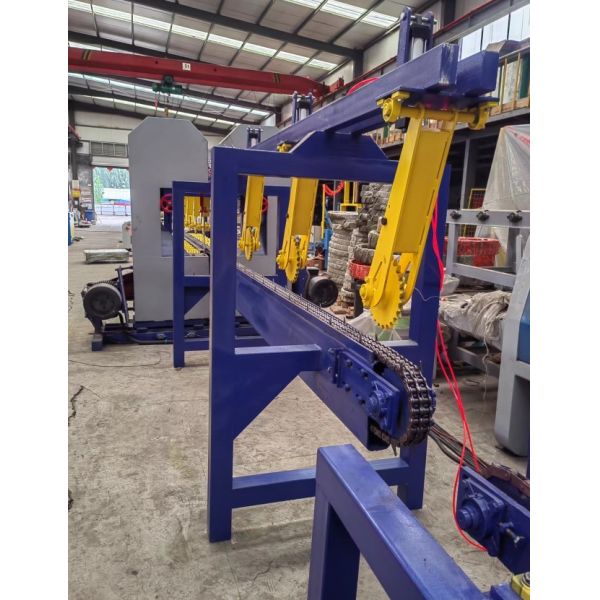

Deatiled Image

Twin Vertical Bandsaw Wood Cutting Saws Band Sawmill/ Log twin bandsawTwin Vertical Bandsaw Wood Cutting Saws Band Sawmill/ Log twin bandsaw
TWIN BANDSAW FOR LOG EDGES CUTTING

Designed to receive logs and make two vertical cuts removing a slab from either side of the log.

· Ideal to cut pine, eucalyptus, and teak.

· High-precision cutting.

· Laterally-supported chain.

· High-production continuous feed system.

· Produces up to 4,000 m³ per month.

· Highly efficient use of wood, with the finest cut on the market.

· Motorization and control panel included.

· Automatic feed

Technical Specifications:

Technical dataSLS350SLS500
Maximum log diameter350mm500mm
Minimum log diameter100mm100mm
Wood length1000 to 3000mm1000 to 3000mm
Feed speed9-25m/min (inverter)9-25m/min (inverter)
Conveyor length7000mm3500mm x 2
Band wheel diameter700mm760mm
Width of saw blade50-80mm50-100mm
Length of saw blade48505200mm
Thickness of saw blade0.9mm0.9mm
Saw motor2x18.5kw2x22kw
Feed motor5.5kw4kw x 2
Sawn sizing controlTouching screen auto setworksTouching screen auto setworks

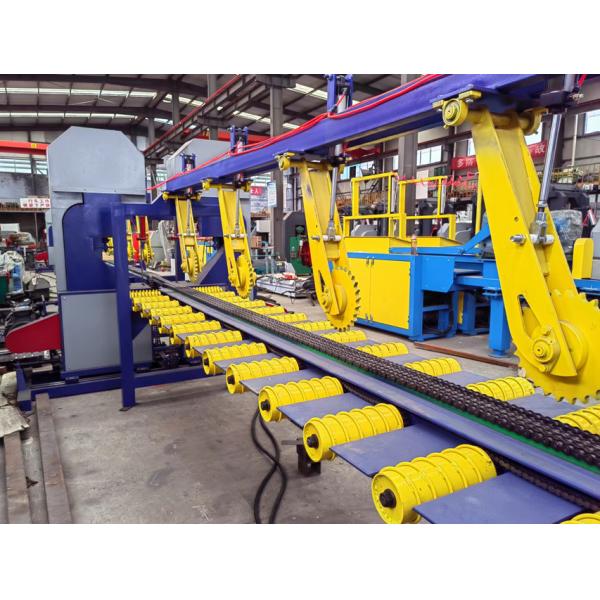

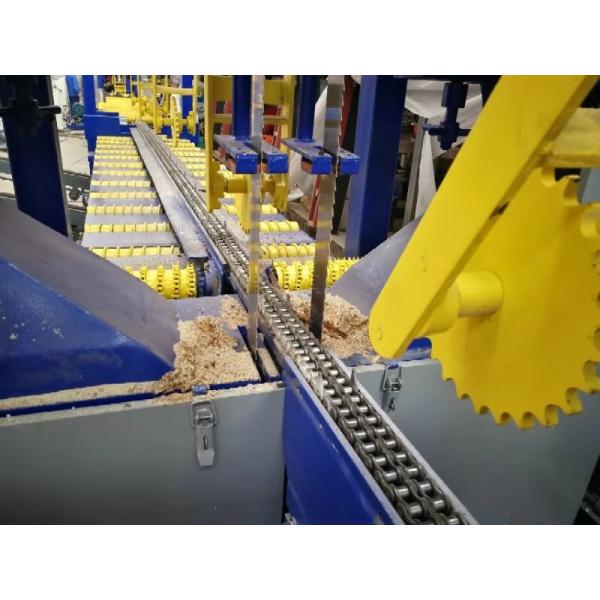

Photos

Twin Vertical Bandsaw Wood Cutting Saws Band Sawmill/ Log twin bandsaw

Twin Vertical Bandsaw Wood Cutting Saws Band Sawmill/ Log twin bandsawTwin Vertical Bandsaw Wood Cutting Saws Band Sawmill/ Log twin bandsaw
Optional - slabs slope conveyor
Twin Vertical Bandsaw Wood Cutting Saws Band Sawmill/ Log twin bandsaw
Optional - log loading deck
Twin Vertical Bandsaw Wood Cutting Saws Band Sawmill/ Log twin bandsaw
Optional -Roller conveyor
Twin Vertical Bandsaw Wood Cutting Saws Band Sawmill/ Log twin bandsaw
