Wood log Cutting Sawmill Portable lumber bandsaw mill with hydraulic log loading arm
Wood log Cutting Sawmill Portable lumber bandsaw mill with hydraulic log loading arm
Wood log Cutting Sawmill Portable lumber bandsaw mill with hydraulic log loading arm
Wood log Cutting Sawmill Portable lumber bandsaw mill with hydraulic log loading arm
Wood log Cutting Sawmill Portable lumber bandsaw mill with hydraulic log loading arm
Wood log Cutting Sawmill Portable lumber bandsaw mill with hydraulic log loading arm
Wood log Cutting Sawmill Portable lumber bandsaw mill with hydraulic log loading arm
Wood log Cutting Sawmill Portable lumber bandsaw mill with hydraulic log loading arm
Wood log Cutting Sawmill Portable lumber bandsaw mill with hydraulic log loading arm
Wood log Cutting Sawmill Portable lumber bandsaw mill with hydraulic log loading arm
Specifications
Place of Origin :
shandong province
Brand Name :
SH
Model Number :
SH24, MJ700, MJ1000, MJ1300, MJ1600
MOQ :
1 SET
Price :
US $2,200 - 12,200 / Set
Packaging Details :
wooden crates or iron frame packing
Delivery Time :
within 20 days
Payment Terms :
T/T or L/C at sight, Western Union
Supply Ability :
1500sets/year
Certification :
ISO
Condition :
New
Type :
Band Saw
Use :
Woodworking
Style :
Horizontal
Voltage :
380V,3 Phase, 50HZ or as customer meeds
Power(W) :
7.5KW -22kw
Warranty :
1 Year
Weight :
600-1500KG
Application :
Cutting soft/hard Log
Engine :
Electric / Diesel / Petrol Engine
Control :
Manual / Computer Control
Other :
We can customize machine according to customer needs
Description

The portable horizontal band sawmill is designed to meet the requirements of customers in Africa ,South America and eastern europe.

It is simple installation,easy operation,labor saving,and high productivity.

This machine can be drived by either electric motor or diesel engine.

It is widely used by the timber processing enterprises in the virgin forests areas.

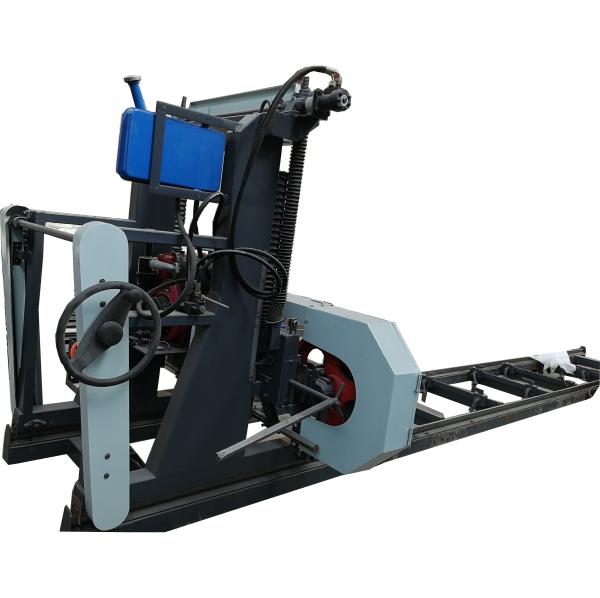

Diesel Engine Powered Horizontal Portable Band Sawmill

Technical Parameter

 MJ700D MJ1000D MJ1300D MJ1600D

Sawing Wood Diameter

 700MM 1000 1300 1600

Saw Wheel Diameter(MM)

 600 700 700 700

Sawing Wood Thicknes

 10-200 10-300 10-300 10-300

Sawing Wood Length (MM)

 1300-4500 1300-4500 1300-4500 1300-4500

Engine

 14HP Diesel 22HP Diesel 25HP Diesel 27HP Diesel

Band Saw Blade Length

 5500 6100 6600 7100

Machine Length(MM)

 5800 5800 5800 5800

Total Weight (KG)

 800 1100 1300 1500

Wood log Cutting Sawmill Portable lumber bandsaw mill with hydraulic log loading arm

Wood log Cutting Sawmill Portable lumber bandsaw mill with hydraulic log loading arm

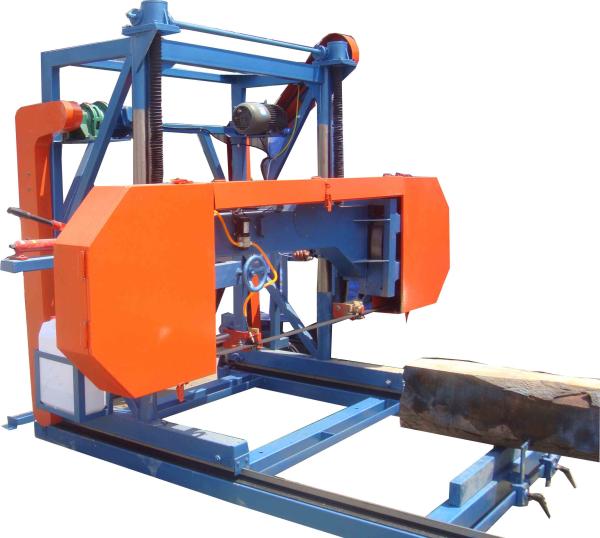

Electric Powered Portable Horizontal Band Sawmill ​

Technical Parameter

 MJ700E MJ1000E MJ1300E MJ1600E

Max. Sawing Wood Diameter

 700MM 1000MM 1300MM 1600MM

Saw Wheel Diameter

 600MM 700MM 700MM 700MM

Sawing Wood Thickness

 10-200MM 10-300MM 10-300MM 10-300MM

Sawing Wood Length MM

 1300-4500 1300-4500 1300-4500 1300-4500

Main Motor Power

 7.5KW 11KW 15KW 18.5KW

Lifting Motor Power

 1.1KW 1.1KW 1.1KW 1.1KW

Total Weight (KG)

 600 1100 1300 1500

Wood log Cutting Sawmill Portable lumber bandsaw mill with hydraulic log loading armWood log Cutting Sawmill Portable lumber bandsaw mill with hydraulic log loading arm

Item Auxiliary Equipment
1 MR1111 Automatic Band Saw Blade Sharpener
2 Sand Wheel For MR1111
3 UN65 Flash Seal Welding Machine
4 MR417 Roll Machine
5 Dual Tooth Setter
6 USA Lenox Bi-Metal Blade For MJ700 5500*54*1.07mm
USA Lenox Bi-Metal Blade For MJ1000 6100*54*1.07mm
USA Lenox Bi-Metal Blade For MJ1300 6600*54*1.07mm
USA Lenox Bi-Metal Blade For MJ1600 7100*54*1.07mm
7 Wood Cant Hook 48” Handle
