High-Production Bottom Slab Cutting Saw Mill with Industrial Sawmill Equipment
High-Production Bottom Slab Cutting Saw Mill with Industrial Sawmill Equipment
High-Production Bottom Slab Cutting Saw Mill with Industrial Sawmill Equipment
High-Production Bottom Slab Cutting Saw Mill with Industrial Sawmill Equipment
High-Production Bottom Slab Cutting Saw Mill with Industrial Sawmill Equipment
High-Production Bottom Slab Cutting Saw Mill with Industrial Sawmill Equipment
High-Production Bottom Slab Cutting Saw Mill with Industrial Sawmill Equipment
High-Production Bottom Slab Cutting Saw Mill with Industrial Sawmill Equipment
High-Production Bottom Slab Cutting Saw Mill with Industrial Sawmill Equipment
High-Production Bottom Slab Cutting Saw Mill with Industrial Sawmill Equipment
High-Production Bottom Slab Cutting Saw Mill with Industrial Sawmill Equipment
High-Production Bottom Slab Cutting Saw Mill with Industrial Sawmill Equipment
Specifications
Place of Origin :
Shandong Province, China
Brand Name :
SH
Model Number :
DP500
MOQ :
1 SET
Price :
US $14,600-18,000 / Set
Packaging Details :
container loading
Delivery Time :
within 15 days
Payment Terms :
T/T or L/C at sight, Western Union
Supply Ability :
500 sets/year
Certification :
ISO9001
Name :
Bottom slab horizontal band saw
Type :
Band Saw
Use :
Woodworking
Power(W) :
22kw, 380v/30h/50HZ
Feeding motor :
5.5KW
Sawing log diameter :
100mm to 500mm
Sawing wood length :
1000mm to 3000mm
Saw blade width :
50mm to 80mm
Operation :
CNC digital
Warranty :
1 year
Description

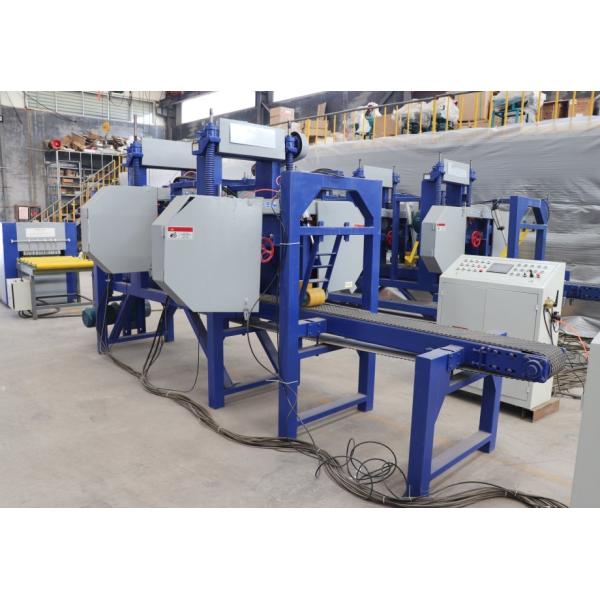

Woodworking Slabs Cutting Saw Mill, Horizontal band saw, single head resaws
Bottom Slab Cutting Horizontal Band Saw

Designed to make the first cut at the bottom of the log, providing a flat surface for further processing.
• Ideal to cut pine.
• Base blocks 100% square.
• High production, continuous feed system.
• Produces up to 4,000 m3 per month.
• Efficient wood utilization with the thinnest cut on the market.
• Motorization and automatic electrical panel included.
• Automatic in-feed
Technical Data:
Technical specificationsDP500
Maximum log diameter500mm
Minimum log diameter100mm
Wood length1000-3000mm
Feed speed9-25m/min
Conveyor length7000mm
Band wheel diameter700mm
Saw blade width50mm-80mms
Saw motor22kw
Feed motor5.5kw
Weight2500kgs
High-Production Bottom Slab Cutting Saw Mill with Industrial Sawmill Equipment
High-Production Bottom Slab Cutting Saw Mill with Industrial Sawmill Equipment

Related Saw Machine

Block Bandsaw/ Twin Vertical Band Saw (Flat bottom)
Designed to receive logs with at least one straight bottom, making two vertical cuts, removing a slab from each side of the log.

· Ideal to cut pine, eucalyptus, and teak.

· Block 100% Square

· High-production continuous feed system.

· Production up to 4,000 m³ per month.

· Highly efficient use of wood, with the thinnest kerf on the market.

· Motorization and automatic electric panel included.

· Automatic feeding, inverter speed adjustable .

Technical data :

ModelSLSP400
Maximum log diameter400mm
Minimum log diameter100mm
Wood length1000~3000mm
Feed speed9~25m/min
Conveyor length7000mm
Bandwheel diameter700mm
Blade width50~80mm
Saw motor18.5KW X 2
Feed motor5.5kw
Weight2500kg

Deatiled Image

High-Production Bottom Slab Cutting Saw Mill with Industrial Sawmill Equipment

High-Production Bottom Slab Cutting Saw Mill with Industrial Sawmill Equipment

Multiple Heads Horizontal Resaw Band Saws

This machine is invented by our company.It is easy-operated,high efficiency and easy-installed.
The head quantity is given option from one to six .The user will get multi board at one time to improve the efficiency.
Main Features:
1.The head quantity from one to six is available.
2.Touch screen setting sawing thickness.
3.Variable Frequency Speed Adjustable Feeding Speed.

Technical specificationsDT300-1DT300-2DT300-3DT300-5DT300-6
Sawing width300mm300mm300mm300mm300mm
Minimum wood thickness2mm2mm2mm2mm2mm
Maximum wood height260mm260mm260mm260mm260mm
Band wheel diameter700mm700mm700mm700mm700mm
Saw motor15kw15kw x 215kw x 315kw x 515kw x 6
Saw machine length3500mm4500mm5800mm8500mm11000
Weight900kg1500kg2200kg3500kg5000kg
FeedingVariable frequency speed adjustable conveyor
OperationTouching screen auto setworks for sawn thickness
High-Production Bottom Slab Cutting Saw Mill with Industrial Sawmill Equipment

High-Production Bottom Slab Cutting Saw Mill with Industrial Sawmill Equipment
