Specifications
Place of Origin :
Shandong Province, China
Brand Name :
SH
Certification :
ISO9001
Model Number :
DT300-1,DT300-2,DT300-3,DT300-5,DT300-6
MOQ :
1 SET
Price :
US $14,200-37,700 / Set
Packaging Details :
container loading
Delivery Time :
within 20days
Payment Terms :
T/T or L/C at sight, Western Union
Supply Ability :
1000sets/year
Name :
Resaw machine
Condition :
New
Style :
Horizontal
Sawing wood max. width :
300mm
Sawing wood thickness :
260mm
Saw wheel diameter :
700MM
Motor power :
15kw x 2set, 3sets, 5sets...
Weight :
900kg-4000kgs
Voltage :
380V/50HZ/3PH or as customer needs
Applicable industries :
Manufacturing Plant,woodworking
After-sales service provided :
Online support,Video technical support,commissioning and training
Warranty :
12 Months
Description

Multiple Heads Band Saw Resaw Wood Cutting Machine, Wood Resaw equipment

Multiple Heads Horizontal Resaw Band Saws

  • This machine is easy-operated,high efficiency and easy-installed.
  • The head quantity is given option from one to six .The user will get multi board at one time to improve the efficiency.
  • Main Features:

1.The head quantity from one to six is available.
2.Touch screen setting sawing thickness.
3.Variable Frequency Speed Adjustable Feeding Speed.

Technical data

Technical specificationsDT300-1DT300-2DT300-3DT300-5DT300-6
Sawing width300mm300mm300mm300mm300mm
Minimum wood thickness2mm2mm2mm2mm2mm
Maximum wood height260mm260mm260mm260mm260mm
Band wheel diameter700mm700mm700mm700mm700mm
Saw motor15kw15kw x 215kw x 315kw x 515kw x 6
Saw machine length3500mm4500mm5800mm8500mm11000
Weight900kg1500kg2200kg3500kg5000kg
FeedingVariable frequency speed adjustable conveyor
OperationTouching screen auto setworks for sawn thickness

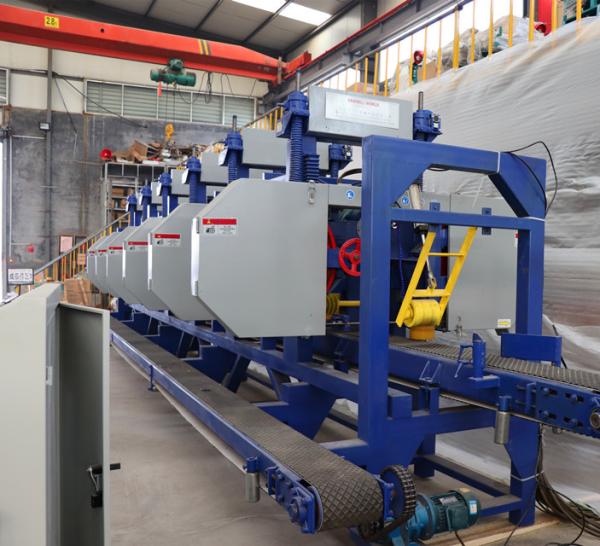

Detailed Image -6heads reaw equipment
Multiple Heads Horizontal Resaw Bandsaw,Multi Blade Sawmill Machine 2 3 4 5 6 Heads Horizontal Resaw Bandsaw
Optional - board returning conveyor
Multiple Heads Horizontal Resaw Bandsaw,Multi Blade Sawmill Machine 2 3 4 5 6 Heads Horizontal Resaw Bandsaw

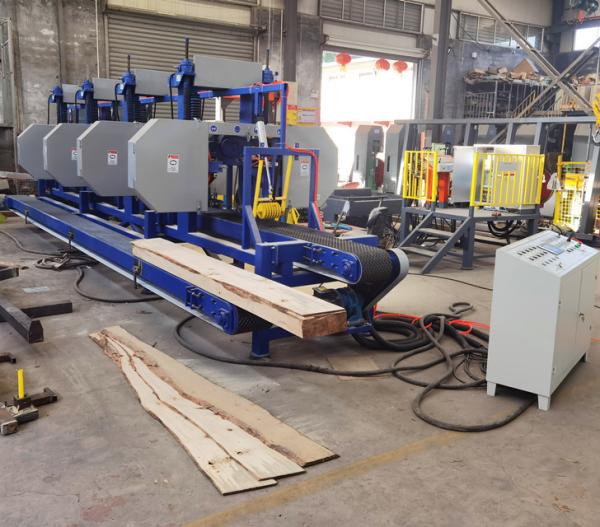

5heads reaw equipment
Multiple Heads Horizontal Resaw Bandsaw,Multi Blade Sawmill Machine 2 3 4 5 6 Heads Horizontal Resaw Bandsaw
4heads reaw equipment

Multiple Heads Horizontal Resaw Bandsaw,Multi Blade Sawmill Machine 2 3 4 5 6 Heads Horizontal Resaw Bandsaw
Container loading
Multiple Heads Horizontal Resaw Bandsaw,Multi Blade Sawmill Machine 2 3 4 5 6 Heads Horizontal Resaw Bandsaw
Optional - max. sawing width upto 640mm
Multiple Heads Horizontal Resaw Bandsaw,Multi Blade Sawmill Machine 2 3 4 5 6 Heads Horizontal Resaw Bandsaw
Related Saw Machine

TWIN BANDSAW FOR LOG EDGES CUTTING

Designed to receive logs and make two vertical cuts removing a slab from either side of the log.

· Ideal to cut pine, eucalyptus, and teak.

· High-precision cutting.

· Laterally-supported chain.

· High-production continuous feed system.

· Produces up to 4,000 m³ per month.

· Highly efficient use of wood, with the finest cut on the market.

· Motorization and control panel included.

· Automatic feed

Technical Specifications:

Technical dataSLS350SLS500
Maximum log diameter350mm500mm
Minimum log diameter100mm100mm
Wood length1000 to 3000mm1000 to 3000mm
Feed speed9-25m/min (inverter)9-25m/min (inverter)
Conveyor length7000mm3500mm x 2
Band wheel diameter700mm760mm
Width of saw blade50-80mm50-100mm
Length of saw blade48505200mm
Thickness of saw blade0.9mm0.9mm
Saw motor2x18.5kw2x22kw
Feed motor5.5kw4kw x 2
Sawn sizing controlTouching screen auto setworksTouching screen auto setworks
