Woodworking Horizontal Band Resaw Machine With Return Conveyor Belt
Woodworking Horizontal Band Resaw Machine With Return Conveyor Belt
Woodworking Horizontal Band Resaw Machine With Return Conveyor Belt
Woodworking Horizontal Band Resaw Machine With Return Conveyor Belt
Woodworking Horizontal Band Resaw Machine With Return Conveyor Belt
Woodworking Horizontal Band Resaw Machine With Return Conveyor Belt
Woodworking Horizontal Band Resaw Machine With Return Conveyor Belt
Woodworking Horizontal Band Resaw Machine With Return Conveyor Belt
Woodworking Horizontal Band Resaw Machine With Return Conveyor Belt
Woodworking Horizontal Band Resaw Machine With Return Conveyor Belt
Woodworking Horizontal Band Resaw Machine With Return Conveyor Belt
Woodworking Horizontal Band Resaw Machine With Return Conveyor Belt
Woodworking Horizontal Band Resaw Machine With Return Conveyor Belt
Woodworking Horizontal Band Resaw Machine With Return Conveyor Belt
Woodworking Horizontal Band Resaw Machine With Return Conveyor Belt
Woodworking Horizontal Band Resaw Machine With Return Conveyor Belt
Woodworking Horizontal Band Resaw Machine With Return Conveyor Belt
Woodworking Horizontal Band Resaw Machine With Return Conveyor Belt
Woodworking Horizontal Band Resaw Machine With Return Conveyor Belt
Woodworking Horizontal Band Resaw Machine With Return Conveyor Belt
Woodworking Horizontal Band Resaw Machine With Return Conveyor Belt
Woodworking Horizontal Band Resaw Machine With Return Conveyor Belt
Specifications
Place of Origin :
Shandong Province, China
Brand Name :
SH
Certification :
ISO9001
Model Number :
SHJM800, SHJM400, SHJM650, SHJM1000
MOQ :
1 SET
Price :
US $5,000-14,950 / Set
Packaging Details :
container loading
Delivery Time :
within 15 days
Payment Terms :
T/T or L/C at sight, Western Union
Supply Ability :
1000 Set/Sets per Year
Name :
horizontal wood cutting band saw
Application :
wood cutting,Furniture
Max. sawing width :
400mm, 650mm, 800mm
Max. sawing height :
110mm
Motor power :
15kw to 30kw
Feeding motor :
0.75kw, 1.5kw
Feeding speed :
0.1 to 30meter/min
Min sawing thickness :
2mm
Weight :
1850kgs to 2750kgs
Keyword :
wood cutting band saw,Wood Table Saw Machine,Horizontal Band Saw
Guarantee :
1 year
After-sales service :
video technical support, spare parts
Description

Woodworking Horizontal Band Resaw Machine With Return conveyor Belt
Precision Wood Cutting Horizontal Resaw Band Saws For Sale

  • Digital Control Sawing Thickness Setting
  • Max. sawing wood width: 1300mm
  • Saw wheel diameter : 600mm or 700mm or 800mm

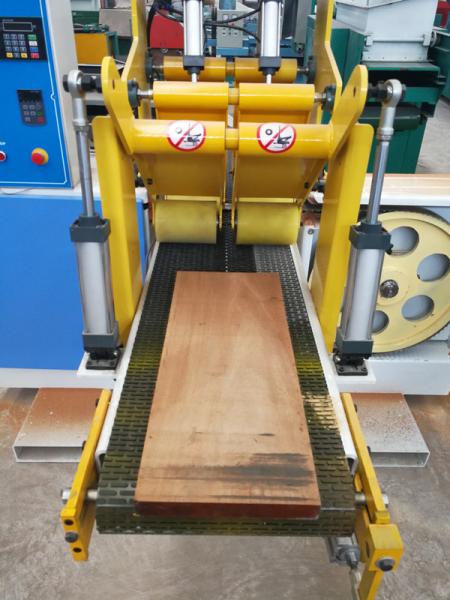

  • With board returning conveyor
  • Specifications:
Model
SHJM-400

SHJM-650
SHJM-800
Saw Wheel Diameter

600MM
600MM
700MM
Max Sawing Wood Width
400MM
650MM
800MM
Max Sawing Height
110MM

Min Sawing Thickness

2MM

Feeding Speed

0.1-30 Meters/Minute

Motor Power
15KW

18.5KW

22KW

Feeding Motor

0.75KW

0.75KW
1.5KW

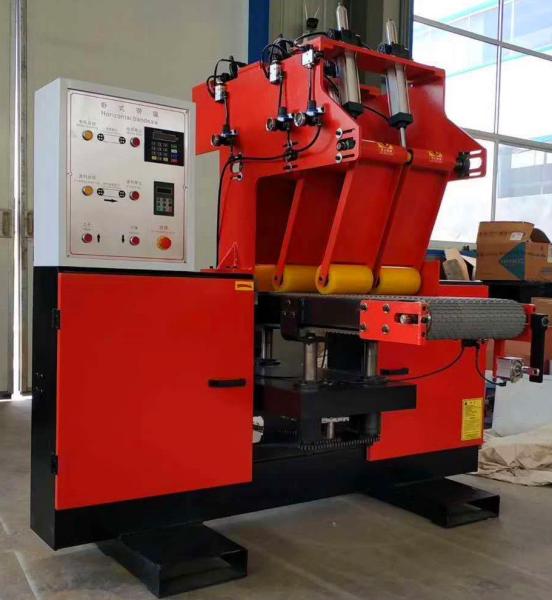

Detailed Image
Woodworking Horizontal Band Resaw Machine With Return Conveyor BeltWoodworking Horizontal Band Resaw Machine With Return Conveyor BeltWoodworking Horizontal Band Resaw Machine With Return Conveyor Belt
Related Saw Machine

Multiple Heads Horizontal Resaw Band Saws

  • This machine is easy-operated,high efficiency and easy-installed.
  • The head quantity is given option from one to six .The user will get multi board at one time to improve the efficiency.
  • Main Features:

1.The head quantity from one to six is available.
2.Touch screen setting sawing thickness.
3.Variable Frequency Speed Adjustable Feeding Speed.
Technical data

Technical specificationsDT300-1DT300-2DT300-3DT300-5DT300-6
Sawing width300mm300mm300mm300mm300mm
Minimum wood thickness2mm2mm2mm2mm2mm
Maximum wood height260mm260mm260mm260mm260mm
Band wheel diameter700mm700mm700mm700mm700mm
Saw motor15kw15kw x 215kw x 315kw x 515kw x 6
Saw machine length3500mm4500mm5800mm8500mm11000
Weight900kg1500kg2200kg3500kg5000kg
FeedingVariable frequency speed adjustable conveyor
OperationTouching screen auto setworks for sawn thickness


Detailed Image -6heads reaw equipment
Woodworking Horizontal Band Resaw Machine With Return Conveyor Belt
Optional - board returning conveyor
Woodworking Horizontal Band Resaw Machine With Return Conveyor Belt
5heads reaw equipment
Woodworking Horizontal Band Resaw Machine With Return Conveyor Belt
4heads reaw equipment

Woodworking Horizontal Band Resaw Machine With Return Conveyor Belt
