15KW 30KW Wood Portable Sawmill Mobile Wood Milling Machine With Cant Hook
15KW 30KW Wood Portable Sawmill Mobile Wood Milling Machine With Cant Hook
15KW 30KW Wood Portable Sawmill Mobile Wood Milling Machine With Cant Hook
15KW 30KW Wood Portable Sawmill Mobile Wood Milling Machine With Cant Hook
15KW 30KW Wood Portable Sawmill Mobile Wood Milling Machine With Cant Hook
15KW 30KW Wood Portable Sawmill Mobile Wood Milling Machine With Cant Hook
15KW 30KW Wood Portable Sawmill Mobile Wood Milling Machine With Cant Hook
15KW 30KW Wood Portable Sawmill Mobile Wood Milling Machine With Cant Hook
15KW 30KW Wood Portable Sawmill Mobile Wood Milling Machine With Cant Hook
15KW 30KW Wood Portable Sawmill Mobile Wood Milling Machine With Cant Hook
15KW 30KW Wood Portable Sawmill Mobile Wood Milling Machine With Cant Hook
15KW 30KW Wood Portable Sawmill Mobile Wood Milling Machine With Cant Hook
Specifications
Place of Origin :
Shandong Province, China
Brand Name :
SH
Certification :
ISO9001
Model Number :
MJ700,MJ1000,MJ1300,MJ1600
MOQ :
1 SET sawmill
Price :
US $4,600 - 10,200 / Set
Packaging Details :
Wooden crates or iron frame packings
Delivery Time :
within 15 days
Payment Terms :
T/T or L/C at sight, Western Union
Supply Ability :
1000sets/year
Name :
Diesel Engine portable horizontal band sawmill
Condition :
New
Power(w) :
15kw ,18.5kw, 22kw, 30kw
Voltage :
380V or others
Saw wheel diameter :
700mm
Max. sawing log width :
1600mm
Application :
wood cutting,Wood Saw,wood industry,Wood Factory
Keyword :
wood cutting band saw,Horizontal Band Sawmill,sawmill
Warranty :
12 months
After-sales service provided :
Online support,commissioning and training
Description

Wood working portable band saw mills timber sawmill log cutting machine with cant hook

The portable horizontal band sawmill is designed to meet the requirements of customers in Africa ,South America and eastern europe.

  • It is simple installation,easy operation,labor saving,and high productivity.
  • This machine can be drived by either electric motor or diesel engine.
  • It is widely used by the timber processing enterprises in the virgin forests areas.

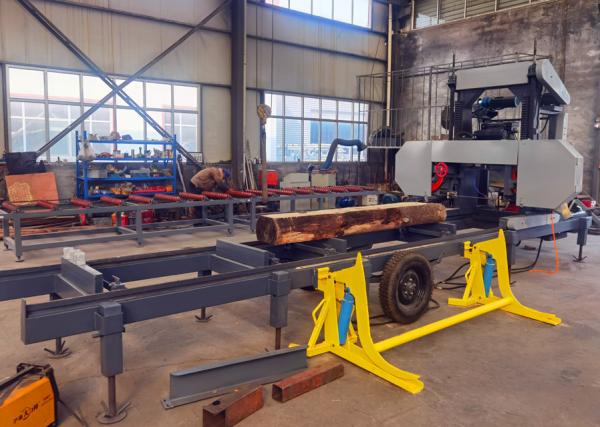

Diesel Engine Powered Horizontal Portable Band Sawmill

Technical Parameter

 MJ700D MJ1000D MJ1300D MJ1600D

Sawing Wood Diameter

 700MM 1000 1300 1600

Saw Wheel Diameter(MM)

 600 700 700 700

Sawing Wood Thicknes

 10-200 10-300 10-300 10-300

Sawing Wood Length (MM)

 1300-4500 1300-4500 1300-4500 1300-4500

Engine

 22HP Petrol 22HP Diesel 25HP Diesel 27HP Diesel

Band Saw Blade Length

 5500 6100 6600 7100

Machine Length(MM)

 5800 5800 5800 5800

Total Weight (KG)

 800 1100 1300 1500

15KW 30KW Wood Portable Sawmill Mobile Wood Milling Machine With Cant Hook

Optional Parts: Hydraulic log loading arm

15KW 30KW Wood Portable Sawmill Mobile Wood Milling Machine With Cant Hook

Electric Powered Portable Horizontal Band Sawmill ​

Technical Parameter

 MJ700E MJ1000E MJ1300E MJ1600E

Max. Sawing Wood Diameter

 700MM 1000MM 1300MM 1600MM

Saw Wheel Diameter

 600MM 700MM 700MM 700MM

Sawing Wood Thickness

 10-200MM 10-300MM 10-300MM 10-300MM

Sawing Wood Length MM

 1300-4500 1300-4500 1300-4500 1300-4500

Main Motor Power

 15KW 18.5KW 22KW 30KW

Lifting Motor Power

 1.1KW 1.1KW 1.1KW 1.1KW

Total Weight (KG)

 600 1100 1300 1500

15KW 30KW Wood Portable Sawmill Mobile Wood Milling Machine With Cant Hook

15KW 30KW Wood Portable Sawmill Mobile Wood Milling Machine With Cant Hook

CNC Automatic Sawmill

15KW 30KW Wood Portable Sawmill Mobile Wood Milling Machine With Cant Hook

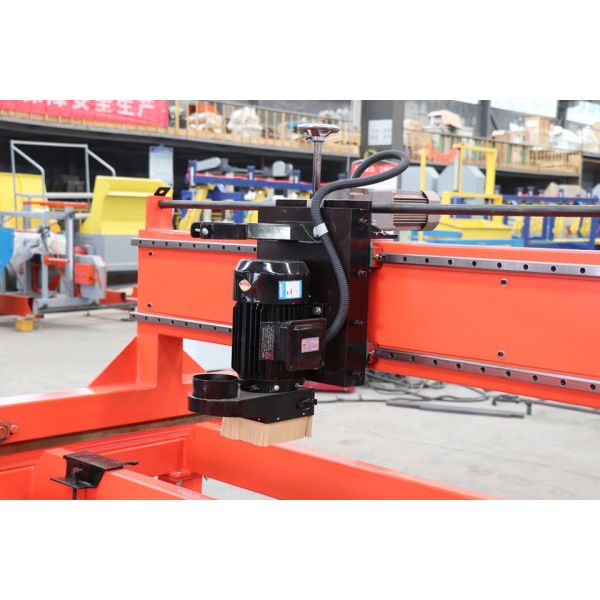

Wood Planer that uses same sawmill track with the sawmill

Model MB26 MB36 MB700 MB1000 MB1300
Processing Plank Width 650mm 900mm 700mm 1000mm 1300mm
Processing Plank Length 3000mm 3000mm 4500mm 4500mm 4500mm
Processing Plank Thickness 10-200MM 10-200MM 10-200MM 10-200MM 10-200MM
Main Motor Power 3kw 3kw 3kw 3kw 3kw
Planing Head Diameter 100mm 100mm 100mm 100mm 100mm
Polishing Head Diameter 125mm 125mm 125mm 125mm 125mm
Dust Hole 100mm 100mm 100mm 100mm 100mm
Weight 180kg 200kg 180kg 230kg 260kg
Matching model SW26 SW36 MJ700 MJ1000 MJ1300

15KW 30KW Wood Portable Sawmill Mobile Wood Milling Machine With Cant Hook

Hydraulic Automatic Sawmill

Technical Specifications:

Model MJH1000A MJH700A
Max Sawing Wood Diameter 1000mm 700mm
Saw Wheel Diameter 700mm 700mm
Max Sawn Thickness 300mm 300mm
Standard Sawing Wood Length 4.5 meters 4.5meters
Main Motor Power 22kw 18.5KW
Hydraulic motor power 4kw 3kw
Saw Blade Width 40mm-80mm 40mm-80mm
Machine Length 6000mm 6000mm
Weight 3500kg 3000kg



















15KW 30KW Wood Portable Sawmill Mobile Wood Milling Machine With Cant Hook
15KW 30KW Wood Portable Sawmill Mobile Wood Milling Machine With Cant Hook

15KW 30KW Wood Portable Sawmill Mobile Wood Milling Machine With Cant Hook

Auxiliary Parts:

Item Auxiliary Equipment
1 MR1111 Automatic Band Saw Blade Sharpener
2 Sand Wheel For MR1111
3 UN65 Flash Seal Welding Machine
4 MR417 Roll Machine
5 Dual Tooth Setter
6 USA Lenox Bi-Metal Blade For MJ700 5500*54*1.07mm
USA Lenox Bi-Metal Blade For MJ1000 6100*54*1.07mm
USA Lenox Bi-Metal Blade For MJ1300 6600*54*1.07mm
USA Lenox Bi-Metal Blade For MJ1600 7100*54*1.07mm
7 Wood Cant Hook 48” Handle
