Hydraulic Portable Sawmill Wood Cutting Band Saw Machine, Sawmill in Hydraulic Operation
Hydraulic Portable Sawmill Wood Cutting Band Saw Machine, Sawmill in Hydraulic Operation
Hydraulic Portable Sawmill Wood Cutting Band Saw Machine, Sawmill in Hydraulic Operation
Hydraulic Portable Sawmill Wood Cutting Band Saw Machine, Sawmill in Hydraulic Operation
Hydraulic Portable Sawmill Wood Cutting Band Saw Machine, Sawmill in Hydraulic Operation
Hydraulic Portable Sawmill Wood Cutting Band Saw Machine, Sawmill in Hydraulic Operation
Hydraulic Portable Sawmill Wood Cutting Band Saw Machine, Sawmill in Hydraulic Operation
Hydraulic Portable Sawmill Wood Cutting Band Saw Machine, Sawmill in Hydraulic Operation
Hydraulic Portable Sawmill Wood Cutting Band Saw Machine, Sawmill in Hydraulic Operation
Hydraulic Portable Sawmill Wood Cutting Band Saw Machine, Sawmill in Hydraulic Operation
Hydraulic Portable Sawmill Wood Cutting Band Saw Machine, Sawmill in Hydraulic Operation
Hydraulic Portable Sawmill Wood Cutting Band Saw Machine, Sawmill in Hydraulic Operation
Specifications
Place of Origin :
Shandong Province, China
Brand Name :
SH
Model Number :
MJH700A, MJH1000A,MJH1300A
MOQ :
1 SET
Price :
US $15,900 - 24,700 / Set
Packaging Details :
Container loading
Delivery Time :
within 25 days
Payment Terms :
T/T or L/C at sight, Western Union
Supply Ability :
1000sets/year
Certification :
ISO9001
Name :
Hydraulic horizontal band sawmill production line
max.sawing log diameter :
1000mm or 40''
sawing log length :
4500mm or as customer needs
log rotation :
hydraulic
Voltage :
380V/3phase/50HZ or as customer needs
Power(W) :
22 kw
Control :
Automatic operation
Other :
We can customize machine according to customer needs
Guarnatee :
1 year
After-sales service :
Video technical support, spare parts
Description

Hydraulic horizontal band sawmill production line

--- We design as customer sawing requirements like log diamter, length, end wood board sizes, etc.

MJH700A Hydraulic Sawmill
max. sawing log diameter 700mm
saw wheel diameter 700mm
max. sawn thickness 300mm
sawing length 4500mm
main motor power 22KW
hydraulic pump motor 4KW
blade width range 32mm-80mm
sawn sizes setting mode CNC touching screen
log rotation hydraulic
saw head walking inverter
wood grasp mode hydraulic
track length 6000mm
machine weight 3500KW
Central control operation platform 1pc

Hydraulic Portable Sawmill Wood Cutting Band Saw Machine, Sawmill in Hydraulic Operation

SL250-4000 Log loading deck
length 4000mm
width 2500mm
motor hydraulic motor
weight 1500KG

Hydraulic Portable Sawmill Wood Cutting Band Saw Machine, Sawmill in Hydraulic Operation

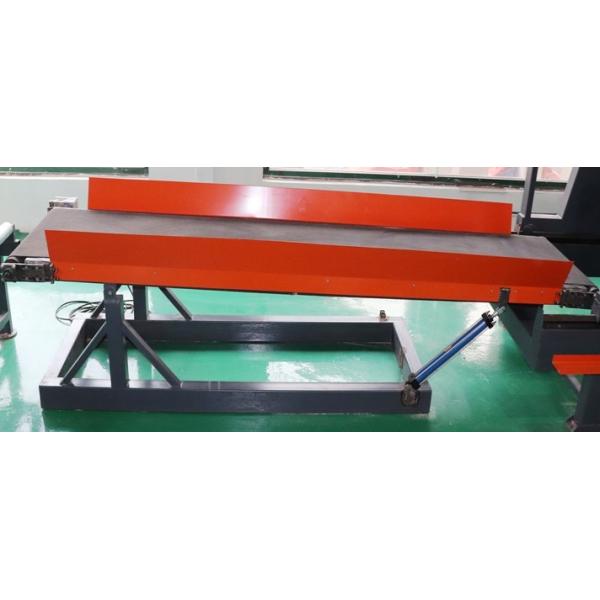

HC600-5000 planks returning conveyor
conveyor width 600
conveyor length 5000
motor 0.75KW
Unilateral lifting method hydraulic motor

Hydraulic Portable Sawmill Wood Cutting Band Saw Machine, Sawmill in Hydraulic Operation

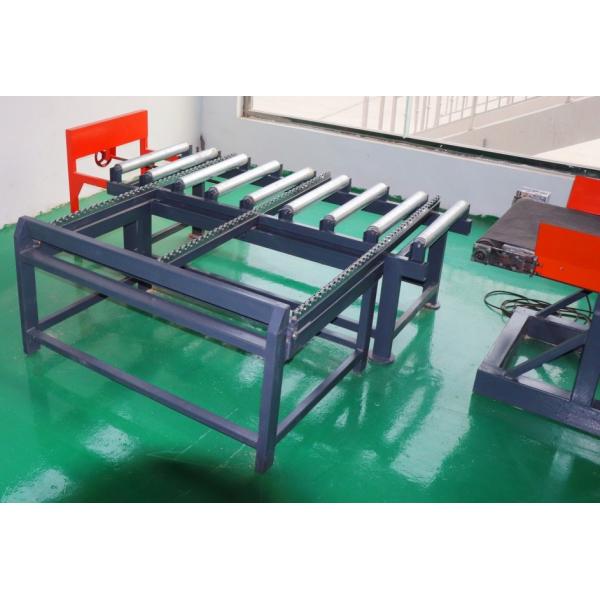

GX5000-2000 Plate roller automatic ramp
roller length 5000mm
Slope pulley frame length 2000mm
Slope pulley frame width 2500mm
power Self-induction (hydraulic)

Hydraulic Portable Sawmill Wood Cutting Band Saw Machine, Sawmill in Hydraulic Operation

EG600A Board Edger Saw
max. sawing width 600mm
min. sawing width 50mm
max. sawing thickness 70mm
blade diameter 350mm
motor 15kw

Hydraulic Portable Sawmill Wood Cutting Band Saw Machine, Sawmill in Hydraulic Operation

BC300 wood slabs cutting saw
sawing max. width 300mm
sawing max. thickness 80mm
blade diameter 405mm
motor 7.5KW*2

Hydraulic Portable Sawmill Wood Cutting Band Saw Machine, Sawmill in Hydraulic Operation

DP80-300 multi blades ripsaw for planks
sawing max. width 300mm
sawing max. thickness 80mm
blade diameter 180mm
motor 15kw*2

Hydraulic Portable Sawmill Wood Cutting Band Saw Machine, Sawmill in Hydraulic Operation

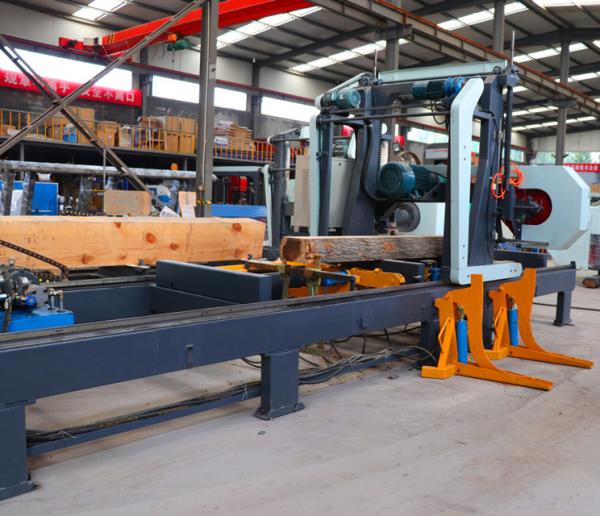

Hydraulic Automatic Horizontal Band Sawmill
Combined with hydraulic automation technology, the hydraulic automatic horizontal band sawmill realizes all digital intelligent control. Chinese and English operating systems, automatic wood rotation, sawing and cutting of large diameter wood, simple operation, precise cutting thickness to improve wood usage rate .

Technical Specifications:

Model MJH1000A MJH700A
Max Sawing Wood Diameter 1000mm 700mm
Saw Wheel Diameter 700mm 700mm
Max Sawn Thickness 300mm 300mm
Standard Sawing Wood Length 4.5 meters 4.5meters
Main Motor Power 22kw 18.5KW
Hydraulic motor power 4kw 3kw
Saw Blade Width 40mm-80mm 40mm-80mm
Machine Length 6000mm 6000mm
Weight 3500kg 3000kg



















Hydraulic Portable Sawmill Wood Cutting Band Saw Machine, Sawmill in Hydraulic Operation
Hydraulic Portable Sawmill Wood Cutting Band Saw Machine, Sawmill in Hydraulic Operation

Hydraulic Band Sawmill Machine With Electric Motor

The max. cutting wood diameter can be customized as your requests

Model
 MJH1000E MJH700E
Max Sawing Wood Diameter
 1000mm 700mm
Saw Wheel Diameter
 700mm 700mm
Max Sawing Wood Thickness
 300mm 300mm
Standard Sawing Wood Length
 4000mm 4000mm
Electric Motor Power
 30kw 22kw
Up/Down Electric Motor
 1.5kw 1.5kw
Forward/backward Electric Motor
 2.2kw 2.2kw
Saw Blade Width
 27mm-75mm 27mm-75mm
Blade Tension
 Hydraulic Hydraulic
Machine Length
 5800mm 5800mm
Weight
 2500kg 2300kg

Standard Configuration
Hydraulic Portable Sawmill Wood Cutting Band Saw Machine, Sawmill in Hydraulic Operation

Touch Screen Accuset Setworks
Automatically moves head for each cut and head walking speed is Frequency variable

 Hydraulic Portable Sawmill Wood Cutting Band Saw Machine, Sawmill in Hydraulic Operation

Hydraulic Clamp *1
Secure and stabilize the log
Hydraulic Portable Sawmill Wood Cutting Band Saw Machine, Sawmill in Hydraulic Operation

Hydraulic Wood Clamp*4
Secure and stabilize the log

 Hydraulic Portable Sawmill Wood Cutting Band Saw Machine, Sawmill in Hydraulic Operation

Hydraulic vertical side supports *4
Secure and stabilize the log
Hydraulic Portable Sawmill Wood Cutting Band Saw Machine, Sawmill in Hydraulic Operation

Hydraulic Log Loading
Arm *1

 Hydraulic Portable Sawmill Wood Cutting Band Saw Machine, Sawmill in Hydraulic Operation Board automatic return hook
Optional parts:
Hydraulic Portable Sawmill Wood Cutting Band Saw Machine, Sawmill in Hydraulic Operation

Mobile Wheels,
8 Adjustable Up/down legs

 Hydraulic Portable Sawmill Wood Cutting Band Saw Machine, Sawmill in Hydraulic Operation

Hydraulic bi-directional Chain log turner*2
For max. log control
Hydraulic Portable Sawmill Wood Cutting Band Saw Machine, Sawmill in Hydraulic Operation Hydraulic plank roller axle x1 Hydraulic Portable Sawmill Wood Cutting Band Saw Machine, Sawmill in Hydraulic Operation Extend The Rail Length

Hydraulic Portable Sawmill Wood Cutting Band Saw Machine, Sawmill in Hydraulic Operation
