800mm Multi Blade Rip Saw Machine Infrared Positioning Multiple Rip Saw
800mm Multi Blade Rip Saw Machine Infrared Positioning Multiple Rip Saw
800mm Multi Blade Rip Saw Machine Infrared Positioning Multiple Rip Saw
800mm Multi Blade Rip Saw Machine Infrared Positioning Multiple Rip Saw
800mm Multi Blade Rip Saw Machine Infrared Positioning Multiple Rip Saw
800mm Multi Blade Rip Saw Machine Infrared Positioning Multiple Rip Saw
800mm Multi Blade Rip Saw Machine Infrared Positioning Multiple Rip Saw
800mm Multi Blade Rip Saw Machine Infrared Positioning Multiple Rip Saw
800mm Multi Blade Rip Saw Machine Infrared Positioning Multiple Rip Saw
800mm Multi Blade Rip Saw Machine Infrared Positioning Multiple Rip Saw
800mm Multi Blade Rip Saw Machine Infrared Positioning Multiple Rip Saw
800mm Multi Blade Rip Saw Machine Infrared Positioning Multiple Rip Saw
Specifications
Brand Name :
SH
Model Number :
HW500, HW800, ZHW800-70, ZHW800-80, ZHW800-100
Certification :
ISO9001
Place of Origin :
Shandong Province, China
MOQ :
1 set multi rip saw
Price :
US $2,788 - 4,788/ Set
Payment Terms :
Western Union, L/C, T/T
Supply Ability :
1000sets/year
Delivery Time :
within 15 days
Packaging Details :
iron made frame packing
Name :
Wood saw machine circular saw multi blades rip saw
Sawing max. width :
800mm
Sawing max. thickness :
50mm
Blade QTY :
1-10pcs
Function :
with infrared positioning
Usage :
sawing planks into small pcs
Carbide blade diameter :
210mm
Rotation speed :
3500r/min
Guarantee :
1 year
After-sales service provided :
Video, technical support
Description

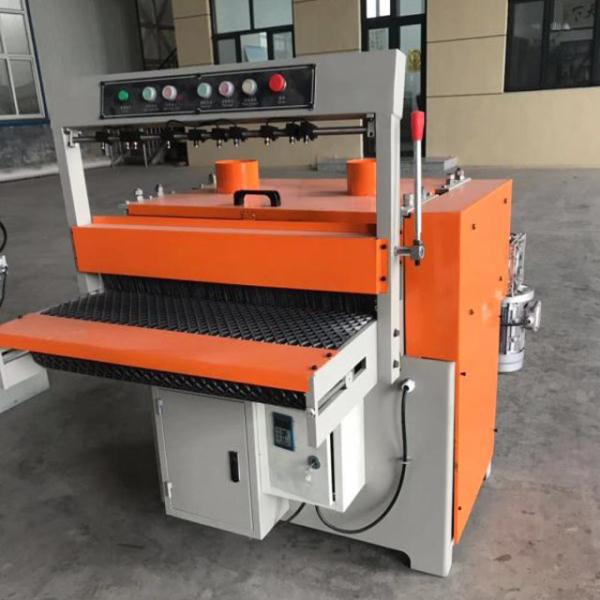

Wood Panels sawing sierra multiple blade rip saw with infrared positioning , panel multiple rip saw machine

Multi Blades Rip Saw

Introduction:

  • with Infrared positioning
  • for board edges cutting
  • sawing planks into small pcs
  • easy usage, no installation

Technical data :

Model HW500 HW800
Sawing thickness 15-50mm 15-50mm
Sawing width 500mm 800mm
Circular blade diameter 210mm 210mm
Electric motor 15KW 18.5KW
Blade qty 1P-6P 1P-10P
Rotation speed 3500/min 3500/min

Photos:

800mm Multi Blade Rip Saw Machine Infrared Positioning Multiple Rip Saw800mm Multi Blade Rip Saw Machine Infrared Positioning Multiple Rip Saw

Heavy Duty Single Shaft Multi Blade Rip Saw / Board Edger Saw Machine

Introduction:

  • with Infrared positioning
  • for big thickness board edger cutting
  • high working efficiency, low cost ,fulfil the max. value of the wood
  • easy usage, no installation

Technical data :

Model ZHW800-70 ZHW800-80 ZHW800-100
Sawing wood height 10-70mm 10-80mm 20-100mm
Sawing wood width 800mm 800mm 800mm
Carbide blade diameter 280mm 305mm 355mm
Main motor 22KW 30KW 37KW
Blade quantity 1P-10P 1P-10P 1P-10P
Rotation speed 3500/min 3500/min 3500/min

800mm Multi Blade Rip Saw Machine Infrared Positioning Multiple Rip Saw

Related Saw Machine:

Wood Slabs Cutting Circular Sawmill

Specifications:

Model

Specifications

 BPJ200 BPJ250 BPJ300
Cutting width (mm) 200 250 300
Motor power (KW) 7.5kw x 2 7.5kw x 2 7.5kw x 2
Feeding Frequency variable auto feeding
Circular blade diameter (mm) 300 355 405
Weight (kg) 200 220 250

We can also do bigger model as customer needs .

Photos :

800mm Multi Blade Rip Saw Machine Infrared Positioning Multiple Rip Saw

800mm Multi Blade Rip Saw Machine Infrared Positioning Multiple Rip Saw

Double Shaft Multi Blades Rip Saw

Multi Blades Rip Saw- For wood panels/plank cutting

Model
SH60-300
SH80-300
SH100-300
SH120-300
SH150-300
Max. Sawing width
250-300mm
250-300mm
250-300mm
250-300mm
250-300mm
Max. Sawing thickness
60mm
30-80mm
40-100mm
50-120mm
60-150mm
Motor
18.5KW/22KW
22KW*2
22KW*2
22KW*2
30KW*2
Saw Blade Diameter
150MM
180mm
210mm
230mm
255mm
Spindle Diameter
50mm
50mm
50mm
50mm
50mm
Weight
1190kg
1260kg
1420kg
1560kg
1620kg

Double Spindle Panel Cutting Multiple Blades Rip Saw -Heavy Duty Type

Model
SH100-400
SH120-400
SH160-400
SH200-400
SH250-400
SH270-400
SH290-400
Sawing width
350-400mm
350-400mm
350-400mm
350-400mm
350-400mm
350-400mm
350-400mm
Sawing thickness
40-100mm
50-120mm
70-160mm
90-200mm
110-250mm
130-270mm
150-290mm
Motor
30kw*2
37kw*2
37/45kw
37/45kw
45kw*2
45/55kw
55KW*2
Saw Blade Diameter
180MM
230mm
255mm
230mm
280mm
280mm
380mm
Spindle Diameter
70mm
70mm
70mm
80mm
80mm
80mm
100mm
Weight
2330kg
2450kg
2480kg
2550kg
2580kg
2620kg
2700kg

800mm Multi Blade Rip Saw Machine Infrared Positioning Multiple Rip Saw800mm Multi Blade Rip Saw Machine Infrared Positioning Multiple Rip Saw
