Specifications
Brand Name :
SH
Model Number :
DS700 D1300,DS2000
Certification :
ISO9001
Place of Origin :
Shandong Province, China
MOQ :
1 SET Circular saw machine wood cutting machine
Price :
US $8,700 - 14,800 / Set
Payment Terms :
T/T or L/C at sight, Western Union
Supply Ability :
500sets/year
Delivery Time :
within 15 days
Packaging Details :
container loading
Name :
Circular saw machine wood cutting machine
Application :
sawing round logs into square timber
Sawing log max. diameter :
1300mm or 2000mm
Sawn timber max. size :
210x210mm, 300x210mm
Carbide blade diameter :
546mm, 760mm
Saw head walking :
Automatic frequency speed adjustable
Main motor power :
15kw, 22kw
Walking power :
2.2kw, 3kw
Sawing log max. length :
6meters or extend sawmill track
After-sale service :
spare parts, online support 24hours
Description

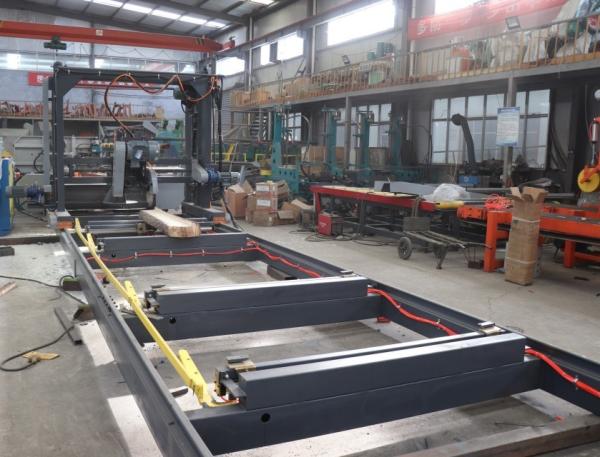

Hardlogs Wood Cutting Circular Saw Machine,Portable Swing blade angle circular sawmill with big motor power

Double Saw blade Angle Circular Swing Blades SawMill

  • The Double Saw Blade Angle Sawmill is a versatile machine for the radial lumber, Pooh flooring material,carpenter lumber and palette lath production.
  • The Blades enables cutting in both directions,which considerably increases the cutting capacity.
  • Quick and accurate electronic positioning guarantee invariable high productivity and safety at work.
  • The angle circular saw is a machinethat:
  • Produces lumber with saw-cut dimension accuracy up to ± 1mm
  • Produces lumber of excellent surface quality
  • Results in very low operational costs
  • Electric invertor crane, computer touch screen for length calculation and remote control.

Specification:

  • Max. sawing timber size : 300mm x 210mm
  • Carbide circular blade diameter : 760mm , 546mm
  • Log feeding : frequency auto feeding
Technical Parameter DS700 DS1300 DS2000
Max Sawing Wood Diameter 700MM 1300MM 2000MM
Max Sawing Wood Size 150*150MM 210 * 210MM 300*210MM
Saw Blade Diameter 2*424MM 2*546MM

1*760mm

1*546mm
Motors Power(KW)

11KW*2, 1.5KW*2, 2.2kw x 1

15KW*2, 1.5KW*1

2.2kw *1,3kw *1

22KW*1, 15KW*1

1.5KW*1 ,2.2kw *1

3kw *1
Max Swing Wood Length 6 Meters 6 Meters 6 Meters
Machine weight 1500KG 2000KG 3000KG

Photos:

Twin-Blade Log Cutting Sawmill Timber Multi-Circular Saw Machine Portable Circular-Blade Mills

Twin-Blade Log Cutting Sawmill Timber Multi-Circular Saw Machine Portable Circular-Blade Mills

Hot Selling Products:

Twin blades sliding table sawmill -manual type

model TT1500 TT2000 TT3000
Cut log max. diameter 400mm 400mm 400mm
Cut length 1.5m 2m 3m
Blade diameter 500mm 500mm 500mm
Main Motor power 7.5KW*2 7.5KW X 2 sets 7.5KW X 2 sets
Track length 3000mm 5000mm 6000mm
Log clamping Pneumatic up/down Pneumatic up/down Pneumatic up/down
Carriage Rail Mode Linear Axis Linear Axis Linear Axis
Feeding mode Manual Manual Manual
Setting size mode Manual Manual Manual

Twin-Blade Log Cutting Sawmill Timber Multi-Circular Saw Machine Portable Circular-Blade MillsTwin-Blade Log Cutting Sawmill Timber Multi-Circular Saw Machine Portable Circular-Blade Mills

Twin blades sliding table sawmill -computer type

Twin-Blade Log Cutting Sawmill Timber Multi-Circular Saw Machine Portable Circular-Blade Mills

MJ109 Woodworking Circular Table Saw

Twin-Blade Log Cutting Sawmill Timber Multi-Circular Saw Machine Portable Circular-Blade Mills

Multi Blades Rip Saw

Introduction:

  • with Infrared positioning
  • for board edges cutting
  • sawing planks into small pcs
  • easy usage, no installation

Technical data :

Model HW500 HW800
Sawing thickness 15-50mm 15-50mm
Sawing width 500mm 800mm
Circular blade diameter 210mm 210mm
Electric motor 15KW 18.5KW
Blade qty 1P-6P 1P-10P
Rotation speed 3500/min 3500/min

Photos:

Twin-Blade Log Cutting Sawmill Timber Multi-Circular Saw Machine Portable Circular-Blade MillsTwin-Blade Log Cutting Sawmill Timber Multi-Circular Saw Machine Portable Circular-Blade Mills

Heavy Duty Single Shaft Multi Blade Rip Saw / Board Edger Saw Machine

Introduction:

  • with Infrared positioning
  • for big thickness board edger cutting
  • high working efficiency, low cost ,fulfil the max. value of the wood
  • easy usage, no installation

Technical data :

Model ZHW800-70 ZHW800-80 ZHW800-100
Sawing wood height 10-70mm 10-80mm 20-100mm
Sawing wood width 800mm 800mm 800mm
Carbide blade diameter 280mm 305mm 355mm
Main motor 22KW 30KW 37KW
Blade quantity 1P-10P 1P-10P 1P-10P
Rotation speed 3500/min 3500/min 3500/min

Twin-Blade Log Cutting Sawmill Timber Multi-Circular Saw Machine Portable Circular-Blade Mills
