Specifications
Brand Name :
SH
Model Number :
SHMF700/SHMF1100/SHMF1500
Certification :
ISO9001
Place of Origin :
Shandong Province, China
MOQ :
1 SET
Price :
US $8,000-4,9000 / Sets
Payment Terms :
T/T, Western Union
Supply Ability :
500 sets/Year
Delivery Time :
within 20 days
Packaging Details :
container loading of wood sawdust crusher
Name :
Sawdust Wood Crusher
Feeding Inlet Size :
1300*700mm,1500*800mm
Roll diameter :
700mm, 800mm
Blade Quantity :
84pcs
Raw material :
Wood Chips Wood Pieces
Main motor power :
132kw, 160KW
Raw Wood chipper size :
2-5 cm
Operation :
Automatic distant control
Capacity :
4-8 Tons/Hour
Magnetic system :
Optional to such out iron nails, etc
Keywords :
Sawdust Wood Hammer Mill
Application :
Processing wood chips into sawdust
Description

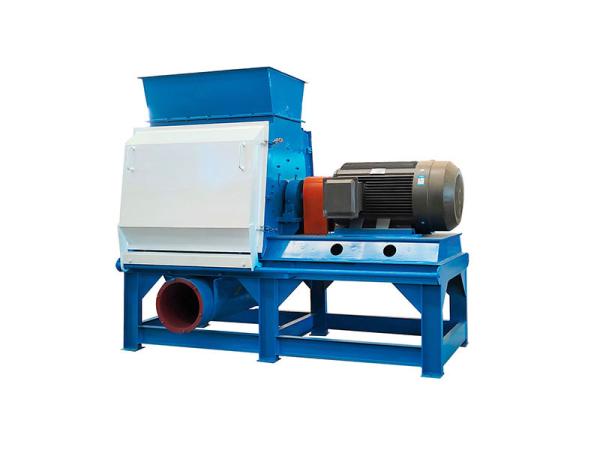

Wood Sawdust Machine

  • Automatic operation system.
  • Optional-Sacron Cyclone Dust Collector.
  • With Bag dust collection system.
  • With Magnetic system

Wood Chipper Sawdust Wood Powder Flour Mill Grinding Grinder Making Machine

Technical Data:

Model SHMF700 SHMF1100 SHMF1500
Feeding Inlet 1000*600mm 1000*700mm 1000*800mm
Blade Shaft Diameter 700mm 1100mm 1500mm
Blade Quantity 84 84 84
Blade Roll Speed 2800R/M 1450R/M 1450R/M
Motor Power 132KW 160KW 220KW
Discharge Mode Single auger discharge Double Auger discharge Double Auger discharge
Feed conveyor 10000mm 10000mm 10000mm
Discharge conveyor 6000mm 6000mm 6000mm
Max Processing wood size 20-50mm 20-50mm 20-50mm
Finished shape sawdust /powder sawdust/powder sawdust/powder
Capacity 3-4T/H 5-6T/H 8-10T/H
Integrated electric control box Soft starter*1 Soft starter*1 Soft starter*1

Wood Chipper Sawdust Wood Powder Flour Mill Grinding Grinder Making MachineWood Chipper Sawdust Wood Powder Flour Mill Grinding Grinder Making Machine

SH1300-600 Series Wood Crusher Machine is mainly used for building film faced plywood, wasted wood pallet, Tree bark, Slabs, off cuts, branches, straw and so on. It can work together with the baler breaker. This machine includes Host, chain plate, feeding & outlet conveyor system, intelligent electrical control. Chain Plate Feeding conveyor feeds raw materials more freely, no need changing the belt all the time. It is with reasonable structure, simple operation, high automatic level, and high safety coefficient and production capacity, less manpower, easy maintenance. It is the ideal equipment for biomass power generation enterprises.

Technical Parameter Of Host System Equipment

Model SH1300-600
Feeding Inlet 1300*600MM
Blade Roller Diameter 850MM
Blade Roller Speed 850RPM
Capacity 15-20T/Hour
YG8 Hammer Blade Quantity OR Blades 22 pcs hammers or 2sets blades
Max Processing Wood Diameter 450MM
Electric motor power 160KW
Wood Chipper Size 20-40MM
Working Life Of THE Hammer Blades 4000T-6000T

Technical Parameter Of Feeding System

Model SH1300-600
Slot Chain Plate Feeding Conveyor 1 Set
Feeding Motor Power 7.5KW+11KW
Chain Plate Width 1260MM
Conveyor Length 6000MM
Feeding Speed 2-18M/Min
Chain Material 16Mn
Position Limited Wheel 5
Gear Box Hard Teeth Faces

Technical Parameter Of Discharging System

Model SH1300-600
Outlet Conveyor Belt 1Set
First Outlet Motor 4KW With Gear Box
Second Outlet Motor 5.5KW With Gear Box
Conveyor Material 14-16# Channel/ Square Tube
Conveyor Length*Width 10m*1m
Conveyor Material Nylon 4 Layer
Outlet Height 3800-4500MM

Intelligent Electronic Control System

Model SH1300-600
Large Control Cabinet Ground
Host Start Model Soft Start
Feeding Speed Control Model Variable Frequency
Electrical Control Control Cabinet + Remote Control

High Efficiency Hydraulic System

Model SH1300-600
Control Model Solenoid Valve
Hydraulic Oil Pump 3KW
Hydraulic Oil Tank 120L

Wood Chipper Sawdust Wood Powder Flour Mill Grinding Grinder Making Machine

Wood Chipper Sawdust Wood Powder Flour Mill Grinding Grinder Making MachineWood Chipper Sawdust Wood Powder Flour Mill Grinding Grinder Making MachineWood Chipper Sawdust Wood Powder Flour Mill Grinding Grinder Making Machine
