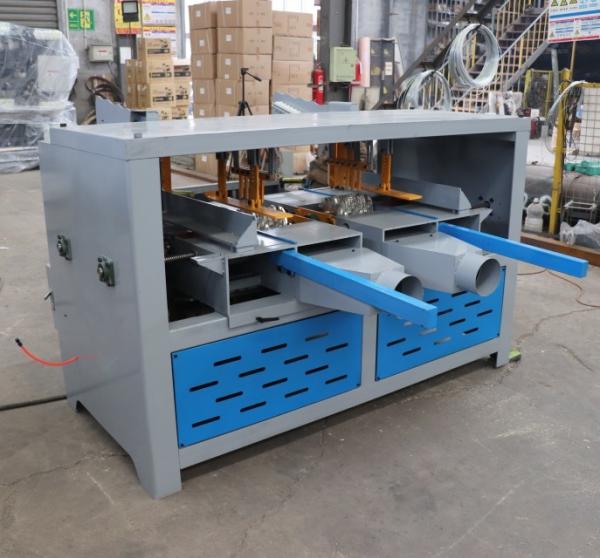

Pallet Notching,Wood Pallet Notching Machine, Pallet Notcher with double slots
Pallet Notching,Wood Pallet Notching Machine, Pallet Notcher with double slots
Pallet Notching,Wood Pallet Notching Machine, Pallet Notcher with double slots
Pallet Notching,Wood Pallet Notching Machine, Pallet Notcher with double slots
Pallet Notching,Wood Pallet Notching Machine, Pallet Notcher with double slots
Pallet Notching,Wood Pallet Notching Machine, Pallet Notcher with double slots
Pallet Notching,Wood Pallet Notching Machine, Pallet Notcher with double slots
Pallet Notching,Wood Pallet Notching Machine, Pallet Notcher with double slots
Pallet Notching,Wood Pallet Notching Machine, Pallet Notcher with double slots
Pallet Notching,Wood Pallet Notching Machine, Pallet Notcher with double slots
Pallet Notching,Wood Pallet Notching Machine, Pallet Notcher with double slots
Pallet Notching,Wood Pallet Notching Machine, Pallet Notcher with double slots
Specifications
Brand Name :
SH
Model Number :
WPN-1, WPN-2
Certification :
ISO9001
Place of Origin :
Shandong Province, China
MOQ :
1 SET Wood Pallet Notching
Price :
USD2800-3200/SET
Payment Terms :
T/T or L/C at sight, Western Union
Supply Ability :
100sets/month
Delivery Time :
within 20 days
Packaging Details :
wooden pallet or iron frame packings
Name :
Wood Pallet Notching
Application :
Making slot for wood pallet
Processing slot width :
200-230mm
Processing slot depth :
<45mm
Wood Pallet length :
max 1800mm or max. 1400mm
Wood Pallet Thickness :
40-60mm
Wood Pallet Width :
160mm or 90mm max.
Motor Power :
15KW, 30kw
After Warranty Service :
Video technical support, Spare parts
Warranty :
1 year
Description

Slot Milling Machine /Notcher Pallet Machine

  • Making slots onthe wood boards for pallet production
  • Technial data
Model WPN-1 WPN-2
Power 15kw 30kw
Material of knife Alloy Alloy
Capacity 600-800pics/h 1800pics/h
Processing size Wood pallet length: max 1800mm Wood pallet length: max 1400mm
Wood pallet width: 160mm Wood pallet width: max 90mm
Wood pallet thickness:40-60mm Wood pallet thickness: 40-60mm
Slot depth: <45mm Slot depth: <45mm
Slot width: 200-230mm Slot width: 200-230mm
Machine size 1200*1100*1200mm 2300*1300*1300mm
Machine wight 400kg 1000kg
Feature Slot smooth, size consistent
Apply for many kinds of slots, also can customized.


Single blade type
Pallet Notching,Wood Pallet Notching Machine, Pallet Notcher with double slots
Pallet Notching,Wood Pallet Notching Machine, Pallet Notcher with double slots
Double blade type
Pallet Notching,Wood Pallet Notching Machine, Pallet Notcher with double slots
Related Products

Semi-Automatic Pallet Nailing Machine with Palletizer

Technical data

Model AWPN-1500
Wood pallet length 600-1300mm
Wood pallet width 800-1700mm
Feeding mode Hand pull
Palletizing mode Automatic
Operational mode Pneumatic operation
Voltage 380V,480V or other
Air pressure 0.8MPA
Tank size 0.2 cubic
Nail gun speed 7 times /second.
Production efficiency 1-2pcs /min
Apply a nail Less than 90mm
Number of nail guns 3P OR 4P
Palletizing quantity 10P
Weight 2000kg

Pallet Notching,Wood Pallet Notching Machine, Pallet Notcher with double slotsPallet Notching,Wood Pallet Notching Machine, Pallet Notcher with double slots


Wood Pallet Dismanling Sawmill


1. easy operation
2. Ideal tool to take apart wooden pallet to save engrgy.
3. Strong saw blade to cutting the nail .
Specifications :


Model		 TP1400

Table Width		 1400mm

Table Length		 1200mm

Cutting Thickness		 5mm-150mm

Saw Wheel Diameter		 500mm

Motor Power		 7.5KW

Processing Pallet Efficiecy		 40-60 pcs/min

Band Saw Blade Size		 USA Blade 5550*41*1.3 mm

Overall Size		 2800*1500*1500mm

Weight		 700KG


Pallet Notching,Wood Pallet Notching Machine, Pallet Notcher with double slots

Wood Pallet Crusher

Technical data

Model SHTF1350
Feeding Inlet 1350*230mm
Blade Shaft Diameter 450mm
Blade Quantity 36
Motor Power 37KW
Conveyor belt length 3000mm
Production Capacity 60 Pallets/Hour
Weight 3200KG

Optional part:

Magnetic machine for sucking nails ,etc iron products

Extended outlet conveyor

Detailed Image

Pallet Notching,Wood Pallet Notching Machine, Pallet Notcher with double slots
