Specifications
Brand Name :
SH
Model Number :
DS700, D1300,DS2000
Certification :
ISO9001
Place of Origin :
Shandong Province, China
MOQ :
1 SET
Price :
US $6,700 - 14,800 / Set
Payment Terms :
T/T, Western Union
Supply Ability :
500sets/year
Delivery Time :
within 15 days
Packaging Details :
container loading
Name :
Circular Saw Machine
Application :
sawing round logs into square timber
Max. sawing width :
2000mm
Max. sawing height :
1500mm
Max. sawn size :
300mm x 210mm
Max. sawing length :
6meters or extend sawmill track
Saw head walking forward/back :
Frequency speed adjustable
Overall size :
3700 x 2100 x 2550mm
Main motor :
22kw , 15kw
After-sales service :
Video technical support, spare parts
Description

Electric Circular Saw Portable Sawmill for sale, Twin Blades Circular Sawmill with big motor power

Double Saw blade Angle Circular Swing Blades SawMill

  • The Double Saw Blade Angle Sawmill is a versatile machine for the radial lumber, Pooh flooring material,carpenter lumber and palette lath production.
  • The Blades enables cutting in both directions,which considerably increases the cutting capacity.
  • Quick and accurate electronic positioning guarantee invariable high productivity and safety at work.
  • The angle circular saw is a machinethat:
  • Produces lumber with saw-cut dimension accuracy up to ± 1mm
  • Produces lumber of excellent surface quality
  • Results in very low operational costs
  • Electric invertor crane, computer touch screen for length calculation and remote control.

Specification:

  • Max. sawing timber size : 300mm x 210mm
  • Carbide circular blade diameter : 760mm , 546mm
  • Log feeding : frequency auto feeding
Technical Parameter DS700 DS1300 DS2000
Max Sawing Wood Diameter 700MM 1300MM 2000MM
Max Sawing Wood Size 150*150MM 210 * 210MM 300*210MM
Saw Blade Diameter 2*424MM 2*546MM

1*760mm

1*546mm
Motors Power(KW)

11KW*2,

1.1KW*3

15KW*2,

1.5KW*3

22KW*1,

15KW*1

2.2KW*3
Max Swing Wood Length 6 Meters 6 Meters 6 Meters
Machine weight 1500KG 2000KG 3000KG

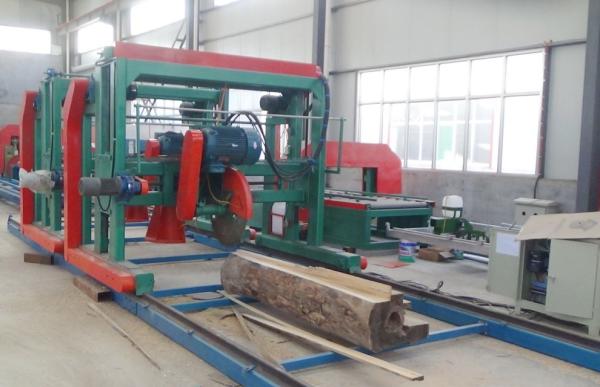

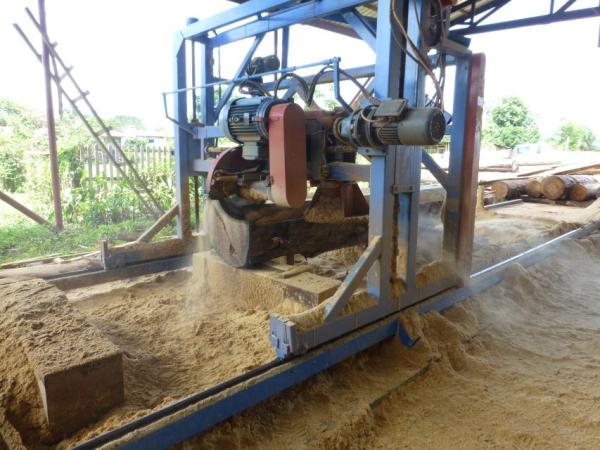

Photos:

Angle Swing Blade Saw Double Blades Circular Saw , Square Wood Cutting Circular Sawmill Machine

Hot Selling Products:

Twin blades sliding table sawmill

model TT1500 TT2000 TT3000
Cut log max. diameter 400mm 400mm 400mm
Cut length 1.5m 2m 3m
Blade diameter 500mm 500mm 500mm
Main Motor power 7.5KW*2 7.5KW X 2 sets 7.5KW X 2 sets
Track length 3000mm 5000mm 6000mm
Log clamping Pneumatic up/down Pneumatic up/down Pneumatic up/down
Carriage Rail Mode Linear Axis Linear Axis Linear Axis
Feeding mode Manual Manual Manual
Setting size mode Manual Manual Manual

TWIN BANDSAW FOR LOG EDGES CUTTING

Designed to receive logs and make two vertical cuts removing a slab from either side of the log.

· Ideal to cut pine, eucalyptus, and teak.

· High-precision cutting.

· Laterally-supported chain.

· High-production continuous feed system.

· Produces up to 4,000 m³ per month.

· Highly efficient use of wood, with the finest cut on the market.

· Motorization and control panel included.

· Automatic feed

Technical Specifications:

Technical data SLS350 SLS500
Maximum log diameter 350mm 500mm
Minimum log diameter 100mm 100mm
Wood length 1000 to 3000mm 1000 to 3000mm
Feed speed 9-25m/min (inverter) 9-25m/min (inverter)
Conveyor length 7000mm 3500mm x 2
Band wheel diameter 700mm 760mm
Width of saw blade 50-80mm 50-100mm
Length of saw blade 4850 5200mm
Thickness of saw blade 0.9mm 0.9mm
Saw motor 2x18.5kw 2x22kw
Feed motor 5.5kw 4kw x 2
Sawn sizing control Touching screen auto setworks Touching screen auto setworks

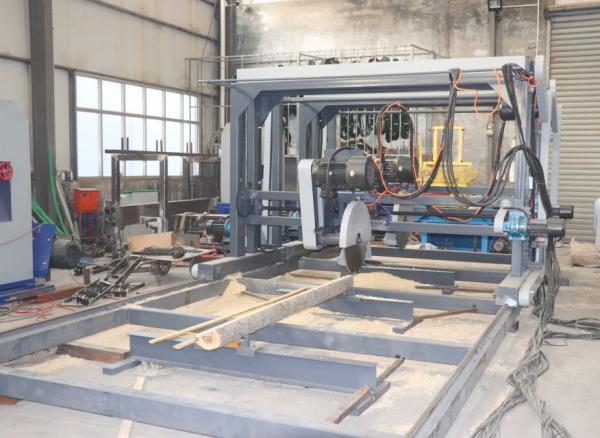

Photos

Angle Swing Blade Saw Double Blades Circular Saw , Square Wood Cutting Circular Sawmill Machine

Angle Swing Blade Saw Double Blades Circular Saw , Square Wood Cutting Circular Sawmill Machine
