Automatic Euro Block Wood Pallet Nailing Production Line Automated Line For European Pallet Making Machine
Automatic Euro Block Wood Pallet Nailing Production Line Automated Line For European Pallet Making Machine
Automatic Euro Block Wood Pallet Nailing Production Line Automated Line For European Pallet Making Machine
Automatic Euro Block Wood Pallet Nailing Production Line Automated Line For European Pallet Making Machine
Automatic Euro Block Wood Pallet Nailing Production Line Automated Line For European Pallet Making Machine
Automatic Euro Block Wood Pallet Nailing Production Line Automated Line For European Pallet Making Machine
Automatic Euro Block Wood Pallet Nailing Production Line Automated Line For European Pallet Making Machine
Automatic Euro Block Wood Pallet Nailing Production Line Automated Line For European Pallet Making Machine
Automatic Euro Block Wood Pallet Nailing Production Line Automated Line For European Pallet Making Machine
Automatic Euro Block Wood Pallet Nailing Production Line Automated Line For European Pallet Making Machine
Automatic Euro Block Wood Pallet Nailing Production Line Automated Line For European Pallet Making Machine
Automatic Euro Block Wood Pallet Nailing Production Line Automated Line For European Pallet Making Machine
Specifications
Brand Name :
SH
Model Number :
AEPN-1300
Certification :
ISO9001
Place of Origin :
Shandong Province, China
MOQ :
1 SET Wood Pallet Nailing Machine
Price :
US $4,800 - 21,500 / Set
Payment Terms :
T/T or L/C at sight, Western Union
Supply Ability :
1000sets/year
Delivery Time :
within 15 days
Packaging Details :
iron frame packings or luo packings
Name :
Wood Pallet Nailing Machine
Wood pallet length :
700-1300mm
Wood pallet width :
800-1300mm
Working mode :
Automatic feeding and stacking
Voltage and power :
220V/ 2kw Servo motor
Number of Coil Nail Guns :
3pcs or 4pcs
Air pressure :
0.8MPA
Nail gun speed :
7times/second
Production capacity :
1- 2tray/minute
Weight :
2000kg
Description

Machine to make wood pallets, Automatic Wood Pallet Nailing Machine for Euro trays

Automatic Euro Block Wood Pallet Nailing Production Line Automated Line For European Pallet Making Machine

Euro Pallet Automatic Wood Pallet Production Line

1. Euro Wood Pallet Pier Automatic Connecting Nailing Machine

​

Model SLDJ-1300-3
Block width 60-150mm
Board Length 600-1300mm
Nail gun CN70*3Stanley BOSTITCH Stitch CN70*3
Nailing method 1 nail, 2 nails, 3 nails, 4 nails, 5 nails
Air pressure 0.8MPA
Nail gun speed 4-8 s/time
Motor power 1.5KW Servomotor
Voltage 220V(Customized)
Operating mode Touch screen
Production mode Manual discharge/automatic pin pier

Automatic Euro Block Wood Pallet Nailing Production Line Automated Line For European Pallet Making Machine

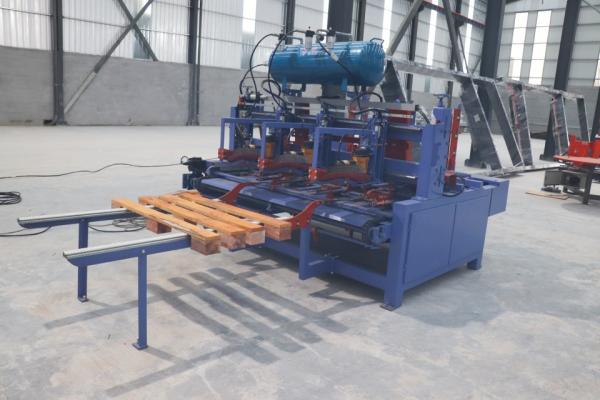

2.Automatic European pallet nailing machine

​

Model AEPN-1300
Wood pallet length 700-1300mm
Wood pallet width 800-1300mm
Working mode Automatic feeding and stacking
Operation mode Touch screen
Operational mode Pneumatic operation
Voltage and power 2kw Servo motor
Air pressure 0.8MPA
Nail gun speed 7 times /second.
Production effciency 1-2pcs /min
Number of nail guns 6P CN70,CN58
Weight 2000kg

Automatic Euro Block Wood Pallet Nailing Production Line Automated Line For European Pallet Making Machine

3.

Automatic Euro Block Wood Pallet Nailing Production Line Automated Line For European Pallet Making Machine

Automatic Euro Block Wood Pallet Nailing Production Line Automated Line For European Pallet Making Machine
Automatic Euro Block Wood Pallet Nailing Production Line Automated Line For European Pallet Making Machine
Related Products

Automatic Pallet Block Cutting Machine

  • Technical data
Model JD-1500
Cutting wood max. length 1500mm
Cutting Thickness 50-120mm
Cutting Width 60-200mm
Pallet foot pier size 30-200mm
Saw Diameter 400mm
Motor 7.5kw/3phase
Production capacity 1500-1800P/H
Weight 350kgs
  • Detailed Image

Automatic Euro Block Wood Pallet Nailing Production Line Automated Line For European Pallet Making Machine

Wood block multi-blade saw

  • Technical data
Model BM-1250
Cutting Length 1250mm
Cutting Thickness 100mm
Cutting Width 200mm
Saw Diameter 355mm
Motor 30kw
Weight 1600kg
  • Image

Automatic Euro Block Wood Pallet Nailing Production Line Automated Line For European Pallet Making Machine

Multi Blades Rip Saw

Automatic Euro Block Wood Pallet Nailing Production Line Automated Line For European Pallet Making Machine

Automatic Euro Block Wood Pallet Nailing Production Line Automated Line For European Pallet Making Machine
